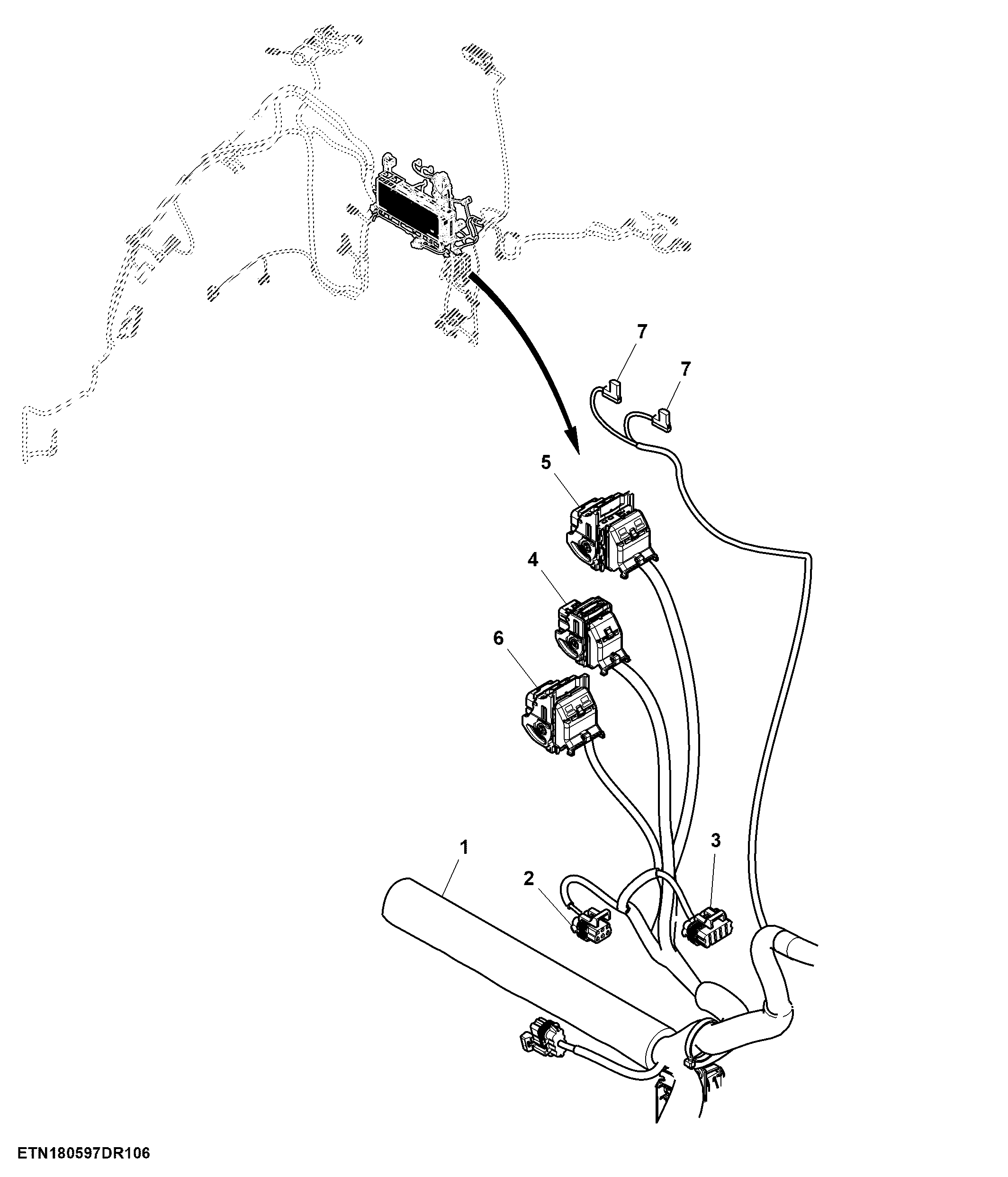

Wiring Harness, Cab, CommandQuad™, W/ CommandARM™ (6/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL234149	1	Wiring Harness	SUB FOR AL231848 AND AL230286
2	57M7260	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W411, X535F-2
2	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
2	57M7494	2	Elec. Connector Terminal	Cavity E, F
2	57M9215	3	Elec. Connector Seal	Cavity A, B, C
2	57M9214	2	Elec. Connector Seal	Cavity E, F
2	57M7259	1	Elec. Connector Seal	Cavity D
2	57M7291	1	Electrical Connector Assy	-
3	57M7281	1	Elec.Connect Locking Device	-
3	57M7258	1	Elec. Connector Seal	Cavity K
3	57M9214	1	Elec. Connector Seal	Cavity G
3	57M9215	8	Elec. Connector Seal	Cavity A, B, C, D, E, F, H, J
3	57M7494	1	Elec. Connector Terminal	Cavity G
3	57M10770	8	Elec. Connector Terminal	Cavity A, B, C, D, E, F, H, J
3	57M7262	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W411, X535F
3	57M9541	1	Elec. Connector Terminal	Cavity K
4	57M10334	3	Elec. Connector Cavity Plug	Cavity L1, L3, L4
4	57M13596	1	Elec. Connector Accessory	-
4	57M10613	1	Elec. Connector Housing	-
4	57M10333	8	Elec. Connector Cavity Plug	Cavity C1, C4, D1, D3, F2, F3, K3, K4
4	57M10331	5	Elec. Connector Terminal	Cavity L2, M1, M2, M3, M4
4	57M10330	18	Elec. Connector Terminal	Cavity A3, A4, B2, B3, B4, C2, C3, D2, D4, E3, G1, G3, G4, H3, J1, J3, J4, K2
4	57M10514	14	Elec. Connector Terminal	Cavity A1, A2, B1, E1, E2, E4, F1, F4, G2, H1, H2, H4, J2, K1
4	57M10615	1	Elec. Connector Housing	Connector 1 of Cab Control Unit, XA015F-1
5	57M10214	1	Elec. Connector Housing	Connector 2 of Cab Control Unit, XA015F-2
5	57M13596	1	Elec. Connector Accessory	-
5	57M10401	1	Elec. Connector Accessory	-
5	57M10333	17	Elec. Connector Cavity Plug	Cavity 8, 9, 10, 15, 21, 22, 23, 25, 27, 32, 35, 37, 38, 40, 49, 50, 51
5	57M11973	3	Elec. Connector Seal	Cavity 2, 3, 4
5	57M11959	2	Elec. Connector Seal	Cavity 1, 5
5	57M10514	20	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 19, 20, 24, 26, 33, 34, 36, 39, 43, 44, 45, 46, 47, 48, 52
5	57M10331	8	Elec. Connector Terminal	Cavity 6, 17, 18, 29, 30, 41, 42, 53
5	57M10217	3	Elec. Connector Terminal	Cavity 2, 3, 4
5	57M10332	2	Elec. Connector Terminal	Cavity 1, 5
5	57M10330	3	Elec. Connector Terminal	Cavity 16, 28, 31
6	57M10514	15	Elec. Connector Terminal	Cavity 8, 9, 13, 20, 21, 23, 25, 31, 32, 33, 34, 36, 43, 46, 48
6	57M13596	1	Elec. Connector Accessory	-
6	57M10401	1	Elec. Connector Accessory	-
6	57M10333	11	Elec. Connector Cavity Plug	Cavity 7, 12, 14, 15, 19, 22, 26, 40, 44, 45, 52
6	57M11959	1	Elec. Connector Seal	Cavity 2
6	57M11973	4	Elec. Connector Seal	Cavity 1, 3, 4, 5
6	57M10617	4	Elec. Connector Housing	Cavity 18, 29, 30, 53
6	57M10330	14	Elec. Connector Terminal	Cavity 10, 11, 16, 24, 27, 28, 35, 37, 38, 39, 47, 49, 50, 51
6	57M10331	4	Elec. Connector Terminal	Cavity 6, 17, 41, 42
6	57M10332	1	Elec. Connector Terminal	Cavity 2
6	57M10217	4	Elec. Connector Terminal	Cavity 1, 3, 4, 5
6	57M10329	1	Elec. Connector Housing	Connector 3 of Cab Control Unit, XA015F-3
7	57M7984	2	Elec. Connector Terminal	Rear Window Wiper Shut-Off Switch, XS020F-1, XS020F-2
7	57M8024	1	Elec. Connector Terminal	Cavity 1

Wiring Harness, Cab, CommandQuad™, W/ CommandARM™ (6/7)
