Wiring Harness, Cab, CommandQuad™, W/ CommandARM™ (2/7)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL234149	1	Wiring Harness	SUB FOR AL231848 AND AL230286
2	57M7254	1	Elec. Connector Housing	Connector for Accessories, Lead 0362, X037F
2	57M9541	2	Elec. Connector Terminal	Cavity A, B
2	57M7258	2	Elec. Connector Seal	Cavity A, B
2	57M7289	1	Elec.Connect Locking Device	-
3	57M7309	1	Elec. Connector Housing	Connector for Accessories, Lead 0372, X037F-3
3	57M7491	2	Elec. Connector Terminal	Cavity A, B
3	57M9219	2	Elec. Connector Seal	Cavity A, B
3	57M7306	1	Elec.Connect Locking Device	-
4	57M7400	3	Elec. Connector Seal	Cavity 57, 58, 61
4	57M13596	1	Elec. Connector Accessory	-
4	57M8738	1	Elec. Connector Accessory	-
4	57M7401	2	Elec. Connector Cavity Plug	Cavity 59, 60
4	57M7403	10	Elec. Connector Cavity Plug	Cavity 2, 5, 16, 18, 24, 25, 32, 33, 34, 36
4	57M7399	1	Elec. Connector Seal	Cavity 62
4	57M7402	23	Elec. Connector Cable Seal	Cavity 8, 9, 10, 11, 12, 14, 15, 19, 21, 23, 29, 30, 31, 35, 38, 41, 44, 45, 47, 49, 52, 53, 54
4	57M8241	23	Elec. Connector Terminal	Cavity 1, 3, 4, 6, 7, 13, 17, 20, 22, 26, 27, 28, 37, 39, 40, 42, 43, 46, 48, 50, 51, 55, 56
4	57M8585	1	Elec. Connector Terminal	Cavity 62
4	57M8584	3	Elec. Connector Terminal	Cavity 57, 58, 61
4	57M9161	43	Elec. Connector Terminal	Cavity 3, 4, 6, 7, 8, 9, 10, 11, 12, 14, 15, 17, 19, 20, 21, 22, 23, 26, 27, 28, 29, 30, 31, 35, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55
4	57M10715	3	Elec. Connector Terminal	Cavity 1, 13, 56
4	57M8730	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W21X, X780F
5	57M8070	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W23X, X202M-1
5	57M9042	14	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 11, 12, 13, 16, 17, 18, 20, 21, 22
5	57M7400	14	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 11, 12, 13, 16, 17, 18, 20, 21, 22
5	57M7399	2	Elec. Connector Seal	Cavity 23, 24
5	57M8084	1	Elec. Connector Accessory	-
5	57M8076	1	Elec. Connector Terminal	-
6	57M7175	1	Elec. Connector Terminal	Ground Point, XGND1A
7	57M7081	1	Elec. Connector Terminal	Ground Point, XGND5A
8	57M7399	1	Elec. Connector Seal	Cavity 10
8	57M8084	1	Elec. Connector Accessory	-
8	57M9532	19	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, 17, 19, 20, 21
8	57M8941	1	Elec. Connector Terminal	Cavity 10
8	57M8073	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W204 and W251, X200F-2
8	57M7400	19	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, 17, 19, 20, 21
9	57M8072	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W204 and W251, X200F-1
9	57M9532	14	Elec. Connector Terminal	Cavity 2, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
9	57M7400	14	Elec. Connector Seal	Cavity 2, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
9	57M8083	1	Elec. Connector Accessory	-
10	R78061	1	Elec. Connector Terminal	Cavity B
10	57M9219	2	Elec. Connector Seal	Cavity A, B
10	57M9545	1	Elec. Connector Terminal	Cavity A
10	R78053	1	Electrical Connector Assy	Backup Alarm, XH067M
11	57M7254	1	Elec. Connector Housing	Right Worklight on Rear Fender, XE015F-R
11	57M9541	2	Elec. Connector Terminal	Cavity A, B
11	57M7258	2	Elec. Connector Seal	Cavity A, B
11	57M7289	1	Elec.Connect Locking Device	-
12	57M7349	1	Elec. Connector Accessory	Left Tail Light, XE022F-R
12	57M7347	1	Elec. Connector Accessory	-
12	57M9215	3	Elec. Connector Seal	Cavity B, C, D
12	57M7258	1	Elec. Connector Seal	Cavity A
12	57M10770	3	Elec. Connector Terminal	Cavity B, C, D
12	57M9541	1	Elec. Connector Terminal	Cavity A
13	57M7687	1	Elec. Connector Housing	Right Remote Control Switch for Rear PTO, XS121F-1
13	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
13	57M9215	3	Elec. Connector Seal	Cavity A, B, C
13	57M7290	1	Elec. Connector Accessory	-
13	57M7918	1	Elec. Connector Housing	-
14	57M7260	1	Elec. Connector Housing	Right Remote Control Switch for Rear Hitch, XS023F-1
14	57M7494	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
14	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
14	57M7291	1	Electrical Connector Assy	-

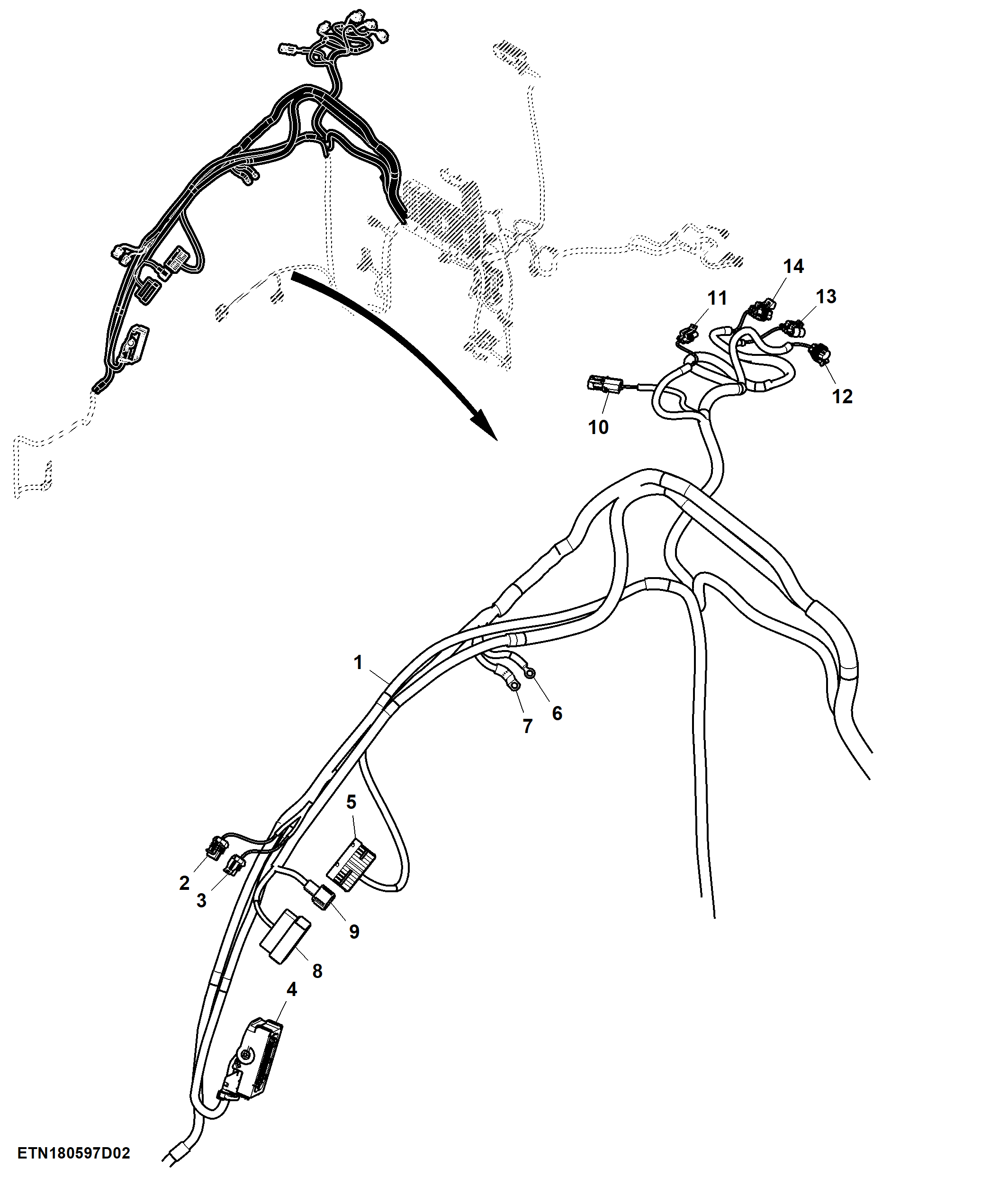

Wiring Harness, Cab, CommandQuad™, W/ CommandARM™ (2/7)
