Открытый узел

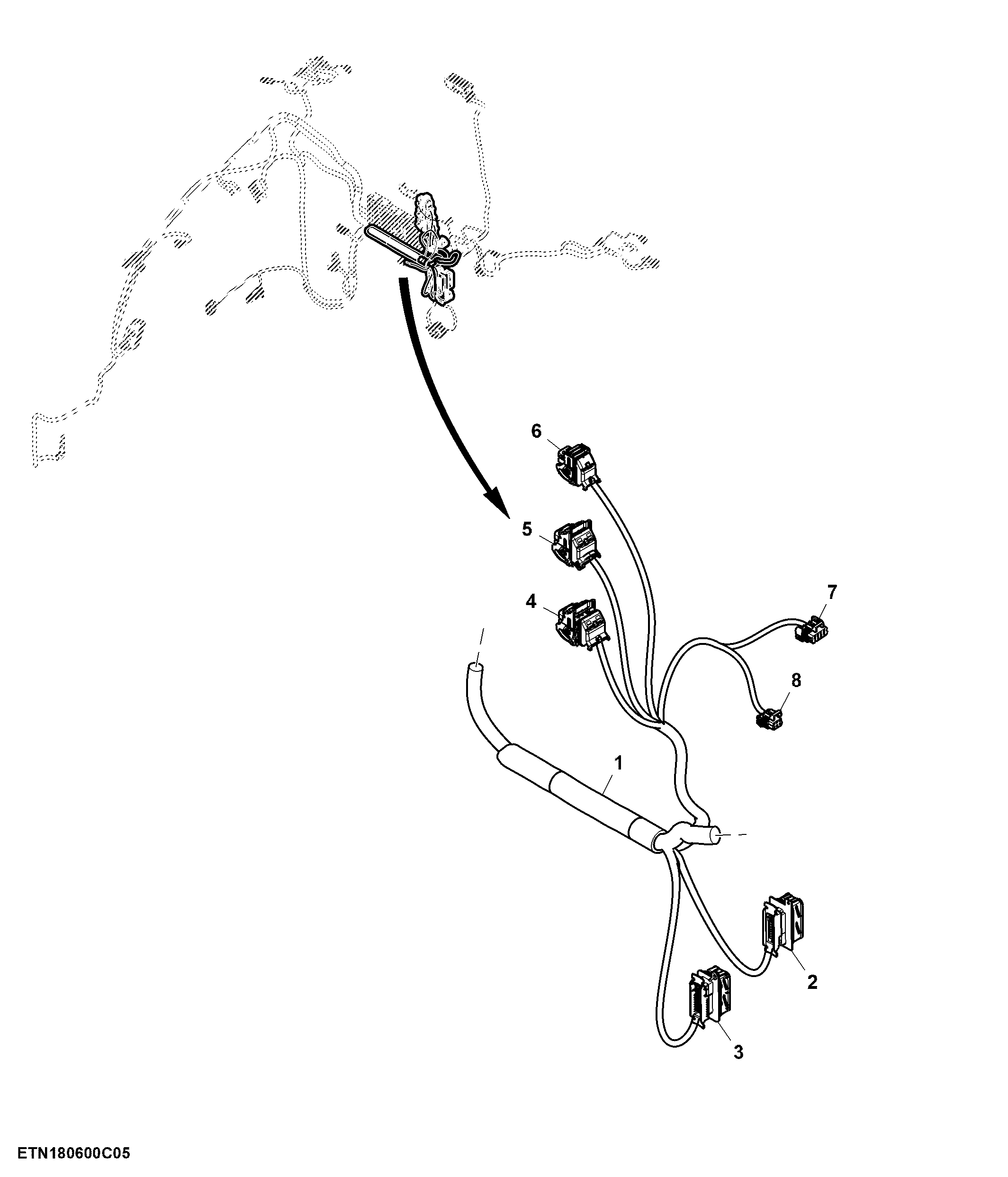

Wiring Harness, Cab, AutoPowr™ / IVT™, W/O Compact CommandARM™ (5/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL234152	1	Wiring Harness	SUB FOR AL233142 AND AL230385
2	57M8199	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W60X and W20X, X430M
2	57M7402	8	Elec. Connector Cable Seal	Cavity 12, 13, 23, 28, 29, 30, 36, 42
2	57M8241	12	Elec. Connector Terminal	Cavity 10, 11, 15, 18, 24, 25, 26, 27, 37, 38, 40, 41
2	57M7399	2	Elec. Connector Seal	Cavity 4, 5
2	57M7400	4	Elec. Connector Seal	Cavity 3, 6, 7, 8
2	57M11944	1	Elec. Connector Seal	Cavity 2
2	57M9041	19	Elec. Connector Terminal	Cavity 10, 11, 12, 13, 15, 18, 23, 24, 26, 27, 28, 29, 30, 36, 37, 38, 40, 41, 42
2	57M9158	2	Elec. Connector Terminal	Cavity 4, 5
2	57M9042	4	Elec. Connector Terminal	Cavity 3, 6, 7, 8
2	57M9573	1	Elec. Connector Terminal	Cavity 2
2	57M13596	1	Elec. Connector Accessory	-
2	57M8098	1	Elec. Connector Terminal	-
2	57M8096	1	Retainer	-
3	57M7400	5	Elec. Connector Seal	Cavity 3, 4, 6, 7, 8
3	57M7402	9	Elec. Connector Cable Seal	Cavity 18, 19, 20, 21, 31, 38, 40, 41, 42
3	57M8241	19	Elec. Connector Terminal	Cavity 9, 10, 11, 12, 13, 14, 15, 17, 22, 23, 24, 25, 29, 30, 32, 33, 34, 37, 39
3	57M9041	27	Elec. Connector Terminal	Cavity 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 20, 21, 22, 23, 25, 29, 30, 31, 32, 33, 34, 37, 38, 39, 40, 41, 42
3	57M13596	1	Elec. Connector Accessory	-
3	57M8167	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W60X and W20X, X500M
3	57M8098	1	Elec. Connector Terminal	-
3	57M8096	1	Retainer	-
3	57M9042	5	Elec. Connector Terminal	Cavity 3, 4, 6, 7, 8
4	57M10514	13	Elec. Connector Terminal	Cavity 8, 9, 20, 21, 23, 31, 32, 33, 34, 36, 43, 46, 48
4	57M10333	13	Elec. Connector Cavity Plug	Cavity 7, 12, 13, 14, 15, 19, 22, 25, 26, 40, 44, 45, 52
4	57M11959	1	Elec. Connector Seal	Cavity 2
4	57M11973	4	Elec. Connector Seal	Cavity 1, 3, 4, 5
4	57M10617	4	Elec. Connector Housing	Cavity 18, 29, 30, 53
4	57M10330	14	Elec. Connector Terminal	Cavity 10, 11, 16, 24, 27, 28, 35, 37, 38, 39, 47, 49, 50, 51
4	57M10331	4	Elec. Connector Terminal	Cavity 6, 17, 41, 42
4	57M10332	1	Elec. Connector Terminal	Cavity 2
4	57M10217	4	Elec. Connector Terminal	Cavity 1, 3, 4, 5
4	57M13596	1	Elec. Connector Accessory	-
4	57M10401	1	Elec. Connector Accessory	-
4	57M10329	1	Elec. Connector Housing	Cab Control Unit, XA015F-3
5	57M10214	1	Elec. Connector Housing	Cab Control Unit, XA015F-2
5	57M10334	5	Elec. Connector Cavity Plug	Cavity 17, 18, 29, 30, 42
5	57M10333	11	Elec. Connector Cavity Plug	Cavity 9, 11, 12, 13, 14, 15, 22, 24, 26, 27, 51
5	57M11973	3	Elec. Connector Seal	Cavity 2, 3, 4
5	57M11959	2	Elec. Connector Seal	Cavity 1, 5
5	57M10330	6	Elec. Connector Terminal	Cavity 16, 28, 31, 38, 40, 50
5	57M10331	3	Elec. Connector Terminal	Cavity 6, 41, 53
5	57M10217	3	Elec. Connector Terminal	Cavity 2, 3, 4
5	57M10332	2	Elec. Connector Terminal	Cavity 1, 5
5	57M13596	1	Elec. Connector Accessory	-
5	57M10401	1	Elec. Connector Accessory	-
5	57M10514	23	Elec. Connector Terminal	Cavity 7, 8, 10, 19, 20, 21, 23, 25, 32, 33, 34, 35, 36, 37, 39, 43, 44, 45, 46, 47, 48, 49, 52
6	57M10514	14	Elec. Connector Terminal	Cavity A1, A2, B1, E1, E2, E4, F1, F4, G2, H1, H2, H4, J2, K1
6	57M10334	3	Elec. Connector Cavity Plug	Cavity L1, L3, L4
6	57M10333	9	Elec. Connector Cavity Plug	Cavity C1, C2, C4, D1, D3, F2, F3, K3, K4
6	57M10331	5	Elec. Connector Terminal	Cavity L2, M1, M2, M3, M4
6	57M10330	17	Elec. Connector Terminal	Cavity A3, A4, B2, B3, B4, C3, D2, D4, E3, G1, G3, G4, H3, J1, J3, J4, K2
6	57M13596	1	Elec. Connector Accessory	-
6	57M10613	1	Elec. Connector Housing	-
6	57M10615	1	Elec. Connector Housing	Cab Control Unit, XA015F-1
7	57M7262	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W411, X535F
7	57M7258	1	Elec. Connector Seal	Cavity K
7	57M9214	1	Elec. Connector Seal	Cavity G
7	57M9215	8	Elec. Connector Seal	Cavity A, B, C, D, E, F, H, J
7	57M9541	1	Elec. Connector Terminal	Cavity K
7	57M7494	1	Elec. Connector Terminal	Cavity G
7	R104846	8	Elec. Connector Terminal	Cavity A, B, C, D, E, F, H, J
7	57M7281	1	Elec.Connect Locking Device	-
8	57M7260	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W411, X535F-2
8	57M7291	1	Electrical Connector Assy	-
8	R104846	3	Elec. Connector Terminal	Cavity A, B, C
8	57M7494	2	Elec. Connector Terminal	Cavity E, F
8	57M9215	3	Elec. Connector Seal	Cavity A, B, C
8	57M9214	2	Elec. Connector Seal	Cavity E, F
8	57M7259	1	Elec. Connector Seal	Cavity D

Wiring Harness, Cab, AutoPowr™ / IVT™, W/O Compact CommandARM™ (5/6)

Нет текстового описания
