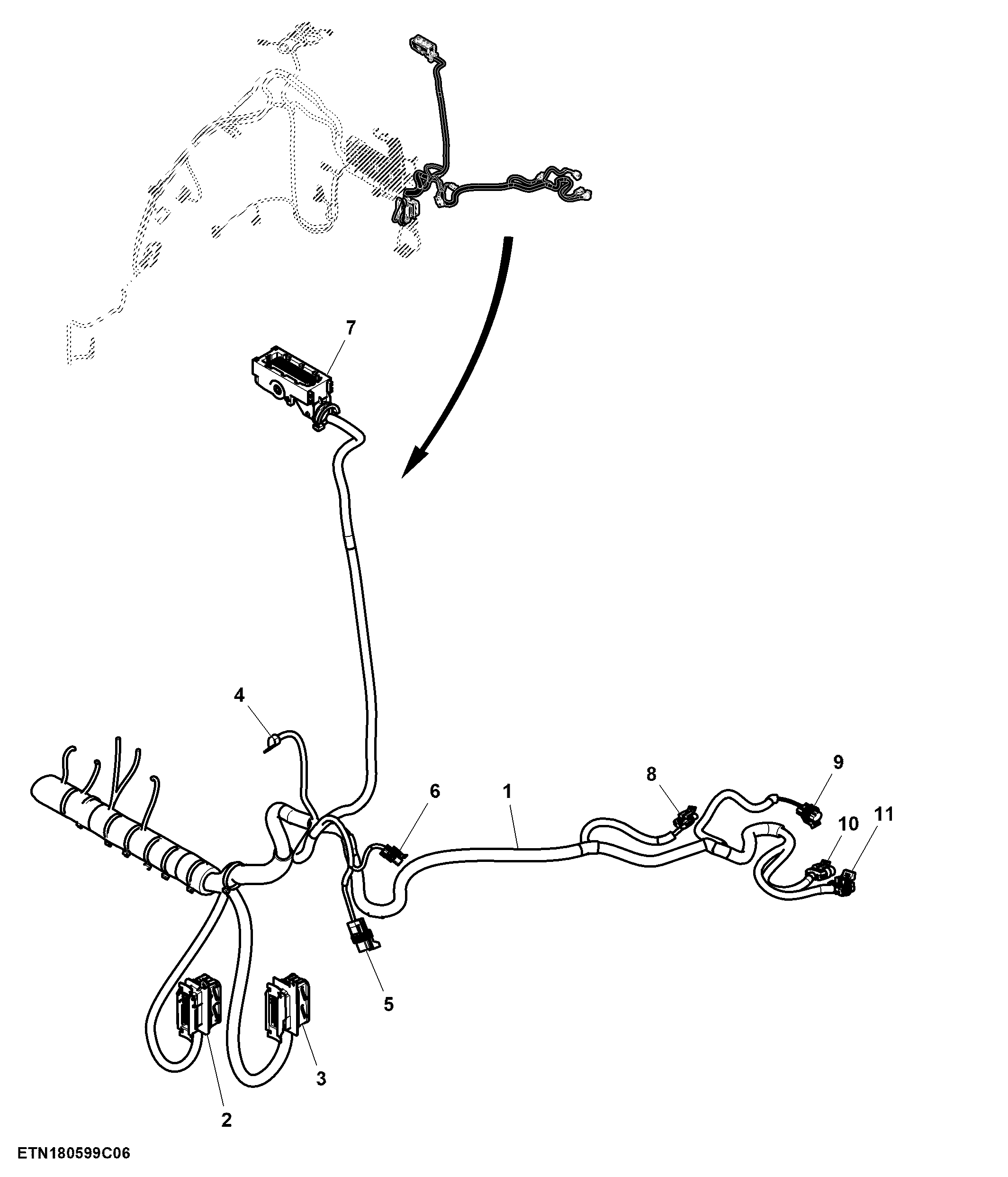

Wiring Harness, Cab, AutoPowr™ / IVT™, W/ Compact CommandARM™ (6/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL234151	1	Wiring Harness	SUB FOR AL230384
2	57M8167	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W60X and W20X, X500M
2	57M7402	9	Elec. Connector Cable Seal	Cavity 18, 19, 20, 21, 31, 38, 40, 41, 42
2	57M8241	19	Elec. Connector Terminal	Cavity 9, 10, 11, 12, 13, 14, 15, 17, 22, 23, 24, 25, 29, 30, 32, 33, 34, 37, 39
2	57M7400	5	Elec. Connector Seal	Cavity 3, 4, 6, 7, 8
2	57M9041	27	Elec. Connector Terminal	Cavity 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 20, 21, 22, 23, 25, 29, 30, 31, 32, 33, 34, 37, 38, 39, 40, 41, 42
2	57M13596	1	Elec. Connector Accessory	-
2	57M8098	1	Elec. Connector Terminal	-
2	57M8096	1	Retainer	-
2	57M9042	5	Elec. Connector Terminal	Cavity 3, 4, 6, 7, 8
3	57M7400	4	Elec. Connector Seal	Cavity 3, 6, 7, 8
3	57M7402	8	Elec. Connector Cable Seal	Cavity 12, 13, 23, 28, 29, 30, 36, 42
3	57M8241	12	Elec. Connector Terminal	Cavity 10, 11, 15, 18, 24, 25, 26, 27, 37, 38, 40, 41
3	57M7399	2	Elec. Connector Seal	Cavity 4, 5
3	57M11944	1	Elec. Connector Seal	Cavity 2
3	57M9041	19	Elec. Connector Terminal	Cavity 10, 11, 12, 13, 15, 18, 23, 24, 26, 27, 28, 29, 30, 36, 37, 38, 40, 41, 42
3	57M9158	2	Elec. Connector Terminal	Cavity 4, 5
3	57M9042	4	Elec. Connector Terminal	Cavity 3, 6, 7, 8
3	57M9573	1	Elec. Connector Terminal	Cavity 2
3	57M13596	1	Elec. Connector Accessory	-
3	57M8098	1	Elec. Connector Terminal	-
3	57M8096	1	Retainer	-
3	57M8199	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W60X and W20X, X430M
4	57M7081	1	Elec. Connector Terminal	Ground Point, XGND43A
5	57M7280	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W020 or W021, X1308F-1
5	57M7274	1	Elec. Connector Accessory	-
5	57M7491	2	Elec. Connector Terminal	Cavity A, B
5	57M7299	1	Elec. Connector Terminal	Cavity C
5	57M9218	2	Elec. Connector Seal	Cavity A, B
5	57M9217	1	Elec. Connector Seal	Cavity C
6	57M9215	2	Elec. Connector Seal	Cavity A, B
6	57M10770	2	Elec. Connector Terminal	Cavity A, B
6	57M7254	1	Elec. Connector Housing	Electrical Cooling Compartment, XA077F
6	57M7289	1	Elec.Connect Locking Device	-
7	57M8730	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W22X, X781F
7	57M13596	1	Elec. Connector Accessory	-
7	57M10715	6	Elec. Connector Terminal	Cavity 1, 7, 8, 24, 25, 48
7	57M9161	26	Elec. Connector Terminal	Cavity 3, 4, 5, 6, 11, 12, 13, 14, 15, 18, 19, 20, 21, 22, 26, 27, 28, 29, 34, 38, 39, 41, 45, 47, 50, 55
7	57M10557	2	Elec. Connector Terminal	Cavity 31, 32
7	57M8584	1	Elec. Connector Terminal	Cavity 61
7	57M8241	30	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8, 11, 12, 13, 14, 15, 18, 19, 20, 21, 22, 24, 25, 28, 29, 34, 38, 39, 41, 45, 47, 48, 50, 55
7	57M7402	4	Elec. Connector Cable Seal	Cavity 26, 27, 31, 32
7	57M7400	1	Elec. Connector Seal	Cavity 61
7	57M7403	22	Elec. Connector Cavity Plug	Cavity 2, 9, 10, 16, 17, 23, 30, 33, 35, 36, 37, 40, 42, 43, 44, 46, 49, 51, 52, 53, 54, 56
7	57M7401	5	Elec. Connector Cavity Plug	Cavity 57, 58, 59, 60, 62
8	57M7258	2	Elec. Connector Seal	Cavity A, B
8	57M9541	2	Elec. Connector Terminal	Cavity A, B
8	57M7254	1	Elec. Connector Housing	Rear Fender Worklight, LH, XE015F-L
8	57M7289	1	Elec.Connect Locking Device	-
9	57M7349	1	Elec. Connector Accessory	Tail Light, LH, XE022F-L
9	57M7347	1	Elec. Connector Accessory	-
9	57M9541	1	Elec. Connector Terminal	Cavity A
9	57M10770	3	Elec. Connector Terminal	Cavity B, C, D
9	57M7258	1	Elec. Connector Seal	Cavity A
9	57M9215	3	Elec. Connector Seal	Cavity B, C, D
10	57M7687	1	Elec. Connector Housing	Remote Control Switch for Rear PTO, LH, XS044F-1
10	57M9215	3	Elec. Connector Seal	Cavity A, B, C
10	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
10	57M7918	1	Elec. Connector Housing	-
10	57M7290	1	Elec. Connector Accessory	-
11	57M7260	1	Elec. Connector Housing	Left Remote Control Switch for Rear Hitch, XS068F-1
11	57M7291	1	Electrical Connector Assy	-
11	57M7494	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
11	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
