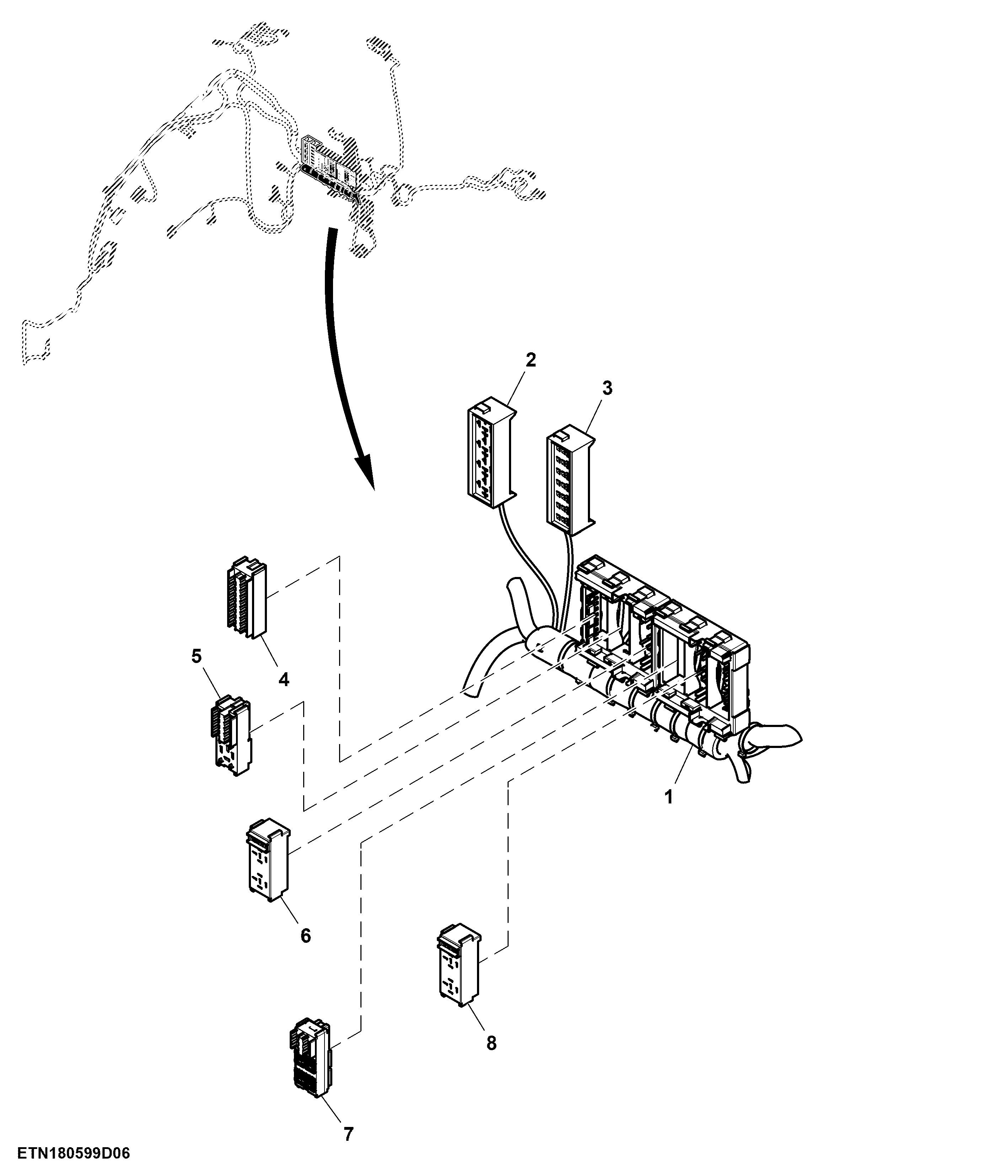

Wiring Harness, Cab, AutoPowr™ / IVT™, W/ Compact CommandARM™ (4/6)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL234151	1	Wiring Harness	SUB FOR AL230384
2	57M8053	1	Elec. Connector Housing	Relay LCS, LCS-K01
2	57M8055	4	Elec. Connector Terminal	Cavity 1_30, 1_87, 2_30, 2_87
2	57M8054	7	Elec. Connector Terminal	Cavity 1_86, 1_85, 2_86, 2_85, 3_86, 3_85, 4_87
2	57M7103	1	Elec. Connector Terminal	Cavity 4_86
3	57M8050	1	Elec. Connector Housing	Relays and Diodes LCS, LCS-K02
3	57M8179	14	Elec. Connector Terminal	Cavity 1_30, 1_87, 2_30, 2_87, 3_30, 3_87, 4_30, 4_87, 5_30, 5_87, 6_30, 6_87, 7_30, 7_87
3	57M8178	12	Elec. Connector Terminal	Cavity 1_86, 1_85, 2_86, 2_85, 3_86, 3_85, 4_86, 4_85, 5_86, 5_85, 6_86, 6_85
4	57M8163	1	Fuse	30 A
4	57M7691	1	Fuse	20 A
4	57M7690	1	Fuse	15 A
4	57M7689	1	Fuse	10A
4	57M9672	6	Elec. Connector Terminal	Cavity 03_1, 06_1, 09_1, 15_1, 17_1, 19_1
4	57M9056	19	Elec. Connector Terminal	Cavity 01_2, 02_2, 03_2, 04_2, 05_2, 06_2, 07_2, 08_2, 09_2, 10_2, 11_2, 12_2, 13_2, 15_2, 16_2, 17_2, 18_2, 19_2, 20_2
4	57M9057	6	Elec. Connector Terminal	Cavity 01_1, 02_1, 07_1, 11_1, 12_1, 13_1
4	57M9082	1	Elec. Connector Housing	Fuses LCS, LCS-F03
4	57M7688	2	Fuse	5 A
5	57M9049	1	Elec. Connector Housing	Fuses LCS, LCS-F04
5	57M9057	2	Elec. Connector Terminal	Cavity 01_1, 05_1
5	57M9056	7	Elec. Connector Terminal	Cavity 01_2, 02_2, 03_2, 04_2, 05_2, 09_2, 10_2
5	57M9672	3	Elec. Connector Terminal	Cavity 03_1, 07_1, 09_1
5	57M9055	1	Elec. Connector Terminal	Cavity 07_2
6	57M12292	1	Elec. Connector Housing	Fuses and Relays LCS, LCS-K05
6	57M9057	2	Elec. Connector Terminal	Cavity 5, 6
7	57M9400	1	Elec. Connector Housing	Fuses and Relays LCS, LCS-F06
7	57M7439	7	Elec. Connector Terminal	Cavity A_30, A_87, B_87, C_30, C_87, D_30, D_87
7	57M9050	8	Elec. Connector Terminal	Cavity A_85, A_86, B_85, B_86, C_85, C_86, D_85, D_86
7	57M9057	6	Elec. Connector Terminal	Cavity A_1, B_1, D_1, E_1, E_2, F_1
7	57M9056	4	Elec. Connector Terminal	Cavity A_2, B_2, D_2, F_2
7	57M7440	1	Elec. Connector Terminal	Cavity B_30
8	57M12292	1	Elec. Connector Housing	Fuses and Relays LCS, LCS-K07
8	57M9057	2	Elec. Connector Terminal	Cavity 1, 4
8	57M9056	2	Elec. Connector Terminal	Cavity 5, 8

Wiring Harness, Cab, AutoPowr™ / IVT™, W/ Compact CommandARM™ (4/6)
