Большое обновление пильных узлов

Смотреть

Тип техники

Бренд

Машина

Большое обновление пильных узлов

Смотреть

Открытый узел

Switch / Remote Control, W/ Rear Hitch Control, W/ Rear PTO Control, W/ Rear SCV Control

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7077	9	Cap Screw	M6 X 20
2	37M7269	18	Screw	-
3	37M7286	8	Screw	-
4	37M7411	18	Screw	-
5	AL208892	2	Switch	Rear PTO Switch
6	57M7263	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W271, X795M
6	57M7252	5	Elec. Connector Terminal	Cavity A, B, C, E, F
6	57M9215	5	Elec. Connector Seal	Cavity A, B, C, E, F
6	57M7259	1	Elec. Connector Seal	Cavity D
6	57M7291	1	Electrical Connector Assy	-
6	57M14238	1	Elec. Connector Accessory	-
7	19M7862	2	Screw	M6 X 20
8	AL172871	4	Control	-
9	L168608	4	Clip	-
10	AL81777	8	Elec. Connector Terminal	-
11	37M7235	4	Screw	-
12	AL174449	2	Wiring Harness	-
13	57M7259	1	Elec. Connector Seal	-
13	57M7252	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
13	57M7493	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
13	57M7263	2	Elec. Connector Housing	Connection point on wiring harness W284, X747M
14	57M7742	2	Elec. Connector Housing	Connection point on wiring harness W282, X174M
14	57M7938	1	Elec. Connector Terminal	Cavity 1
14	57M7743	1	Elec. Connector Cable Seal	-
15	57M7260	2	Elec. Connector Housing	Connector of Left Remote Control Switch for Rear Hitch, X747F-1
15	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
15	57M7493	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
15	57M7259	1	Elec. Connector Seal	-
16	57M7687	2	Elec. Connector Housing	Connector of Left Remote Control Switch for Rear PTO, X174F
16	R104846	3	Elec. Connector Terminal	Cavity A, B, C
16	57M7493	1	Elec. Connector Seal	Cavity A
16	57M9214	2	Elec. Connector Seal	Cavity B, C
16	57M7259	1	Elec. Connector Seal	-
17	L170404	1	Housing	LH
18	L170405	1	Housing	LH
19	L170408	1	Adapter Fitting	LH
20	L170409	1	Adapter Fitting	LH
21	L170410	1	Adapter Fitting	LH
22	L170411	1	Adapter Fitting	LH
23	L170420	1	Cover	LH
24	L174213	2	Boot	-
25	L169912	2	Boot	-
26	R234273	4	Frame	-
27	L170412	1	Housing	RH
28	L170413	1	Housing	RH
29	L170416	1	Adapter Fitting	RH
30	L170417	1	Adapter Fitting	RH
31	L170418	1	Adapter Fitting	RH
32	L170419	1	Adapter Fitting	RH
33	L170421	1	Cover	RH
34	14M7272	1	Nut	M6
35	14M7303	8	Flange Nut	M6
36	AL229360	1	Wiring Harness	-
37	57M7260	2	Elec. Connector Housing	Connection Point between Wiring Harnesses W271 and W272, XS134F-1,XS152F-1
37	57M10770	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
37	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
37	57M7291	1	Electrical Connector Assy	-
38	57M7263	2	Elec. Connector Housing	Connection point on wiring harness W283, X35M
38	57M7252	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
38	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
38	57M7259	1	Elec. Connector Seal	-
39	57M7260	2	Elec. Connector Housing	Connector of Left Remote Control Switch for Rear Hitch, X35F-1
39	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
39	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
39	57M7259	1	Elec. Connector Seal	-
40	L225443	2	Grommet	-

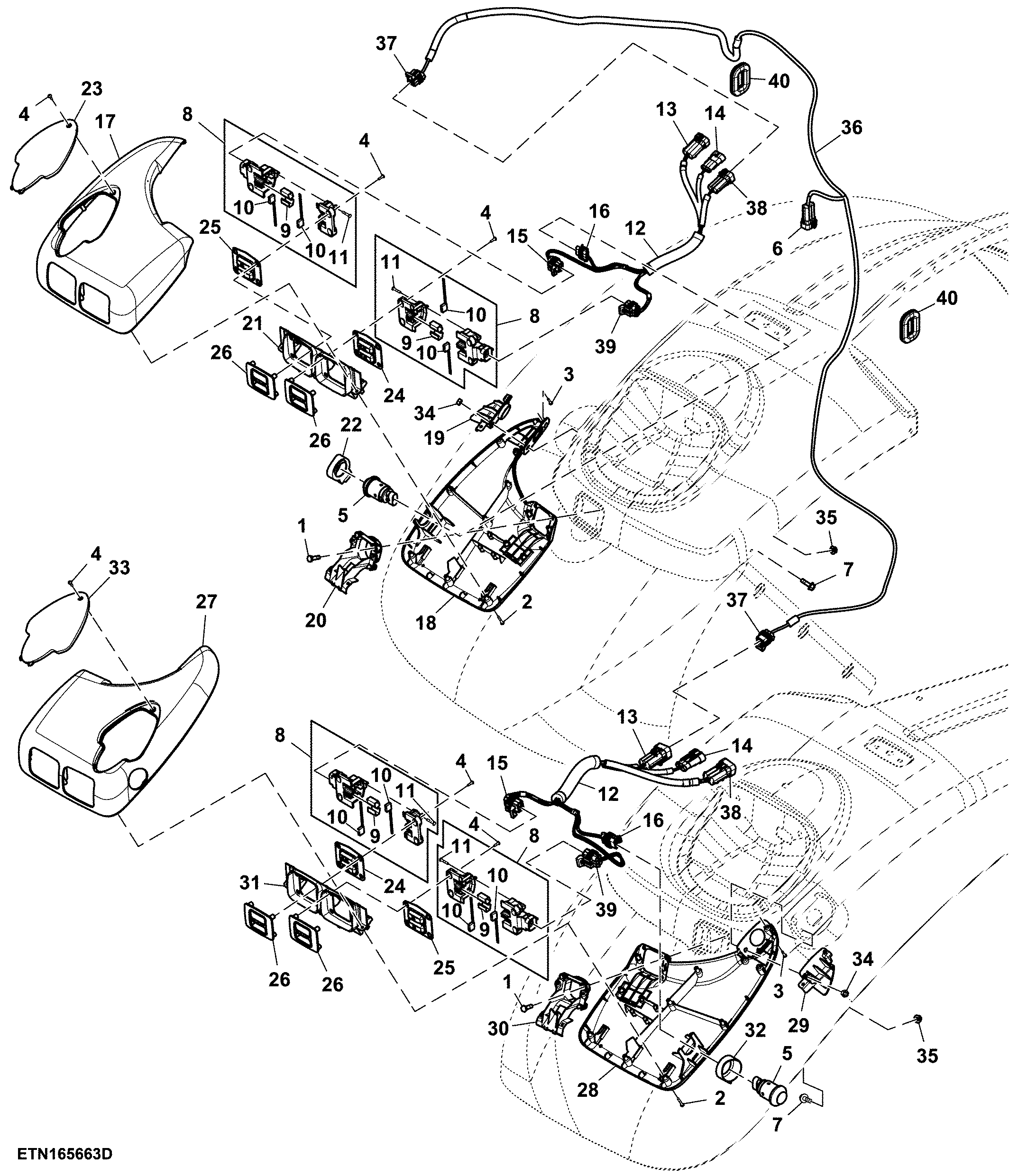

Switch / Remote Control, W/ Rear Hitch Control, W/ Rear PTO Control, W/ Rear SCV Control
