Открытый узел

Range Shift / Speed Control, W/ 5-Range, CommandQuad™, W/ Armrest

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L153920	1	Bolt	-
2	24M7138	4	Washer	5.300 X 15 X 1 mm
3	L172904	1	Panel	-
4	37M7342	2	Screw	-
5	AL228022	1	Control	-
6	24M7117	1	Washer	4.300 X 9 X 0.800 mm
7	R121919	1	Pin	-
8	R134449	1	Spring	-
9	R113246	3	Screw	-
10	R123999	1	Pivot	-
11	R569617	1	Spring	SUB FOR R124241 APPL
12	R40687	2	Snap Ring	-
13	R275315	1	Pin	-
14	R557168	1	Shield	-
15	R72654	1	Snap Ring	-
16	R124711	1	Spring	-
17	RE311400	1	Sector	-
18	R558740	1	Cover	-
19	AL228068	1	Circuit Board	-
20	57M8069	1	Elec. Connector Housing	-
21	L116147	1	Cover	-
22	AL221876	1	Encoder	-
23	L172905	1	Knob	-
24	37M7345	1	Screw	-
25	37M7340	6	Bolt	-
26	L173383	1	Bushing	-
27	19M8825	1	Screw	M3 X 10
28	L201946	1	Guide	-
29	L172853	2	Bolt	-
30	AL159617	1	Control	-
31	R124873	1	Spring	-
32	21M7477	2	Screw	M4 X 40
33	19M7318	1	Screw	M6 X 30
34	14M7264	2	Lock Nut	M4
35	14M7165	1	Lock Nut	M6
36	R160970	1	Bracket	-
37	R112513	1	Washer	-
38	R110682	1	Lever	-
39	AL175214	1	Sensor	Hand Throttle Potentiometer
40	R122339	2	Washer	-
41	L156559	1	Gear	Z = 40
42	37M7251	1	Screw	-
43	L114994	1	Strap	-
44	L116148	1	Spacer	-
45	L172903	1	Strap	-
46	37M7341	2	Screw	-
47	R556613	1	Knob	-
48	AL230831	1	Control	SUB FOR AL221877
49	AL215847	1	Toggle/Rocker Switch	Gear Selector Switch
50	57M8068	1	Elec. Connector Housing	-
51	57M7254	1	Elec. Connector Housing	-
51	57M9712	1	Elec. Connector Accessory	-
51	R104846	2	Elec. Connector Terminal	-
51	57M7258	1	Elec. Connector Seal	-

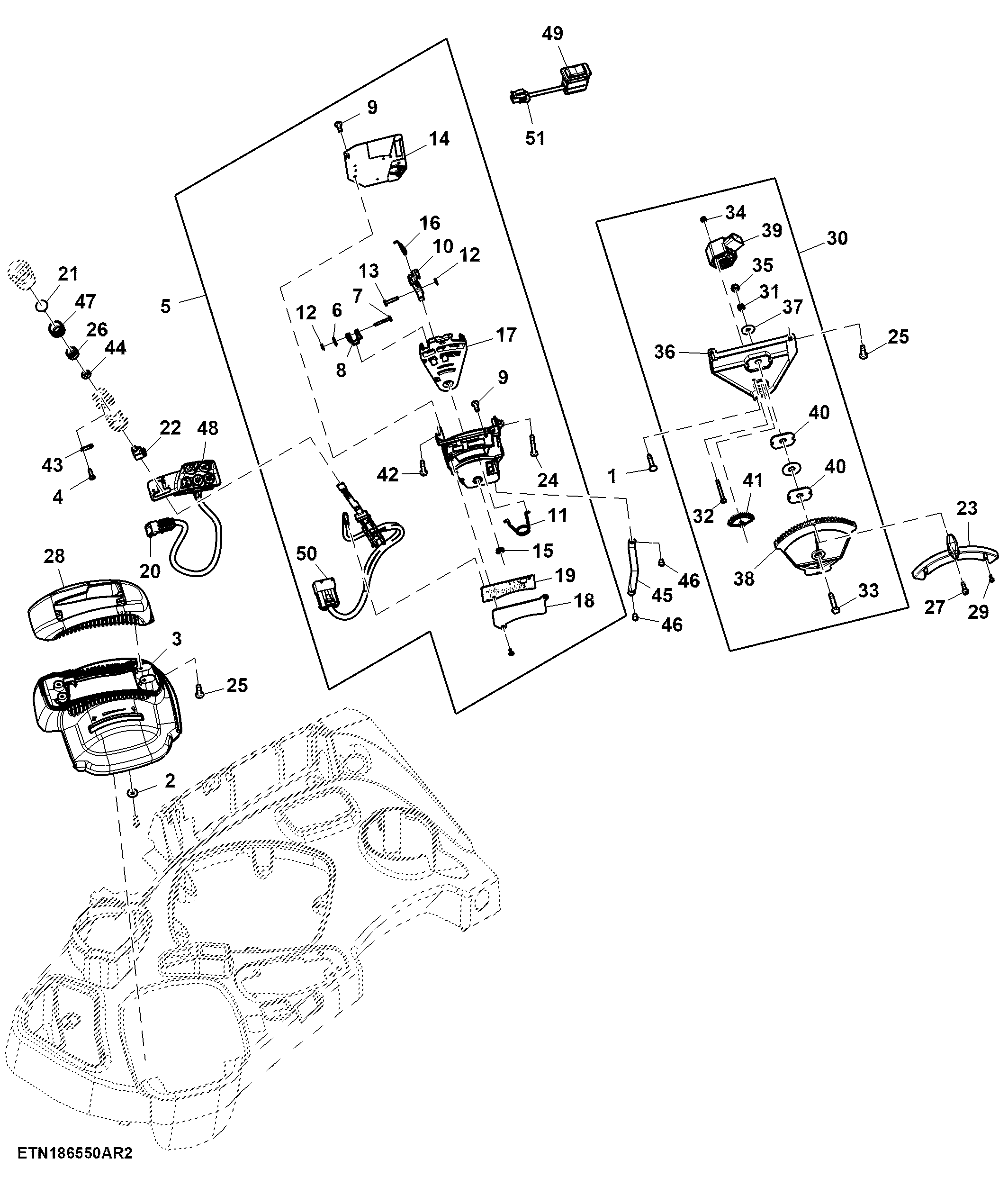

Range Shift / Speed Control, W/ 5-Range, CommandQuad™, W/ Armrest
