Oil Supply Lines, Midstack SCV, W/ PFC-Hydraulics, Attachmnent

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL16307	1	Oil Line	-
2	51M7041	2	O-Ring	11.300 X 2.200 mm
3	T77613	1	O-Ring	-
4	AL168499	1	Fitting	-
5	51M7051	1	O-Ring	26.600 X 2.900 mm
6	51M7098	3	O-Ring	22 X 2 mm
7	51M7099	4	O-Ring	25 X 2.200 mm
8	T77858	1	O-Ring	-
9	AL211564	1	Hose	MARKED AL211564
10	AL213333	2	Clamp	-
11	L222692	1	Bracket	-
12	L167158	1	Clamp	-
13	AL232991	1	Hydraulic Hose	LGTH = 460 mm, SUB FOR APPL AL227621
14	AL232261	1	Fitting	SUB FOR APPL AL227628
15	14M7296	6	Flange Nut	M10
16	L219453	2	Tie Band	-
17	AL155400	1	Fitting	-
18	51M7047	2	O-Ring	23.600 X 2.900 mm
19	51M7102	1	O-Ring	20 X 2 mm
20	L157513	4	Clamp	-
21	AL228580	1	Oil Line	Oil Line ICV
22	AL228581	1	Oil Line	Oil Line ICV
23	AL215688	1	Hydraulic Hose	LGTH = 781 mm, MARKED AL215688
24	L170901	1	Hose Guard	-
25	AL215627	1	Hydraulic Hose	LGTH = 710 mm, MARKED AL215627
26	AL168698	1	Fitting	-
27	AL168699	1	Fitting	-
28	AL229549	1	Hydraulic Hose	LGTH = 687 mm, SUB FOR AL215629
29	AL228579	1	Oil Line	Oil Line ICV
30	L216873	1	Isolator	LGTH = 650 mm
31	AL218136	1	Heat Shield	-
32	AL217638	1	Bracket	-
33	19M7402	2	Cap Screw	M10 X 25
34	38H5002	1	Adapter Fitting	-

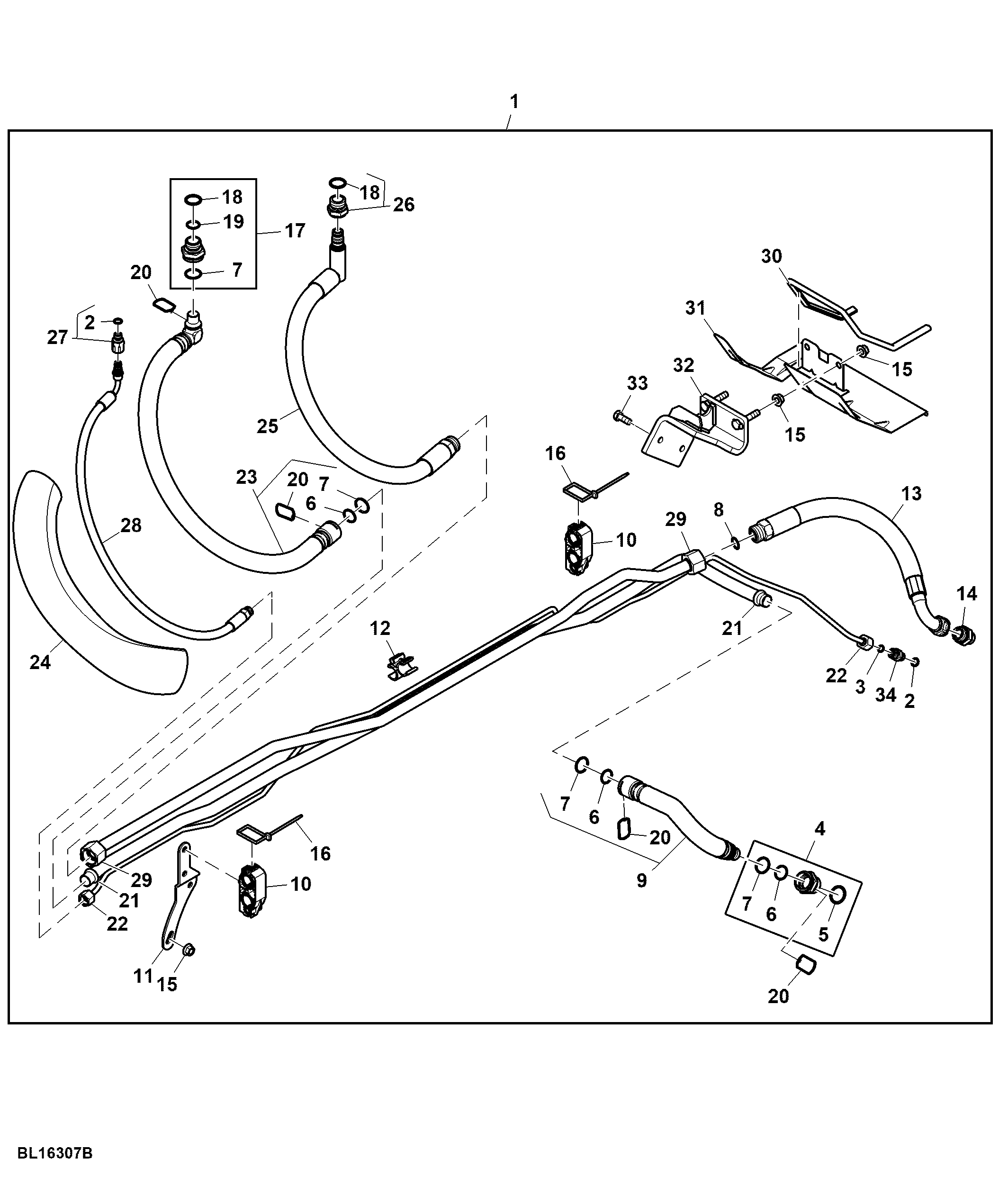

Oil Supply Lines, Midstack SCV, W/ PFC-Hydraulics, Attachmnent
