Oil Supply Lines, Midstack SCV, W/ Hydraulic Coupler, W/ PFC Hydraulic System

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77858	1	O-Ring	-
2	AL213333	2	Clamp	-
3	AL168499	1	Fitting	-
4	51M7051	1	O-Ring	26.600 X 2.900 mm
5	51M7098	3	O-Ring	22 X 2 mm
6	51M7099	4	O-Ring	25 X 2.200 mm
7	AL228576	1	Oil Line	Oil Line ICV
8	AL229549	1	Hydraulic Hose	LGTH = 687 mm, SUB FOR AL215629
9	L219453	1	Tie Band	-
10	AL168699	1	Fitting	-
11	38H5002	1	Adapter Fitting	-
12	51M7041	1	O-Ring	11.300 X 2.200 mm
13	T77613	1	O-Ring	-
14	14M7296	2	Flange Nut	M10
15	AL228578	1	Oil Line	Load Sensing
16	AL168698	1	Fitting	-
17	AL215688	1	Hydraulic Hose	LGTH = 781 mm, MARKED AL215688
18	AL206544	1	Hydraulic Hose	ICV
19	AL215627	1	Hydraulic Hose	LGTH = 710 mm, MARKED AL215627
20	AL155400	1	Fitting	-
21	51M7047	2	O-Ring	23.600 X 2.900 mm
22	51M7102	1	O-Ring	20 X 2 mm
23	AL232261	1	Fitting	SUB FOR APPL AL227628
24	L157513	4	Clamp	-
25	L167158	1	Clamp	-
26	L222692	1	Bracket	-
27	L170901	1	Hose Guard	-
28	AL232991	1	Hydraulic Hose	ICV, SUB FOR APPL AL227621
29	AL228575	1	Oil Line	Oil Line ICV
30	L222912	1	Hose	LGTH = 42 mm

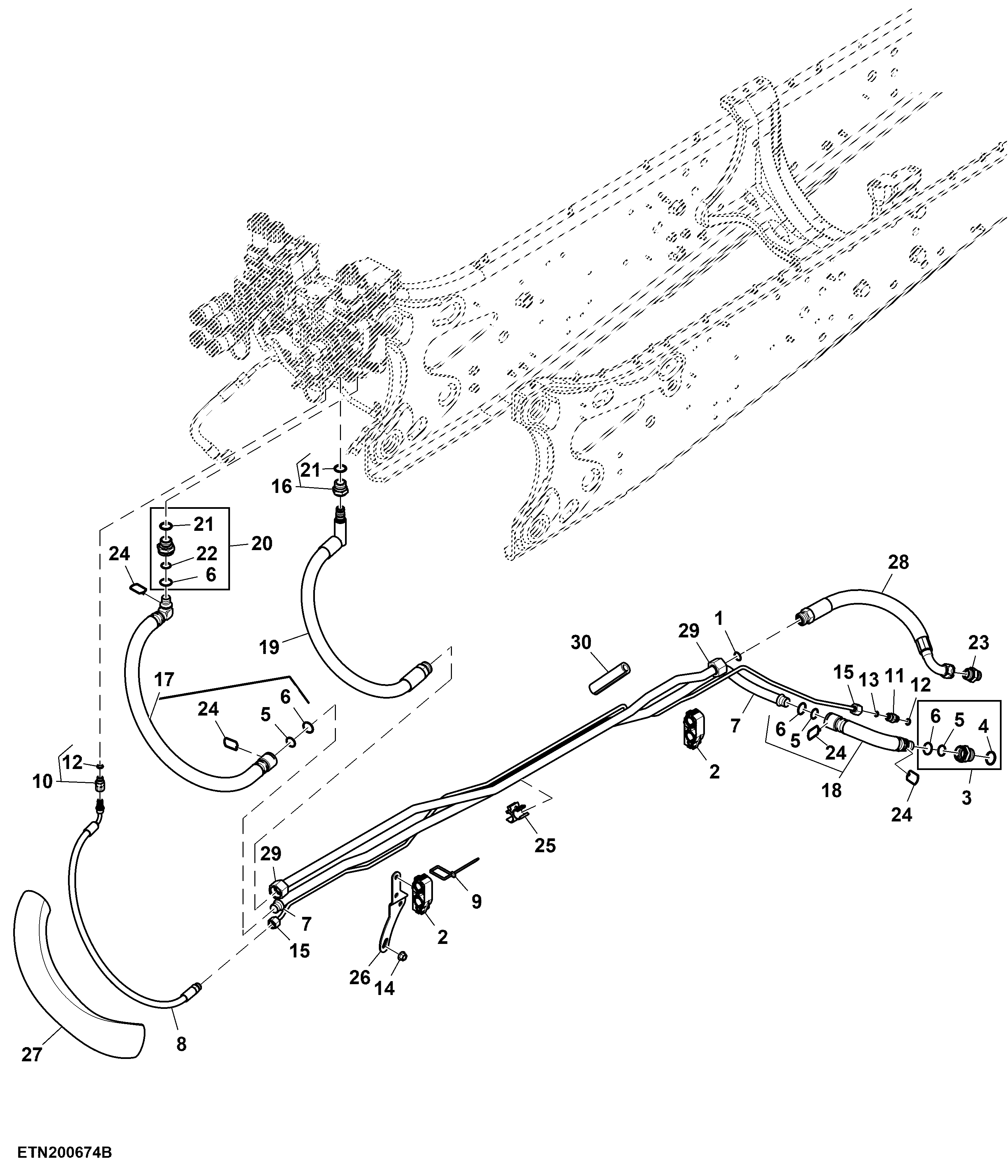

Oil Supply Lines, Midstack SCV, W/ Hydraulic Coupler, W/ PFC Hydraulic System
