Открытый узел

Multi Function Unit, AutoPowr™ / IVT™, W/ Cab

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE278352	1	Switch	Turn Signal Switch
2	R164403	1	Knob	-
3	RE271200	2	Knob	-
4	L224833	1	Isolator	-
5	L220873	1	Cover	-
6	AL230363	1	Wiring Harness	ORDER AL231856
6	AL234559	1	Wiring Harness	SUB FOR AL231856 APPL
7	57M13625	1	Elec. Connector Housing	Light Switch, XS039F
7	57M7089	4	Elec. Connector Terminal	Cavity 1, 2, 3, B
8	57M9360	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W21X and W265, X487M
8	Z77553	12	Elec. Connector Terminal	Cavity 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 16
9	RE46735	1	Electrical Connector Assy	Windshield Wiper Switch, XS083F
9	57M7429	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, B
10	L221355	1	Boot	-
11	R343439	1	Screw	-
12	21M7495	2	Screw	M4 X 10
13	L221351	1	Insert	-
14	RE46634	1	Switch	Windshield Wiper Switch
15	AL220958	1	Rotary Switch	Light Switch
16	L220877	1	Cover	-
17	L221354	1	Insert	-
18	L221353	1	Insert	-
19	H204146	2	Nut	-
20	AL235737	1	Control	Left Hand Reverser, SUB FOR AL225520 APPL
21	57M7633	1	Electrical Connector Assy	Reverse Drive Lever, XA082M
22	L219674	1	Bearing	-
23	L225497	1	Bracket	-
24	37M7391	12	Screw	-
25	57M9367	2	Elec. Connector Accessory	-
26	57M7722	1	Electrical Connector Assy	-
27	57M9668	1	Elec. Connector Housing	Universal Switch, XS084F

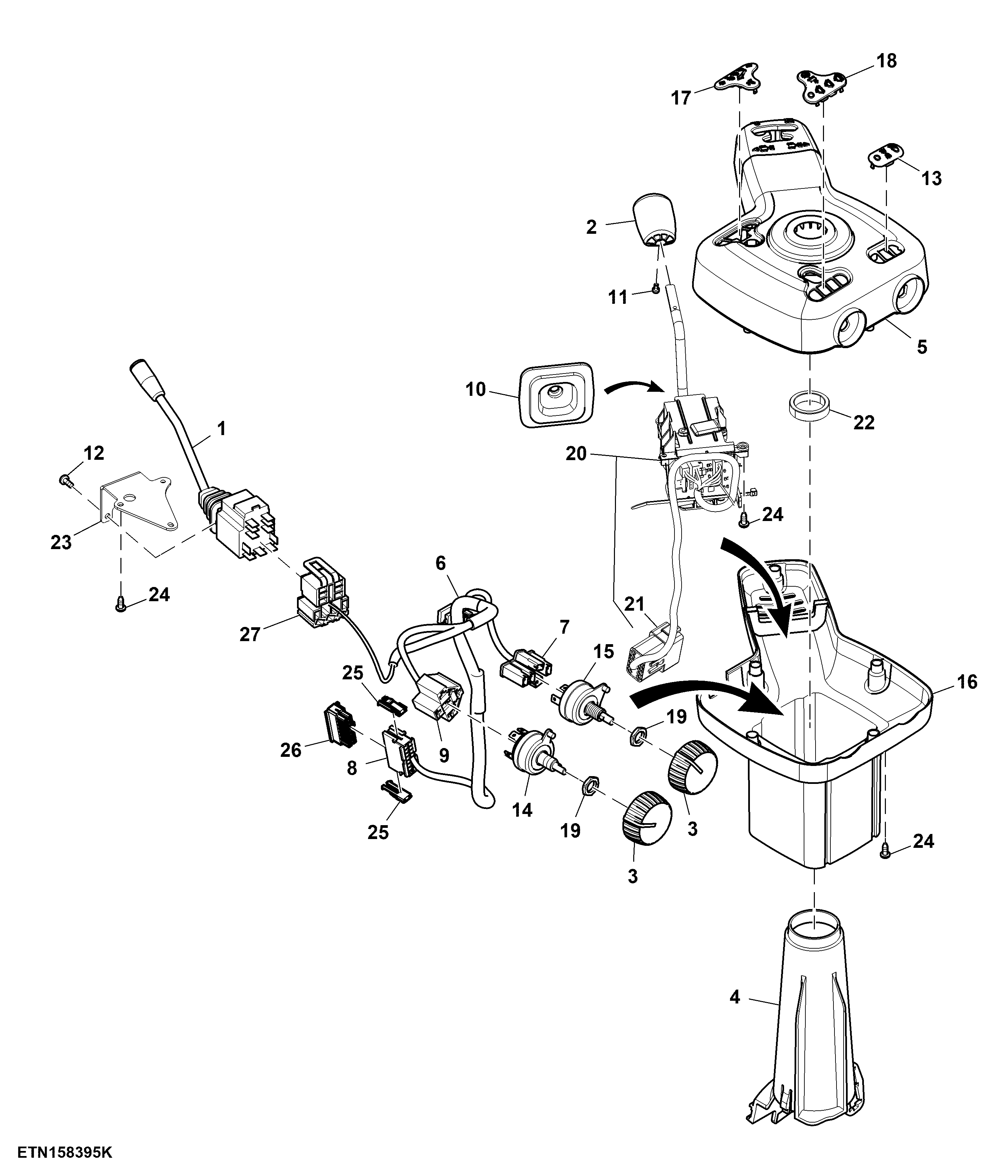

Multi Function Unit, AutoPowr™ / IVT™, W/ Cab

Нет текстового описания
