Открытый узел

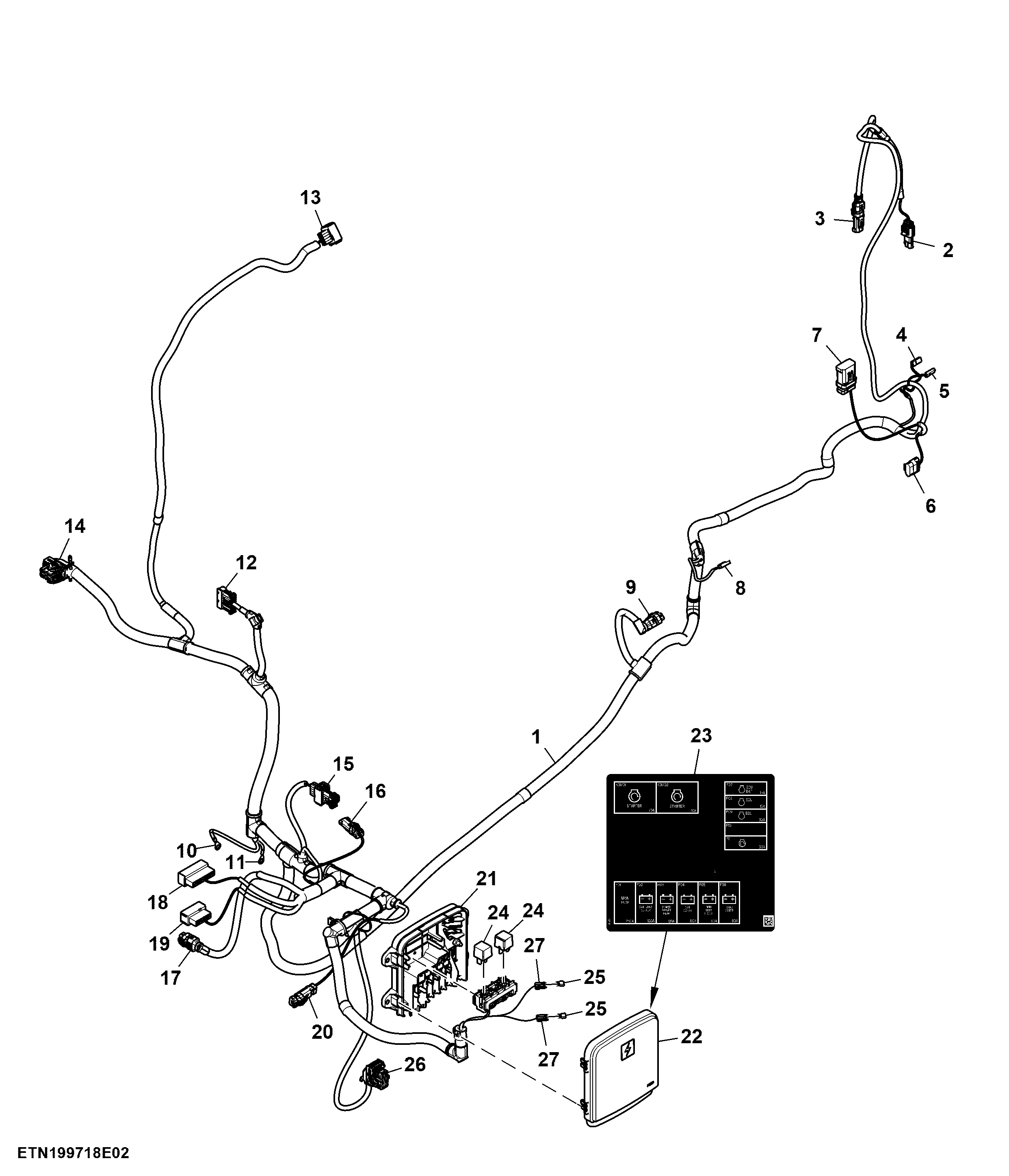

Fuses / Relays / Power Supply / Wiring Harness, Chassis, W/ Front Controller, W/ Front PTO (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL232431	1	Wiring Harness	-
2	57M7309	1	Elec. Connector Housing	Heating Element of Fuel Preheater, XR002F-2
2	57M7306	2	Elec.Connect Locking Device	-
2	R78064	2	Elec. Connector Cavity Plug	-
2	57M9218	2	Elec. Connector Seal	Cavity A, B
3	57M9772	1	Elec. Connector Housing	Water-In-Fuel Sensor, XB121F
3	57M15493	1	Elec. Connector Accessory	-
3	57M9809	2	Elec. Connector Terminal	Cavity 1, 2
4	57M7214	1	Elec. Connector Housing	Horn, XH001F-1
4	57M7430	1	Elec. Connector Terminal	Cavity 1
5	57M7430	1	Elec. Connector Terminal	Cavity 1
5	57M7214	1	Elec. Connector Housing	Horn, XH001F-2
6	57M8416	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 or W513 and W741, X002F
6	57M7469	1	Electrical Connector Assy	-
6	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
6	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
7	57M9800	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W701, X205F
7	57M9809	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 11, 12
7	57M10336	2	Elec. Connector Cavity Plug	Cavity 7, 10
8	57M7170	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W523, X305F-1
8	57M7106	1	Elec. Connector Terminal	Cavity A
9	57M9817	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W441, X637F-1
9	57M9809	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
9	57M15933	1	Elec. Connector Accessory	-
10	57M9444	1	Elec. Connector Terminal	Ground Point, XGND9E
11	57M7382	1	Elec. Connector Terminal	Ground Point, XGND9F
12	57M7401	7	Elec. Connector Cavity Plug	Cavity 1, 8, 9, 11, 12, 13, 16
12	57M7400	6	Elec. Connector Seal	Cavity 3, 4, 6, 7, 14, 15
12	57M7399	3	Elec. Connector Seal	Cavity 2, 5, 10
12	57M9042	6	Elec. Connector Terminal	Cavity 3, 4, 6, 7, 14, 15
12	57M8075	1	Elec. Connector Seal	-
12	57M8082	1	Elec. Connector Accessory	-
12	57M8069	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W502 and W513 or W514, X1080M-1
13	57M8071	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W101, X1233F
13	57M8081	1	Elec. Connector Accessory	-
13	57M8941	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 7, 8, 9, 10
13	57M7399	9	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 7, 8, 9, 10
13	57M7401	1	Elec. Connector Cavity Plug	Cavity 6
14	57M10334	1	Elec. Connector Cavity Plug	Cavity M3
14	57M10333	30	Elec. Connector Cavity Plug	Cavity A2, A3, A4, B4, C1, C2, C3, C4, D1, D3, D4, E1, E2, E4, F1, F3, F4, G1, G2, G3, G4, H1, H2, H3, H4, J2, J3, K2, K3, K4
14	57M10617	3	Elec. Connector Housing	Cavity L2, L3, M2
14	57M10331	4	Elec. Connector Terminal	Cavity L1, L4, M1, M4
14	57M10514	4	Elec. Connector Terminal	Cavity A1, B1, D2, K1
14	57M10330	6	Elec. Connector Terminal	Cavity B2, B3, E3, F2, J1, J4
14	57M10614	1	Elec. Connector Housing	Engine Control Unit, XA086F-2
14	57M13596	1	Elec. Connector Accessory	-
14	57M10613	1	Elec. Connector Housing	-
15	57M7401	3	Elec. Connector Cavity Plug	Cavity 4, 7, 10
15	57M7399	1	Elec. Connector Seal	Cavity 6
15	57M7400	6	Elec. Connector Seal	Cavity 1, 2, 3, 5, 8, 9
15	57M8941	1	Elec. Connector Terminal	Cavity 6
15	57M9532	6	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 8, 9
15	57M8074	1	Elec. Connector Terminal	-
15	57M8081	1	Elec. Connector Accessory	-
15	57M8080	1	Elec. Connector Accessory	-
15	57M8071	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W731, X1134F
16	57M9772	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W431 or W751, X360F
16	57M9809	1	Elec. Connector Terminal	Cavity 1
16	57M10336	1	Elec. Connector Cavity Plug	Cavity 2
17	57M9817	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W462, X637F-2
17	57M15933	1	Elec. Connector Accessory	-
17	57M9809	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
18	57M7401	5	Elec. Connector Cavity Plug	Cavity 12, 13, 22, 23, 24
18	57M7400	17	Elec. Connector Seal	Cavity 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 14, 15, 16, 17, 18, 19, 20
18	57M7399	2	Elec. Connector Seal	Cavity 1, 21
18	57M8941	2	Elec. Connector Terminal	Cavity 1, 21
18	57M8084	1	Elec. Connector Accessory	-
18	57M8073	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W60X, X403F
18	57M9532	17	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 14, 15, 16, 17, 18, 19, 20
19	57M8072	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W60X, X401F
19	57M8083	1	Elec. Connector Accessory	-
19	57M8079	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
19	57M7399	6	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6
19	57M7401	10	Elec. Connector Cavity Plug	Cavity 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
20	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, XR020M
20	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
21	AL225462	1	Fuse Box	-
22	L221679	1	Cover	-
23	L224272	1	Label	-
24	AL207376	2	Relay	70 A
25	57M8163	2	Fuse	30 A
26	57M10614	1	Elec. Connector Housing	Connector of Front Chassis Control Unit, XA025F
26	57M10613	1	Elec. Connector Housing	-
26	57M13596	1	Elec. Connector Accessory	-
26	57M10514	2	Elec. Connector Terminal	Cavity A1, B1
26	57M10330	11	Elec. Connector Terminal	Cavity B2, C4, F2, H4, J2, J3, J4, K1, K2, K3, K4
26	57M10331	6	Elec. Connector Terminal	Cavity L1, L2, L4, M1, M2, M4
26	57M10333	27	Elec. Connector Cavity Plug	Cavity A2, A3, A4, B3, B4, C1, C2, C3, D1, D2, D3, D4, E1, E2, E3, E4, F1, F3, F4, G1, G2, G3, G4, H1, H2, H3, J1
26	57M10334	2	Elec. Connector Cavity Plug	Cavity L3, M3
27	57M13917	2	Elec. Connector Housing	To Power Link Box, PLB_F10 / F11
27	57M9057	1	Elec. Connector Terminal	Cavity 1

Fuses / Relays / Power Supply / Wiring Harness, Chassis, W/ Front Controller, W/ Front PTO (2/2)
