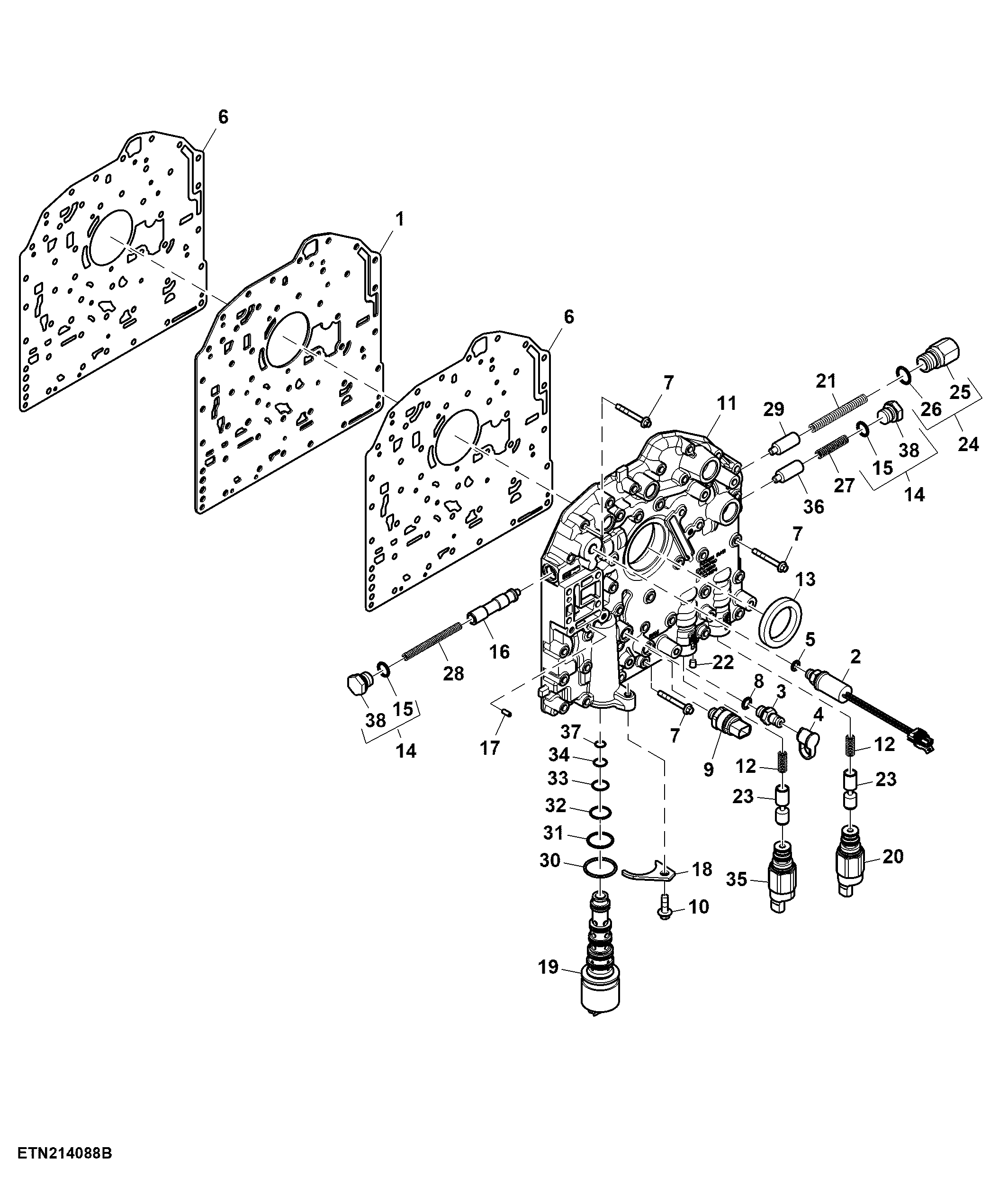

Front Valve Housing and Valve, PowrQuad™ or CommandQuad™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L221528	1	Plate	ALSO ORDER R319336
2	RE212870	1	Trans Oil Pressure Sensor	-
3	AL80099	1	Hydr. Quick Coupler Plug	-
4	R77175	1	Cover	-
5	51M7040	1	O-Ring	9.300 X 2.200 mm
6	R319336	2	Gasket	-
7	R109067	40	Screw	-
8	51M7041	1	O-Ring	11.300 X 2.200 mm, USE WITH TA13483, AL80099
9	RE584415	1	Pressure Sensor	Pressure Switch for Clutch Pressure, B105
10	19M7867	1	Screw	M8 X 25
11	R319700	1	Housing	-
12	R163423	2	Compression Spring	-
13	RE39354	1	Seal	-
14	RE46685	2	Fitting Plug	-
15	51M7043	2	O-Ring	15.300 X 2.200 mm
16	R95076	1	Valve	Transmission Filter Relief Valve
17	34M5028	2	Spring Pin	5 X 12 mm
18	R95045	1	Clamp	-
19	RE177539	1	Valve	Electrohydraulic Valve, ALSO ORDER U41966; INCLUDES R106663, U11326, R62070 AND R27928
20	RE183407	1	Solenoid Valve	-
21	R95084	1	Spring	-
22	15H560	1	Pipe Plug	1/16"
23	R163424	2	Valve Spool	-
24	AL166743	1	Fitting Plug	-
25	L166446	1	Fitting Plug	-
26	51M7045	1	O-Ring	19.300 X 2.200 mm
27	R116040	1	Spring	-
28	R95077	1	Spring	-
29	R95081	1	Valve	-
30	U41966	1	O-Ring	-
31	R106663	1	O-Ring	-
32	U11326	1	O-Ring	-
33	R62070	1	Ring	-
34	R27928	1	O-Ring	-
35	RE183407	1	Solenoid Valve	Forward Solenoid Valve, Y033
36	R95081	1	Valve	Lube Oil Relief Valve, V627
37	P42061	1	O-Ring	-
38	R107770	2	Fitting Plug	-

Front Valve Housing and Valve, PowrQuad™ or CommandQuad™
