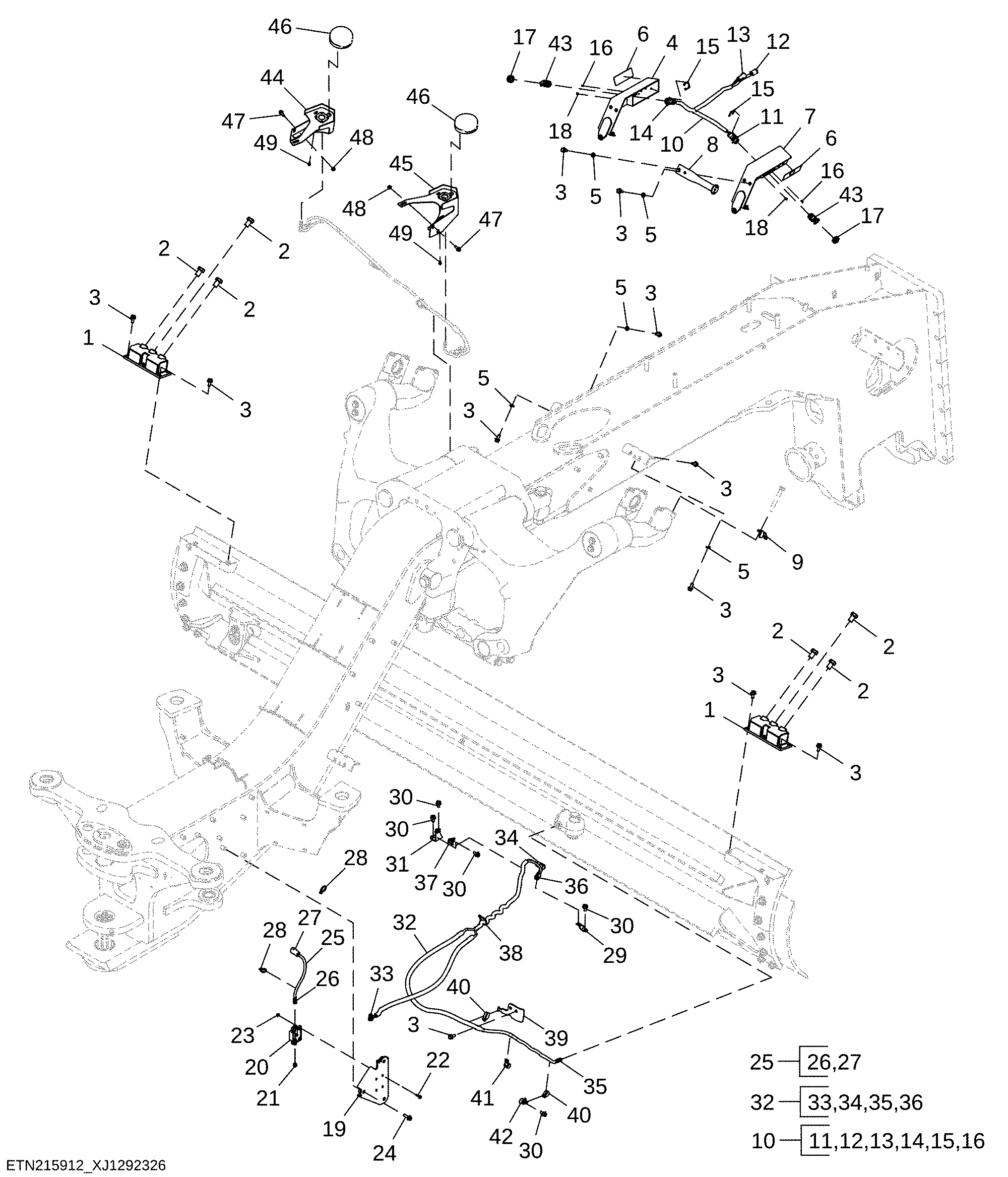

Electrical Controller, SmartGrade™ (702961 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT416931	2	Bracket	-
2	19M8543	6	Cap Screw	M20 X 30
3	19M9845	17	Screw	M10 X 25
4	AT503404	1	Bracket	LH
5	24M7618	8	Washer	11 X 20 X 2 mm
6	T323906	2	Label	Topcon Hole Cover
7	AT503403	1	Bracket	RH
8	AT418640	1	Bracket	-
9	T354230	1	Plate	-
10	AT507718	1	Wiring Harness	2D Front Platform Harness
11	57M12188	1	Elec. Connector Housing	Topcon 2D System Interconnect LH, X85A
11	R44302	1	Tie Band	-
11	57M11632	1	Elec. Connector Accessory	-
12	57M9957	1	Elec. Connector Housing	To Electrohydraulic (EH) Main Frame Harness, X92B
12	R78065	3	Elec. Connector Terminal	-
12	R78069	3	Elec. Connector Cavity Plug	-
12	57M8013	1	Elec.Connect Locking Device	-
13	57M7678	1	Elec. Connector Terminal	-
13	R78069	1	Elec. Connector Cavity Plug	-
13	R78066	5	Elec. Connector Terminal	-
13	57M13374	1	Elec. Connector Housing	To Electrohydraulic (EH) Main Frame Harness, X91B
14	57M12188	1	Elec. Connector Housing	Topcon 2D System Interconnect
14	57M11632	1	Elec. Connector Accessory	-
14	R44302	1	Tie Band	-
15	T430696	2	Elec. Connector Accessory	-
16	21M7730	8	Screw	M3 X 12
17	57M11633	2	Elec. Connector Accessory	-
18	21M7395	2	Screw	M4 X 8
19	AT496417	1	Bracket	-
20	AT515867	1	Multi-Functional Controller	Topcon, SUB FOR AT486361
21	T414424	1	Electrical Connector Cap	-
22	19M7863	4	Screw	M6 X 25
23	14M7303	4	Flange Nut	M6
24	19M9986	3	Screw	M10 X 35
25	AT490999	1	Sensor Wiring Harness	IMU Jumper Harness
26	57M14193	1	Elec. Connector Housing	To Multi-functional Controller, A65
27	57M9956	1	Elec. Connector Housing	To EH Front Platform Harness, X101B
27	57M7678	1	Elec. Connector Terminal	-
27	R78069	1	Elec. Connector Cavity Plug	-
27	R78066	5	Elec. Connector Terminal	-
28	H77698	2	Tie Band	-
29	57M8736	1	Elec. Connector Accessory	-
30	19M9844	5	Screw	M10 X 20
31	AT519789	1	Bracket	Blade sensor Routing
32	AT487593	1	Sensor Wiring Harness	Blade Sensor Harness
33	57M15209	1	Elec. Connector Housing	To Blade Tilt Cylinder, B83
34	57M9956	1	Elec. Connector Housing	To Draft Frame Harness, X48B
34	R78066	3	Elec. Connector Terminal	-
34	R78069	3	Elec. Connector Cavity Plug	-
34	57M7678	1	Elec. Connector Terminal	-
35	57M14193	1	Elec. Connector Housing	Blade Side Shift Cylinder, B84
36	57M8013	1	Elec.Connect Locking Device	-
36	R78065	5	Elec. Connector Terminal	-
36	R78069	1	Elec. Connector Cavity Plug	-
36	57M9957	1	Elec. Connector Housing	To Draft Frame Harness, X47B
37	T74416	1	Clamp	-
38	H77698	1	Tie Band	-
39	T415890	1	Bracket	-
40	H224073	2	Tie Band	-
41	T76719	1	Clamp	-
42	T351899	1	Clamp	-
43	T419025	2	Electrical Connector Assy	NLA; INCLUDES 57M13237
43	57M13237	1	Elec. Connector Housing	-
44	AT492971	1	Bracket	GPS Bracket LH
45	AT492970	1	Bracket	GPS Bracket RH
46	AT490114	2	Antenna	-
47	19M7786	2	Screw	M10 X 30
48	14M7648	2	Flange Nut	M10
49	19M9831	8	Screw	M6 X 16

Electrical Controller, SmartGrade™ (702961 - )
