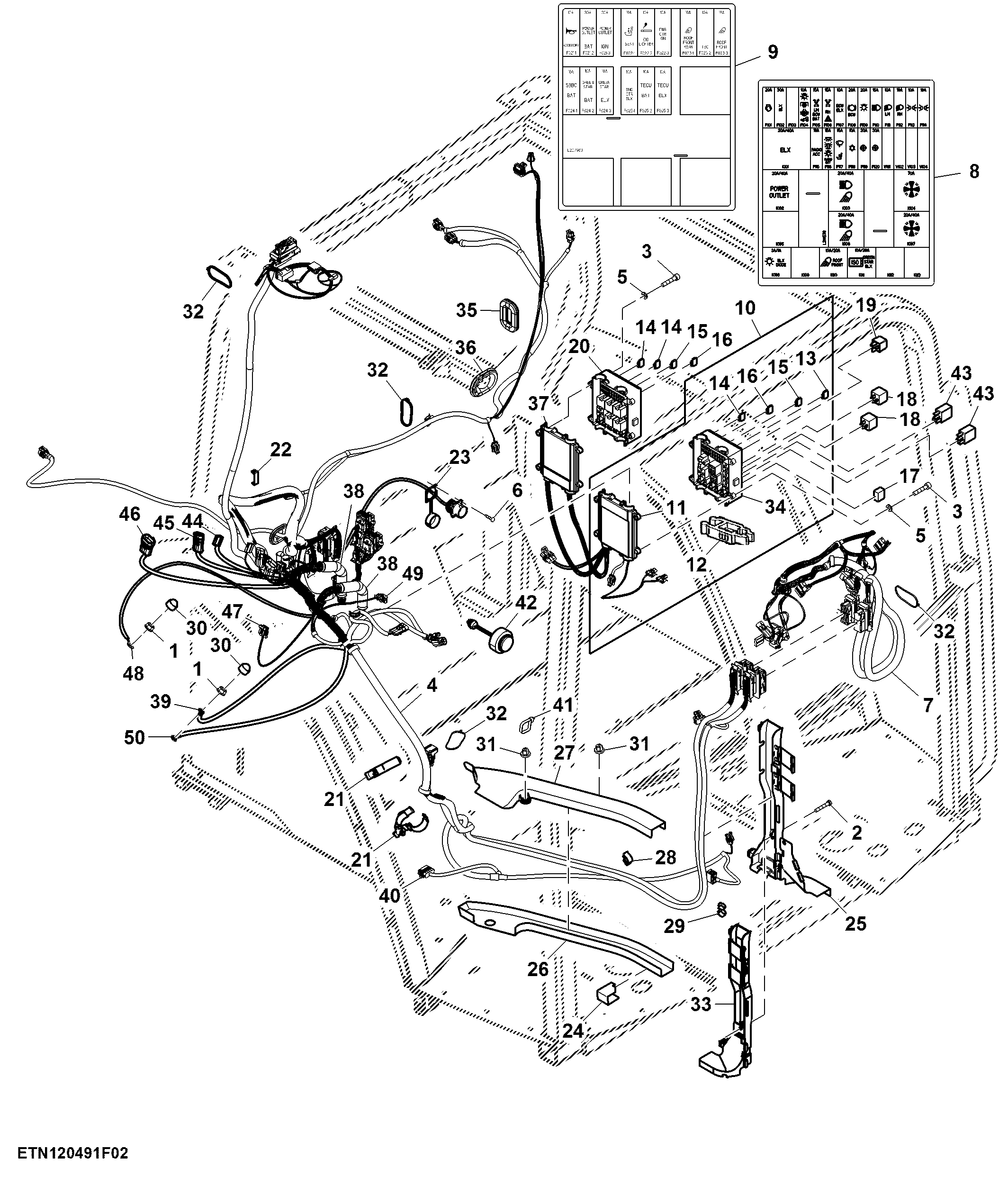

Cab Wiring Harness, W/ AutoTrac™ Integrated

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7416	2	Flange Nut	M8
2	19M7317	1	Screw	M5 X 30
3	19M8263	8	Screw	M6 X 30
4	AL220406	1	Wiring Harness	SUB FOR AL216610
5	24M7244	8	Washer	6.400 X 12 X 1.600 mm
6	37M7095	4	Screw	-
7	AL226625	1	Wiring Harness	Front Support SUB FOR AL208089
8	L214578	1	Insert	-
9	L214579	1	Insert	-
10	AL161113	1	Cover	-
11	L154173	1	Cover	-
12	AL200633	1	Pliers	-
13	57M7120	4	Fuse	20 A
14	57M7121	20	Fuse	10 A
15	57M7146	4	Fuse	30 A
16	99M7065	6	Fuse	15 A
17	AL152098	1	Diode Holder	-
18	AL77324	4	Relay	12 V
19	AL207376	1	Relay	70 A
20	L111376	1	Holder	-
21	L113094	3	Clamp	-
22	L154332	2	Clamp	-
23	L156796	1	Plug	-
24	L166759	1	Clamp	-
25	L170967	1	Channel	Firewall
26	L175841	1	Channel	Lower
27	L175842	1	Channel	Upper
28	L171496	2	Clamp	-
29	AL173227	1	Clip	-
30	L32394	2	Cap	-
31	L40924	3	Nut	-
32	H77698	10	Tie Band	-
33	L170967	1	Channel	-
34	L102203	1	Fuse Box	-
35	L78028	2	Grommet	-
36	L102007	2	Grommet	-
37	L102204	2	Cover	-
38	L79880	2	Guide	-
39	57M7207	1	Elec. Connector Terminal	Ground Cab I
40	57M7262	1	Elec. Connector Housing	Interface Power Socket
41	R44302	1	Tie Band	-
42	RE49727	1	Horn	-
43	AL76702	2	Relay	10.2 A
44	57M7065	1	Elec. Connector Housing	Cigarette Lighter
45	57M7257	1	Elec. Connector Housing	Rear PTO Switch
45	57M7317	1	Elec. Connector Accessory	-
46	57M7264	1	Elec. Connector Housing	Rockshaft Control Switch
46	57M7283	1	Elec.Connect Locking Device	-
47	57M7255	1	Elec. Connector Housing	Load Depth
47	57M7317	1	Elec. Connector Accessory	-
48	57M7118	1	Elec. Connector Terminal	Ground Cab II
49	57M7255	1	Elec. Connector Housing	Resume Switch
49	57M7317	1	Elec. Connector Accessory	-
50	57M7207	1	Elec. Connector Terminal	Ground Cab III

Cab Wiring Harness, W/ AutoTrac™ Integrated
