Открытый узел

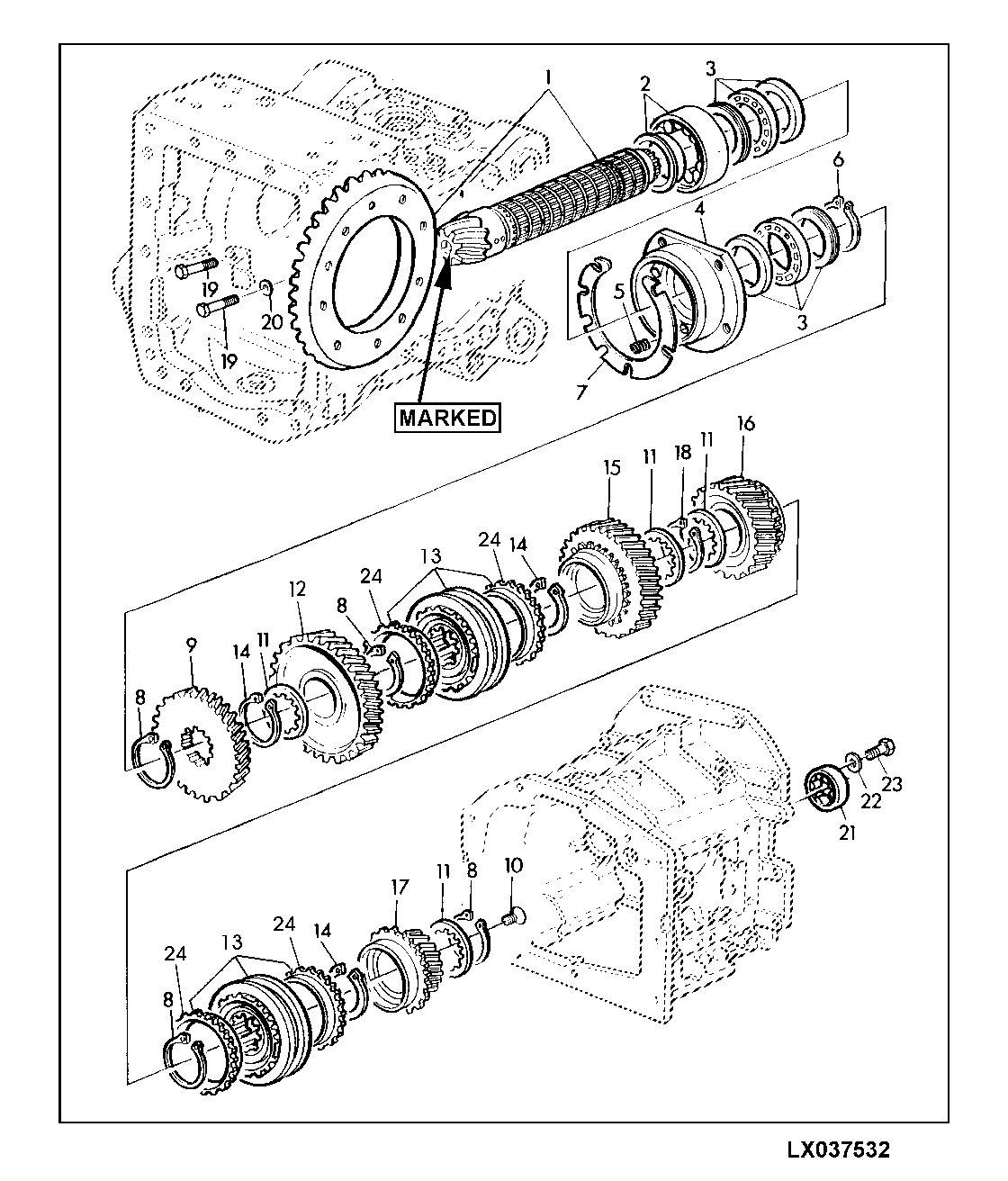

DIFF. DRIVE SHAFT, RANGE TRANSMISSION (SYNCROPLUS OR POWERREVERSER)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL110319	1	Bevel Gear Drive	Z=9/53, MARKED L102703 (ORD AL116873, L155496) (ORD W/ L115482 OR L115483 OR L115484)
1	AL110318	1	Bevel Gear Drive	Z=10/53, MARKED L102702 (ORD AL164687, L155496) (ORD W/ L115482 OR L115483 OR L115484)
1	AL114283	1	Bevel Gear Drive	Z=8/47
2	AL113714	1	Cylindrical Roller Bearing	-
3	AL77434	2	Cylindrical Roller Bearing	-
4	L113330	1	Bearing Housing W/O Bearing	-
5	L77775	5	Compression Spring	-
6	L78072	1	Ring	TK=2.60MM (0.102")
6	L78073	1	Ring	TK=2.50MM (0.098")
6	L78071	1	Ring	TK=2.70MM (0.106")
6	L78070	1	Ring	TK=2.80MM (0.110")
6	L78069	1	Ring	TK=2.90MM (0.114")
6	L173991	1	Snap Ring	TK=3.00MM (0.118"), (SUB FOR 40M7268)
7	L115160	1	Shim	TK=0.20MM (0.008"), (SUB FOR L113564)
7	L115161	1	Shim	TK=0.30MM (0.012"), (SUB FOR L113565)
7	L115162	1	Shim	TK=0.50MM (0.020"), (SUB FOR L113566)
8	L76923	4	Snap Ring	-
9	L152564	1	Pinion	Z=50, (SUB FOR L113270)
10	L110851	1	Screw	M14
11	L75917	1	Thrust Washer	TK=3.80MM (0.149")
11	L153635	1	Thrust Washer	TK=4.05MM (0.159")
11	L113339	1	Thrust Washer	TK=4.15MM (0.163")
11	L76821	1	Thrust Washer	TK=3.65MM (0.144")
11	L76822	1	Thrust Washer	TK=3.95MM (0.155")
12	L113424	1	Gear	Z=63
13	AL157733	2	Synchronizer	(SUB FOR AL80884)
14	L76923	1	Snap Ring	TK=2.00MM (0.079")
14	L75904	1	Ring	TK=2.30MM (0.090")
14	L75905	1	Snap Ring	TK=2.20MM (0.087")
14	L75906	1	Snap Ring	TK=2.10MM (0.083")
15	L115184	1	Gear	Z=55
16	L110060	1	Gear	Z=36
17	AL112629	1	Gear	Z=28
18	L173991	1	Snap Ring	TK=3.00MM (0.118"), (SUB FOR 40M7268)
19	19M7742	4	Cap Screw	M10 X 65
20	24M7028	3	Washer	10.500 X 20 X 2 mm
21	L113451	1	Cylindrical Roller Bearing	-
22	24M7332	1	Washer	8.400 X 23 X 4 mm
23	19M7162	1	Cap Screw	M8 X 16
24	L116130	4	Synchronizer	-

DIFF. DRIVE SHAFT, RANGE TRANSMISSION (SYNCROPLUS OR POWERREVERSER)

Нет текстового описания
