Большое обновление пильных узлов

Смотреть

Открытый узел

Switch / Remote Control, Rockshaft, W/ Rear PTO Control

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7077	8	Cap Screw	M6 X 20
2	37M7269	18	Screw	-
3	37M7286	8	Screw	-
4	37M7411	10	Screw	-
5	AL208892	2	Switch	-
5	AL112561	2	Switch	-
6	L112914	2	Washer	USE WITH AL112561
6	L217105	2	Washer	USE WITH AL208892
7	L112854	2	Half Sleeve	USE WITH AL112561
7	L217104	2	Sleeve	USE WITH AL208892
8	AL172871	2	Control	-
9	L168608	2	Clip	-
10	AL81777	4	Elec. Connector Terminal	-
11	37M7235	2	Screw	-
12	AL174449	2	Wiring Harness	-
13	L170404	1	Housing	LH
14	L170405	1	Housing	LH
15	L170408	1	Adapter Fitting	LH
16	L170409	1	Adapter Fitting	LH
17	L170410	1	Adapter Fitting	LH
18	L170411	1	Adapter Fitting	LH
19	L170420	1	Cover	LH
20	L170422	2	Cover	-
21	14M7272	2	Nut	M6
22	R234273	2	Frame	-
23	14M7303	8	Flange Nut	M6
24	L170412	1	Housing	RH
25	L170413	1	Housing	RH
26	L170416	1	Adapter Fitting	RH
27	L170417	1	Adapter Fitting	RH
28	L170418	1	Adapter Fitting	RH
29	L170419	1	Adapter Fitting	RH
30	L170421	1	Cover	RH
31	57M7263	1	Elec. Connector Housing	Connection Point between Harnesses W451 and W471, X747M
31	57M7291	1	Electrical Connector Assy	-
31	57M7259	1	Elec. Connector Seal	-
31	R104919	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
31	57M7493	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
32	57M7742	1	Elec. Connector Housing	X174M
32	57M9059	3	Elec. Connector Terminal	Cavity 1, 2, 3
32	57M7938	1	Elec. Connector Terminal	Cavity 1
32	57M8567	2	Elec. Connector Seal	Cavity 2, 3
32	57M7743	1	Elec. Connector Cable Seal	-
33	57M7263	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W201 or W202 and W731, X35M
33	57M7252	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
33	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
33	57M7259	1	Elec. Connector Seal	-
33	57M7291	1	Electrical Connector Assy	-
34	57M7259	1	Elec. Connector Seal	-
34	57M7493	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
34	57M7260	1	Elec. Connector Housing	Connection Point on Wiring Harness W451, X747F-1
34	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
35	57M7687	1	Elec. Connector Housing	Connector of Left Remote Control Switch for Rear PTO, X174F-1
35	R104846	2	Elec. Connector Terminal	Cavity A, B, C
35	57M7493	1	Elec. Connector Seal	Cavity A
35	57M9214	2	Elec. Connector Seal	Cavity A, B
35	57M7259	1	Elec. Connector Seal	-
35	57M7317	1	Elec. Connector Accessory	-
36	57M7260	1	Elec. Connector Housing	Connector of Left Remote Control Switch for Rear Hitch (Cab), X35F-1
36	57M7291	1	Electrical Connector Assy	-
36	57M7259	1	Elec. Connector Seal	-
36	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
36	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
37	19M7862	2	Screw	M6 X 20
38	L222109	1	Tie Band	-
39	L169912	2	Boot	SUB FOR R234272 APPL
40	L78028	2	Grommet	-

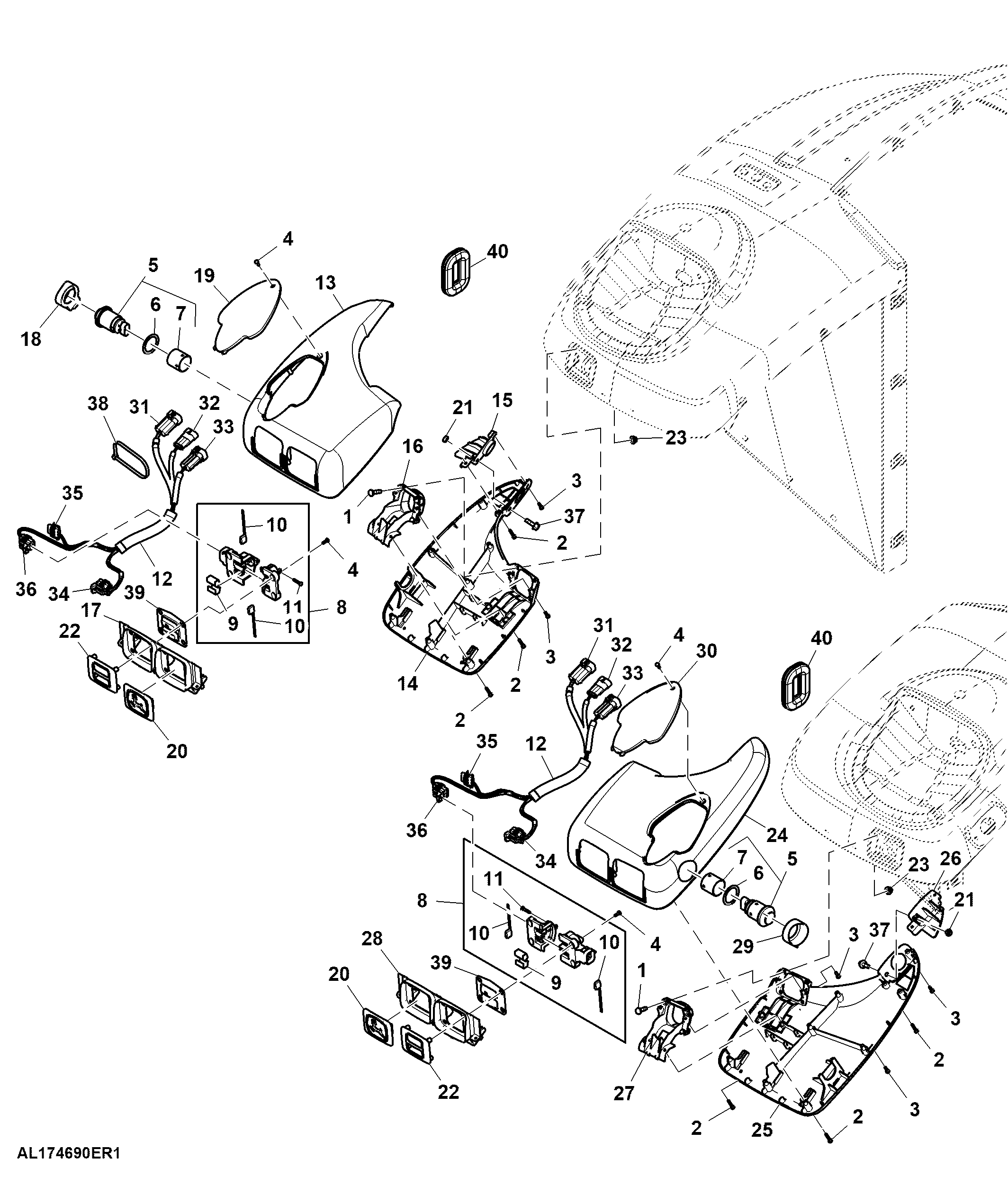

Switch / Remote Control, Rockshaft, W/ Rear PTO Control
