Открытый узел

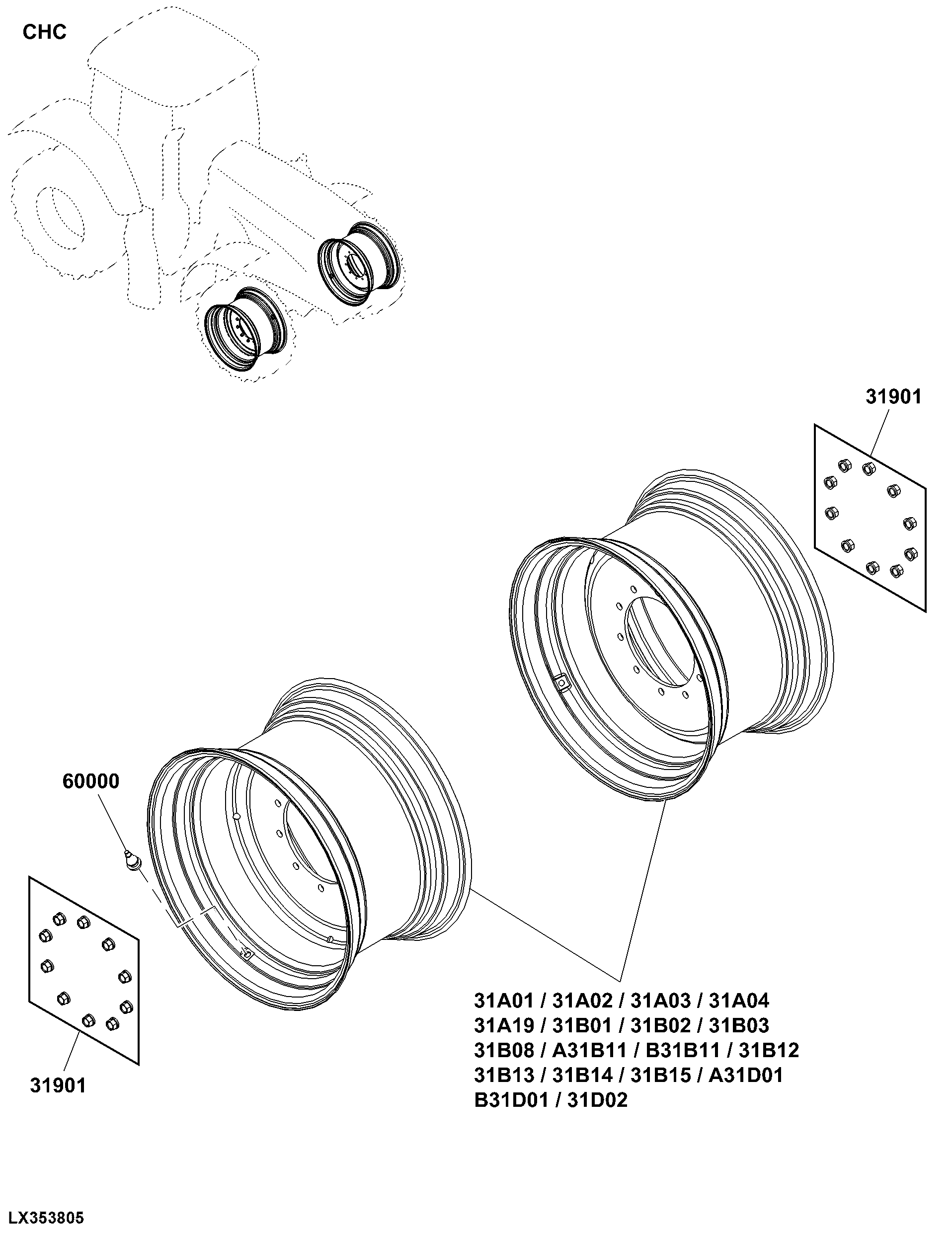

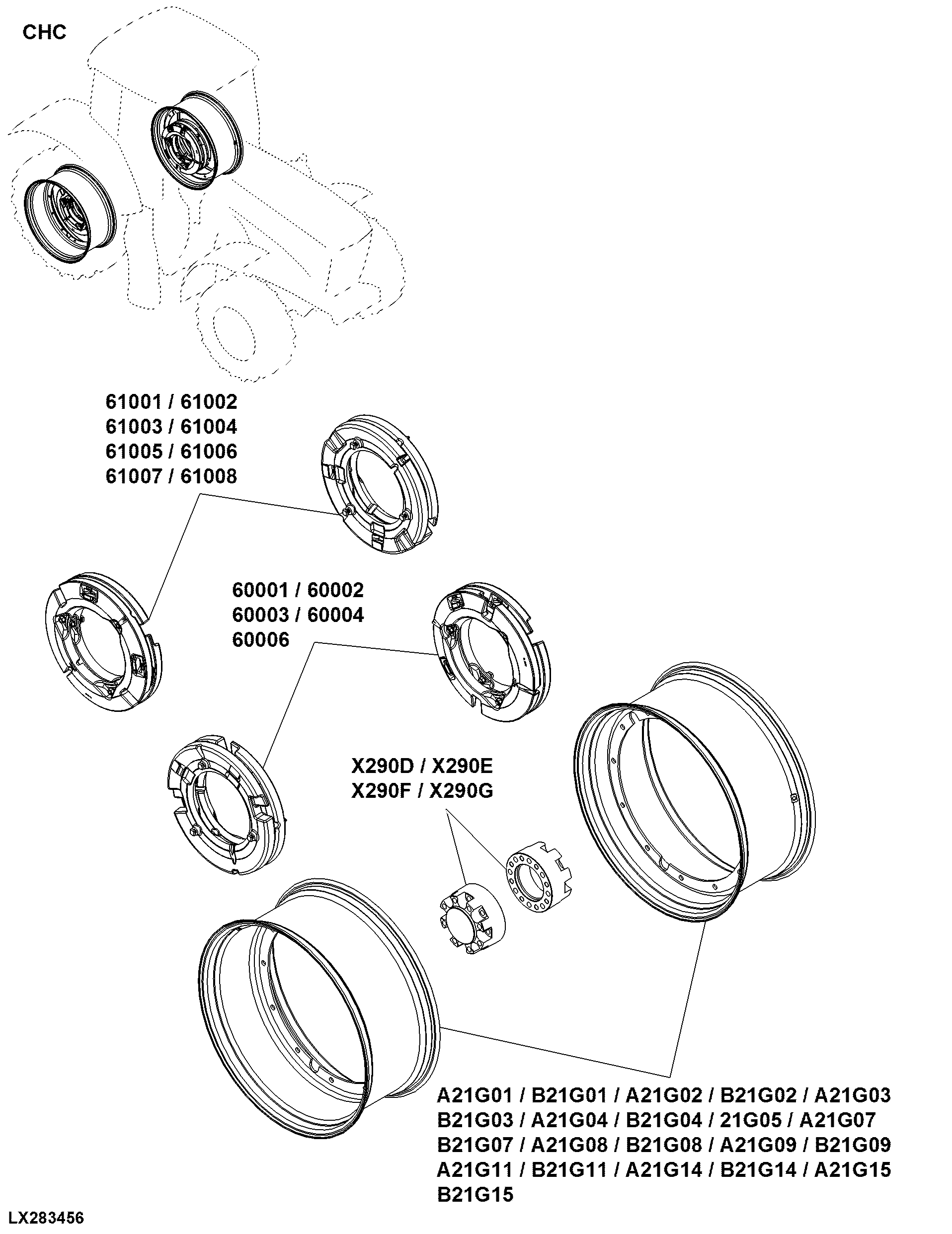

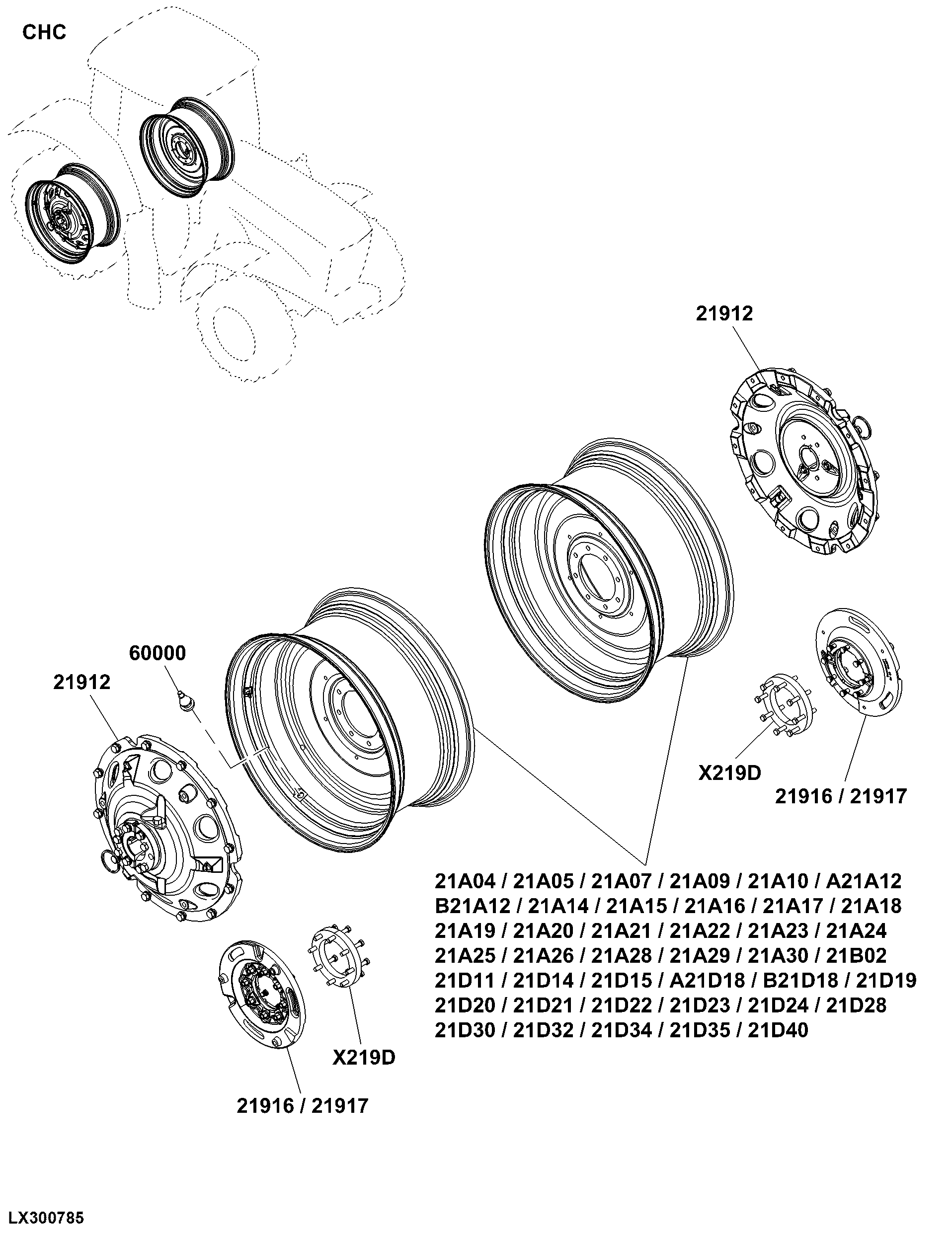

CHC Wheels, Tires and Weights

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Steel Disk Front Wheels, Adjustable, 2 Position, DW20BX30, 3 Piece MFWD Axle	-
-	-	1	Steel Disk Rear Wheels, 16 Position, W10X52, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, 16 Position, W10X48, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, 16 Position, TW23BX38, 275 mm Bolt Circle Diameter, W/ Reinforcement	-
-	-	1	Steel Disk Rear Wheels, 16 Position, TW20BX42, 275 mm Bolt Circle Diameter, W/ Reinforcement	-
-	-	1	Steel Disk Rear Wheels, 16 Position, TW18LX42, W/ Reinforcement	-
-	-	1	Steel Disk Rear Wheels, 16 Position, DW20BX38	-
-	-	1	Steel Disk Rear Wheels, 16 Position, DW12X46, 275 mm Bolt Circle Diameter, W/ Narrow Tread Setting	-
-	-	1	Steel Disk Rear Wheels, 16 Position, DW12X46, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, 16 Position, DW10X50, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, 16 Position, DW10X46, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Front Wheels, Adjustable, 8 Position, W13X34, 3 Piece MFWD Axle	-
-	-	1	Steel Disk Front Wheels, Adjustable, 8 Position, DW18X28, 3 Piece MFWD Axle	-
-	-	1	Steel Disk Rear Wheels, 16 Position, W12X48, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Front Wheels, Adjustable, 2 Position, DW20BX28, 3 Piece MFWD Axle	-
-	-	1	Steel Disk Front Wheels, 8 Position, W18LX28	-
-	-	1	Steel Disk Front Wheels, 8 Position, W15LX28	-
-	-	1	Steel Disk Front Wheels, 8 Position, W15AX34	-
-	-	1	Steel Disk Front Wheels, 8 Position, W12X38	-
-	-	1	Steel Disk Front Wheels, 8 Position, DW18LX30, 335 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Front Wheels, 8 Position, DW15LX30	-
-	-	1	Steel Disk Front Wheels, 2 Position, DW18LX30	-
-	-	1	Steel Disk Front Wheels, 2 Position, DW18LX28	-
-	-	1	Steel Disk Front Wheels, 2 Position, DW15LX30, 335 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Front Wheels, 16 Position, DW13X34, 335 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Front Wheels, 16 Position, DW12X30, 335 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, 2 Position, TW25BX42	-
-	-	1	Wheel Weights, Inner, Rear, 72 / 205 kg	-
-	-	1	Valve, Tubeless Tires	-
-	-	1	Steel Rear Wheels, Adjustable, 16 Position, TW15LX38, 275 Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, W12AX54	-
-	-	1	Steel Disk Rear Wheels, W/ Dual Rear Tires, 2 Position, MW20AX42 / DW20BX42	-
-	-	1	Steel Disk Rear Wheels, Adjustable, 16 Position, DW20BX38	-
-	-	1	Steel Disk Rear Wheels, 8 Position, DW16X42	-
-	-	1	Steel Disk Rear Wheels, 2 Position, W18AX42	-
-	-	1	Steel Disk Rear Wheels, 2 Position, W16AX46, 50 km/h (31 mph)	-
-	-	1	Steel Disk Rear Wheels, 2 Position, W16AX46, 40 km/h (25 mph)	-
-	-	1	Steel Disk Rear Wheels, 2 Position, W16AX42	-
-	-	1	Steel Disk Rear Wheels, 2 Position, W16AX38	-
-	-	1	Rear Wheels, TW20BX42	-
-	-	1	Steel Disk Rear Wheels, 2 Position, TW25BX38	-
-	-	1	Steel Disk Rear Wheels, 2 Position, TW23BX38, 275 mm Bolt Circle Diameter, W/ Reinforcement	-
-	-	1	Steel Disk Rear Wheels, 2 Position, TW23BX38, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, 2 Position, TW20BX42, 275 mm Bolt Circle Diameter, W/ Reinforcement	-
-	-	1	Steel Disk Rear Wheels, 2 Position, TW20BX42, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, 2 Position, TW18LX42, W/ Reinforcement	-
-	-	1	Steel Disk Rear Wheels, 2 Position, TW18LX42, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, 2 Position, TW15LX30, 275 mm Bolt Circle Diameter	-
-	-	1	Steel Disk Rear Wheels, 2 Position, DW23AX38	-
-	-	1	Steel Disk Rear Wheels, 2 Position, DW20BX38	-
-	-	1	Steel Disk Rear Wheels, 2 Position, DW16LX42	-
-	-	1	Steel Disk Rear Wheels, 2 Position, DW15LX38, 275 mm Bolt Circle Diameter	-
-	-	1	Cast Rear Wheels, DW10X50, Rack and Pinion Axle	-
-	-	1	Front Wheels, Adjustable, 8 Position, DW15AX30, 3 Piece MFWD Axle	-
-	-	1	Front Wheels, Adjustable, 16 Position, W10HX38, 3 Piece MFWD Axle	-
-	-	1	Front Wheels, Adjustable, 16 Position, DW10X38	-
-	-	1	Cast Rear Wheels, WH10AX54, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheels, W18AX38, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheels, W16AX38, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheels, DW20AX42, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheels, DW18LX42, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheels, DW16LX46, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheels, DW16LX42, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheels, DW13X46	-
-	-	1	Cast Rear Wheels, DW12AX50, Rack and Pinion Axle	-
-	-	1	Hub Extension, 219 mm, Front, Tread Adjustment, Attachment	-
-	-	1	Cast Rear Wheel Rims, W18LX38, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheel Rims, W16LX38, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheel Rims, TW20BX42, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheel Rims, TW18LX42, Rack and Pinion Axle, 814 Bolt Circle Diameter	-
-	-	1	Cast Rear Wheel Rims, TW16LX46, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheel Rims, MW23AX38, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheel Rims, DW16LX42, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheel Rims, DW13X46, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheel Rims, DW12X50, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheel Rims, DW10X54, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheel Rims, DW10X50, Rack and Pinion Axle	-
-	-	1	Cast Rear Wheel Disk, Rack and Pinion Axle, 814 mm Bolt Circle Diameter	-
-	-	1	Rear Wheel Weights, 2 Weights, Outside Rear Wheel, 55 kg (121 lb)	-
-	-	1	Rear Wheels, TW18LX42	-
-	-	1	Rear Wheels, TW18LX38, 275MM Bolt Circle Diameter	-
-	-	1	Rear Wheels, DW15LX30	-
-	-	1	Rear Wheel, Fixed, DW21AX34	-
-	-	1	Rear Wheel, Fixed, DW18LX38	-
-	-	1	Rear Wheel, Adjustable, 16 Position, TW23BX38	-
-	-	1	Rear Wheel Weights, 4 Weights, Outside Rear Wheel, 72 Kg (159 lb) / 205 kg (452 lb)	-
-	-	1	Rear Wheel Weights, 4 Weights, Outside Rear Wheel, 55 kg (121 lb)	-
-	-	1	Rear Wheel Weights, 4 Weights, Outside Rear Wheel, 250 kg (551 lb)	-
-	-	1	Rear Wheel Weights, 4 Weights, Outside Rear Wheel, 205 kg (452 lb)	-
-	-	1	Rear Wheel Weights, 4 Weights, Inside Rear Wheel, W/ Reinforcement, 55 kg (121 lb)	-
-	-	1	Rear Wheel Weights, 4 Weights, Inside Rear Wheel, 55 kg (121 lb)	-
-	-	1	Attachment, Rear Wheel Weights Mounting Parts, W/ 38 mm Distance Flange, 275 mm Bolt Circle Diameter	-
-	-	1	Rear Wheel Weights, 2 Weights, Outside Rear Wheel, 250 kg (551 lb)	-
-	-	1	Rear Wheel Weights, 2 Weights, Outside Rear Wheel, 100 kg (220 lb) / 250 kg (551 lb)	-
-	-	1	Rear Wheel Weights, 2 Weights, Outside Rear Wheel, 100 kg (220 lb)	-
-	-	1	Rear Wheel Weights, 2 Weights, Inside Rear Wheel, W/ Reinforcement, 55 kg (121 lb)	-
-	-	1	Rear Wheel Weights, 2 Weights, Inside Rear Wheel, 55 kg (121 lb)	-
-	-	1	Rear Wheel Weight Mounting Parts, W/ Wheel Spacer 38 mm, W/ Stud Bolt - Nut, 275 mm Bolt Circle Diameter	-
-	-	1	Rear Wheel Weight Mounting Parts, W/ Wheel Spacer 38 mm, W/ Screws, 275 mm Bolt Circle Diameter	-
-	-	1	Mounting Parts, Front Wheels	-
-	-	1	Hub Extension, 94 mm, Rear, Tread Adjustment, Attachment	-
-	-	1	Hub Extension, 94 mm, Front, Tread Adjustment, Attachment	-
-	-	1	Hub Extension, 219 mm, Rear, Tread Adjustment, Attachment	-

CHC Wheels, Tires and Weights

Нет текстового описания
