Wiring Harness, Front Chassis, W/O Front Controller (924527 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7146	2	Washer	4.300 X 12 X 1 mm
2	19M8078	2	Cap Screw	M4 X 16
3	14M7139	2	Nut	M4
4	L206271	1	Clamp	-
5	24M7054	2	Washer	6.400 X 12 X 1.600 mm
6	19M6614	2	Cap Screw	M6 X 12
7	57M9856	1	Clamp	-
8	57M8093	1	Fuse Holder	-
9	AL156697	2	Relay	-
10	14M7298	4	Flange Nut	M8
11	AL159725	3	Clamp	-
12	L222276	1	Bracket	-
13	L156556	1	Clamp	-
14	L169020	2	Clip	-
15	AL226789	1	Wiring Harness	SUB FOR AL224897
16	L156248	1	Clamp	-
17	L173956	1	Clamp	-
18	L215887	1	Heat Shield	-
19	L153768	2	Clip	-
20	L152663	2	Weatherstrip	-
21	L102323	3	Clamp	-
22	L206645	1	Tie Band	-
23	L110534	1	Clip	-
24	57M12234	14	Elec. Connector Accessory	-
25	AL173227	2	Clip	-
26	AL228059	1	Wiring Harness	-
27	AL218232	1	Wiring Harness	-
28	14M7296	1	Flange Nut	M10
29	R264173	1	Bolt	-
30	L171035	1	Tie Band	-
31	57M8080	1	Elec. Connector Accessory	-
31	57M7401	5	Elec. Connector Cavity Plug	Cavity 1, 2, 5, 6, 7
31	57M7399	1	Elec. Connector Seal	Cavity 10
31	57M7400	4	Elec. Connector Seal	Cavity 3, 4, 8, 9
31	57M9042	4	Elec. Connector Terminal	Cavity 3, 4, 8, 9
31	57M8068	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W501 and W521, X1079M
31	57M8074	1	Elec. Connector Terminal	-
32	57M8481	1	Elec. Connector Terminal	Radiator Ground Connection, X305F
33	57M7254	1	Elec. Connector Housing	Coolant Level Loss Switch, X676F-2
33	57M8218	1	Elec. Connector Accessory	-
33	57M10770	2	Elec. Connector Terminal	Cavity A, B
33	57M9215	2	Elec. Connector Seal	Cavity A, B
34	57M9772	1	Elec. Connector Housing	Water in Fuel Sensor, X690F-2
34	57M9837	1	Elec. Connector Accessory	-
34	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
35	57M7054	1	Elec. Connector Terminal	Fuel Pump, X804F-4
36	57M11295	1	Elec. Connector Terminal	Fuel Pump, X804F-3
37	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
37	57M10155	1	Elec. Connector Accessory	-
37	57M9776	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 or W512 and W522, X575M
38	57M11279	1	Elec. Connector Housing	Connector of Connection for F01PLB Fuses, X547F
38	57M11234	1	Elec. Connector Terminal	Cavity A
38	57M11236	1	Elec. Connector Seal	Ccavity A
39	57M12075	1	Elec. Connector Housing	Fuses for Engine Control Unit, F027
39	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
40	57M8435	1	Fuse Holder	Fuses for Engine Control Unit, F028
40	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
41	57M12075	1	Elec. Connector Housing	Fuses for Engine Control Unit, F029
41	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
42	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1316M
42	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
42	57M11134	1	Elec. Connector Housing	-
43	57M8239	4	Elec. Connector Terminal	Cavity 6, 7, 8, 9
43	57M8233	1	Electrical Connector Assy	Starter Relay 2, K003
43	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
43	57M8237	2	Elec. Connector Seal	Cavity 1, 2
44	57M8233	1	Electrical Connector Assy	Starter Relay 1, K002
44	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
44	57M8237	2	Elec. Connector Seal	Cavity 1, 2
44	57M8239	4	Elec. Connector Terminal	Cavity 6, 7, 8, 9
45	57M9215	2	Elec. Connector Seal	Cavity C, D
45	L114840	1	Cap	-
45	57M7291	1	Electrical Connector Assy	-
45	57M7259	2	Elec. Connector Seal	Cavity E, F
45	57M9214	2	Elec. Connector Seal	Cavity A, B
45	57M10770	2	Elec. Connector Terminal	Cavity C, D
45	57M7494	2	Elec. Connector Terminal	Cavity A, B
45	57M7260	1	Elec. Connector Housing	Connection Point between Harnesses W451 and W471, X637F-1
46	57M8730	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 and W201 or W202, X782F
46	57M8738	1	Elec. Connector Accessory	-
46	57M7401	2	Elec. Connector Cavity Plug	Cavity 57, 61, 62
46	57M7403	40	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 6, 12, 13, 15, 17, 18, 21, 22, 23, 24, 26, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 42, 43, 44, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56
46	57M7400	1	Elec. Connector Seal	Cavity 60
46	57M7399	2	Elec. Connector Seal	Cavity 58, 59
46	57M7402	7	Elec. Connector Cable Seal	Cavity 11, 14, 27, 40, 41, 45, 46
46	57M8241	9	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 16, 19, 20, 25
46	57M8584	1	Elec. Connector Terminal	Cavity 60
46	57M8585	2	Elec. Connector Terminal	Cavity 58, 59
46	57M9161	16	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 11, 14, 16, 19, 20, 25, 27, 40, 41, 45, 46
47	57M8081	1	Elec. Connector Accessory	-
47	57M7401	1	Elec. Connector Cavity Plug	Cavity 7
47	57M7399	5	Elec. Connector Seal	Cavity 4, 6, 8, 9, 10
47	57M8079	5	Elec. Connector Terminal	Cavity 4, 6, 8, 9, 10
47	57M9532	4	Elec. Connector Terminal	Cavity 1, 2, 3, 5
47	57M8071	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W102 or W101, X1233F
47	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 5
48	57M7382	1	Elec. Connector Terminal	Ground Point, XGND9F
49	57M7411	1	Elec. Connector Terminal	Ground Point, XGND9E
50	57M8069	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W501 and W511, X1080M
50	57M9042	1	Elec. Connector Terminal	Cavity 7
50	57M7399	5	Elec. Connector Seal	Cavity 3, 4, 5, 10, 12
50	57M7400	2	Elec. Connector Seal	Cavity 6, 7
50	57M7401	9	Elec. Connector Cavity Plug	Cavity 1, 2, 8, 9, 11, 13, 14, 15, 16
50	57M8075	1	Elec. Connector Seal	-
50	57M8082	1	Elec. Connector Accessory	-
51	57M10336	38	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 45, 46, 47, 48, 49, 51, 52, 53, 54
51	R528122	1	Elec. Connector Accessory	-
51	57M13590	2	Elec. Connector Accessory	-
51	57M10321	14	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 50
51	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
51	RE538505	1	Elec. Connector Accessory	X021F-3
52	57M7170	1	Elec. Connector Housing	Radiator Ground Connection, X305F-1
52	57M7106	1	Elec. Connector Terminal	Cavity A
53	57M7214	1	Elec. Connector Housing	Horn, X066F-2
53	57M7430	1	Elec. Connector Terminal	Cavity 1
54	57M7214	1	Elec. Connector Housing	Horn, X066F-1
54	57M7430	1	Elec. Connector Terminal	Cavity 1
55	57M9772	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W522, X575F
55	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
55	57M10155	1	Elec. Connector Accessory	-
55	57M11333	1	Elec. Connector Accessory	-
56	57M9772	1	Elec. Connector Housing	Heating Element of Fuel Preheater, X079F-2
56	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
56	57M11333	1	Elec. Connector Accessory	-

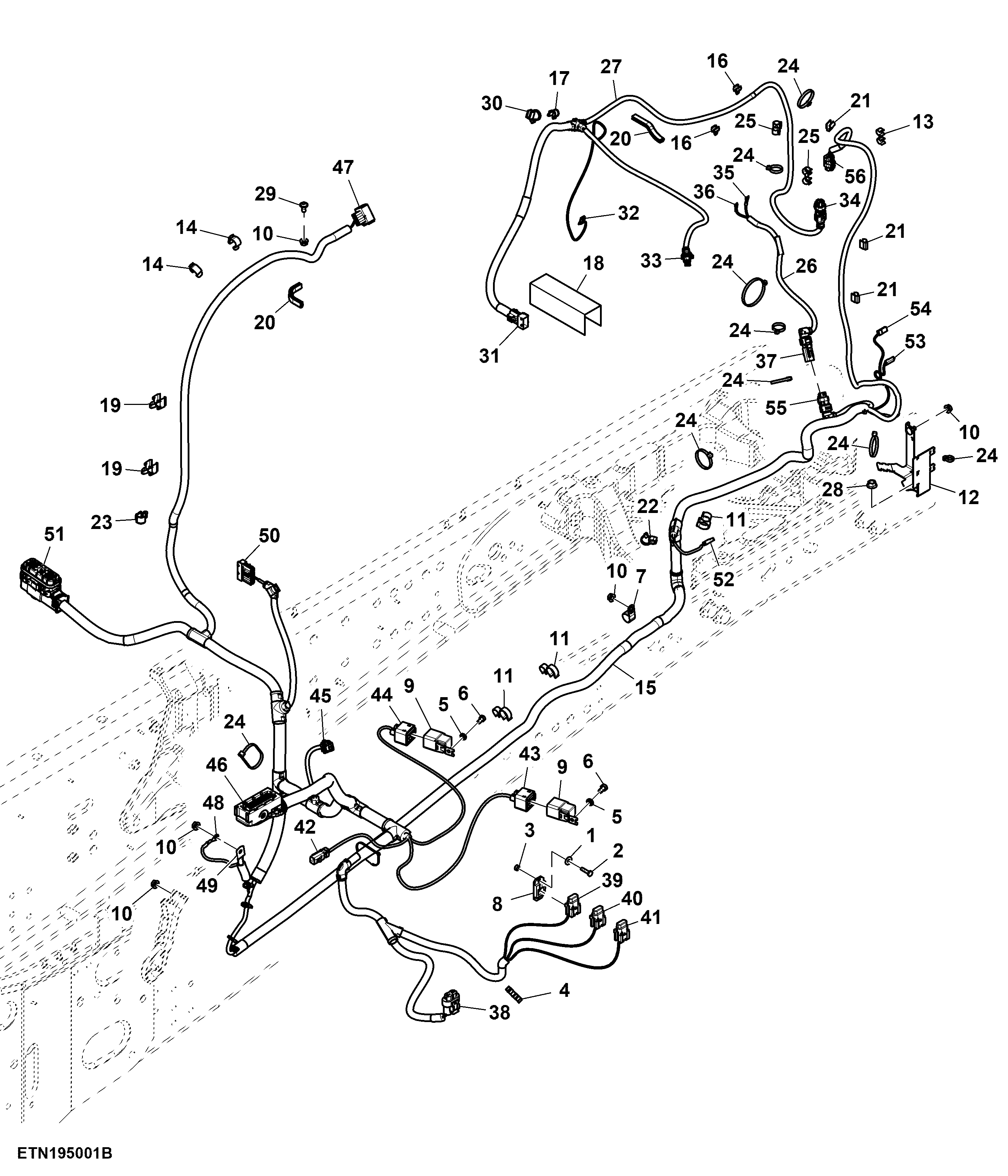

Wiring Harness, Front Chassis, W/O Front Controller (924527 - )
