Wiring Harness, Engine (2/4) ( - 924519)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

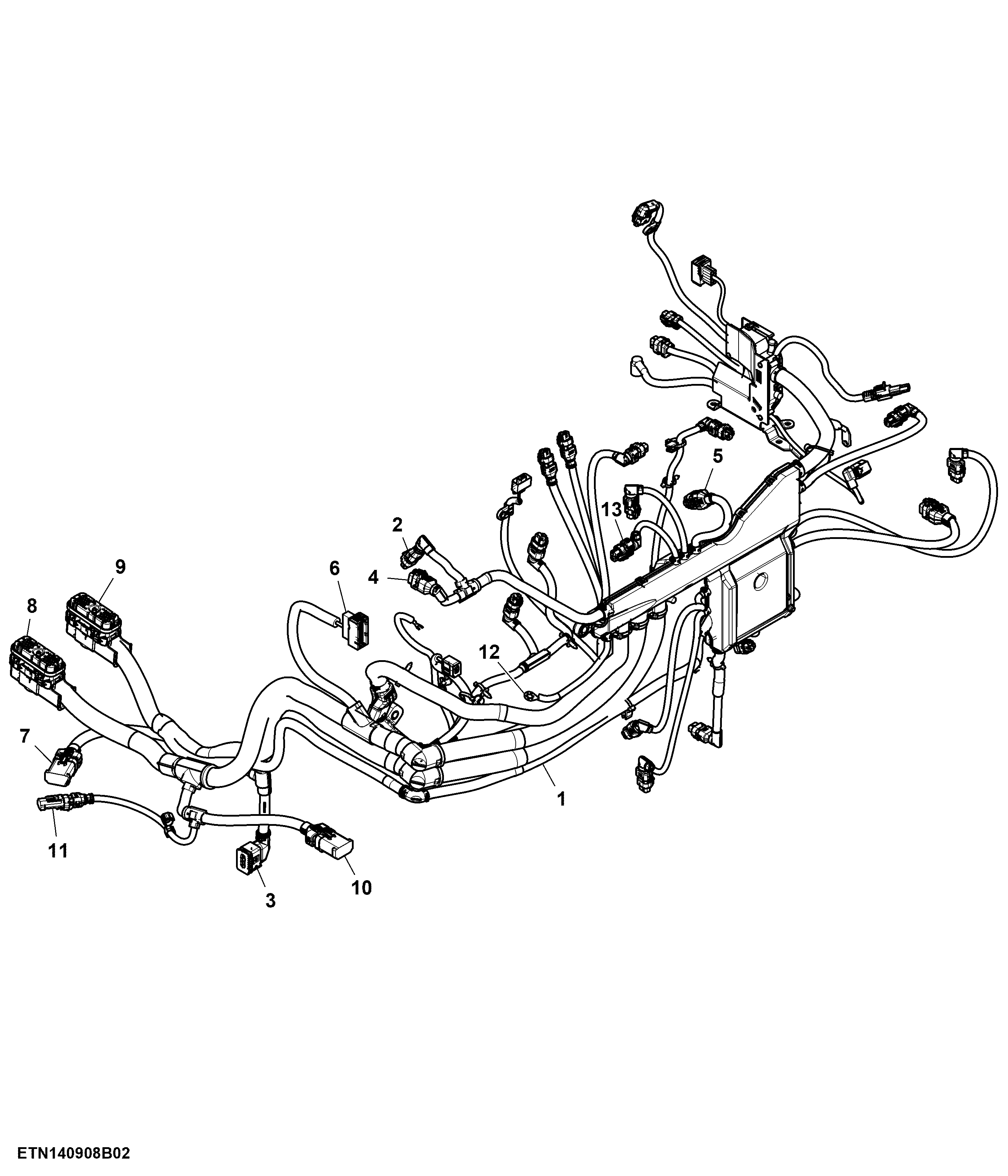

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL227572	1	Wiring Harness	-
1	AL224640	1	Wiring Harness	ORDER AL227572
2	57M9782	1	Elec. Connector Housing	Exhaust Manifold Pressure Sensor, X664F-2
2	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
2	57M9850	1	Elec. Connector Accessory	-
3	57M7403	2	Elec. Connector Cavity Plug	Cavity 1, 7
3	57M13072	1	Elec. Connector Accessory	-
3	57M11439	1	Elec. Connector Accessory	-
3	57M8241	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
3	57M11248	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
3	57M10958	1	Elec. Connector Housing	DEF Dosing Unit, X685F-2
4	57M9786	1	Elec. Connector Housing	Actuator for EGR Valve, X705F-2
4	57M10321	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
4	57M10336	1	Elec. Connector Cavity Plug	Cavity 5
4	57M10230	1	Elec. Connector Accessory	-
5	57M9786	1	Elec. Connector Housing	Air Throttle Actuator, X706F
5	57M9841	1	Elec. Connector Accessory	-
5	57M10336	1	Elec. Connector Cavity Plug	Cavity 5
5	57M10321	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
6	57M8072	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W501 and W511, X1080F
6	57M8079	4	Elec. Connector Terminal	Cavity 3, 4, 5, 10
6	57M9146	1	Elec. Connector Terminal	Cavity 6
6	57M9532	1	Elec. Connector Terminal	Cavity 7
6	57M7399	4	Elec. Connector Seal	Cavity 3, 4, 5, 10
6	57M7400	2	Elec. Connector Seal	Cavity 6, 7
6	57M7401	10	Elec. Connector Cavity Plug	Cavity 1, 2, 8, 9, 11, 12, 13, 14, 15, 16
6	57M8083	1	Elec. Connector Accessory	-
7	57M11338	1	Elec. Connector Accessory	-
7	57M10631	8	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 8, 9, 12
7	57M9844	1	Elec. Connector Accessory	-
7	57M9802	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W542, X1253F
7	57M9808	4	Elec. Connector Terminal	Cavity 4, 5, 10, 11
8	RE538504	1	Elec. Connector Accessory	Engine Controller, X021F-2
8	57M10321	35	Elec. Connector Terminal	Cavity 1, 5, 6, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 20, 21, 22, 24, 25, 27, 28, 29, 31, 36, 37, 38, 39, 40, 41, 42, 46, 47, 51, 52, 53, 54
8	57M9808	3	Elec. Connector Terminal	Cavity 35, 44, 50
8	57M10336	16	Elec. Connector Cavity Plug	Cavity 2, 3, 4, 7, 8, 19, 23, 26, 30, 32, 33, 34, 43, 45, 48, 49
8	R528122	1	Elec. Connector Accessory	-
9	RE538503	1	Elec. Connector Accessory	Engine Controller, X021F-1
9	57M9808	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 13, 33, 43, 44, 45, 46
9	57M10321	40	Elec. Connector Terminal	Cavity 5, 6, 7, 8, 9, 10, 11, 12, 14, 15, 16, 17, 18, 19, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 34, 35, 36, 37, 38, 39, 41, 42, 48, 49, 50, 51, 52, 54
9	57M10336	4	Elec. Connector Cavity Plug	Cavity 20, 40, 47, 53
9	R528122	1	Elec. Connector Accessory	-
10	57M9809	1	Elec. Connector Terminal	Cavity 1
10	57M11338	1	Elec. Connector Accessory	-
10	57M9844	1	Elec. Connector Accessory	-
10	57M10336	1	Elec. Connector Cavity Plug	Cavity 8
10	57M9808	2	Elec. Connector Terminal	Cavity 11, 12
10	57M10631	8	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10
10	57M9800	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W531, X1053F
11	57M9775	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W501 and W543, X077F
11	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
11	57M15493	1	Elec. Connector Accessory	-
11	57M11333	1	Elec. Connector Accessory	-
12	57M7111	1	Elec. Connector Terminal	Ground Point, XGND74
13	57M9780	1	Elec. Connector Housing	EGR Flow Sensor, X665F
13	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	57M10156	1	Elec. Connector Accessory	-
