Открытый узел

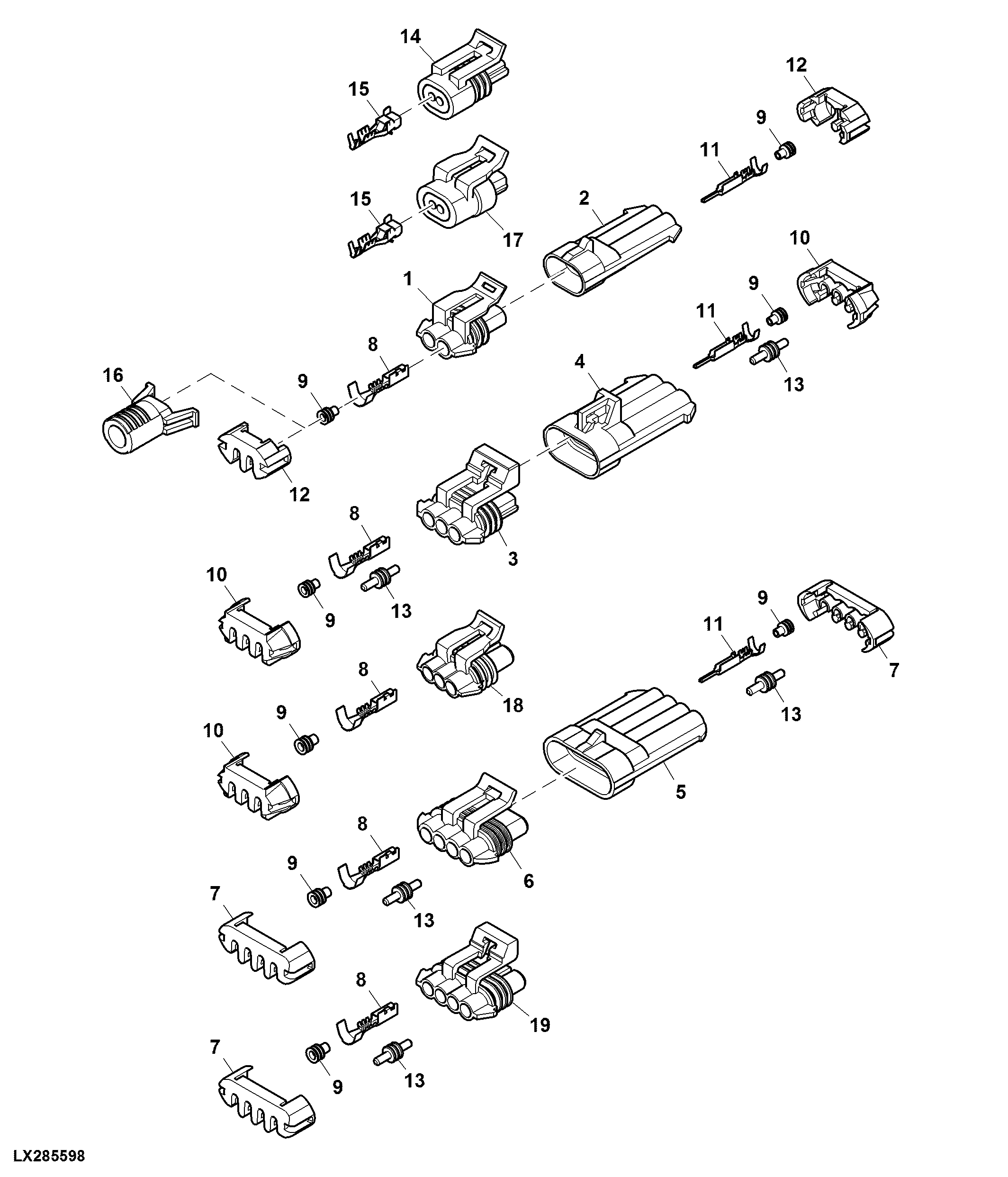

Connectors, 2-, 3- and 4- Terminal, Metri Pack

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7328	1	Elec. Connector Housing	Gray
1	57M7254	1	Elec. Connector Housing	Black
2	57M7985	1	Electrical Connector Assy	Gray
2	57M7256	1	Elec. Connector Housing	Black
3	57M7255	1	Elec. Connector Housing	Black
4	57M7257	1	Elec. Connector Housing	-
5	57M7244	1	Elec. Connector Housing	-
6	57M8416	1	Elec. Connector Housing	-
6	57M7247	1	Elec. Connector Housing	-
7	57M7469	1	Electrical Connector Assy	Black
7	57M7318	1	Elec. Connector Accessory	Black, USE WITH 57M7364
7	57M9598	1	Elec.Connect Locking Device	Gray
8	57M7494	1	Elec. Connector Terminal	0.35 - 0.5 mm², Cable Gauge Plug Width
8	R104846	1	Elec. Connector Terminal	0.5 - 1.0 mm² / 1.5 mm, Cable Gauge Plug Width
8	57M9541	1	Elec. Connector Terminal	2.0 - 2.1 mm², Cable Gauge Plug Width
9	57M9215	1	Elec. Connector Seal	CABLE OD = 1.20 - 1.85 mm, White
9	57M7493	1	Elec. Connector Seal	CABLE OD = 1.60 - 2.15 mm, White
9	57M9214	1	Elec. Connector Seal	Blue
9	57M7258	1	Elec. Connector Seal	Red
10	57M9702	1	Elec. Connector Accessory	Black
10	57M7317	1	Elec. Connector Accessory	Natural
10	57M7290	1	Elec. Connector Accessory	White
10	57M9713	1	Elec. Connector Accessory	Green
11	57M7495	1	Elec. Connector Terminal	0.35 - 0.5 mm², Cable Gauge Plug Width
11	R104919	1	Elec. Connector Terminal	0.5 - 1.0 mm² / 1.5 mm, Cable Gauge Plug Width
11	57M9546	1	Elec. Connector Terminal	1.5 mm², Cable Gauge Plug Width
11	57M11342	1	Elec. Connector Terminal	1.5 - 2.0 mm², Cable Gauge Plug Width
12	57M7289	2	Elec.Connect Locking Device	Black
12	57M9712	2	Elec. Connector Accessory	Blue
13	57M7259	1	Elec. Connector Seal	Red
14	57M7379	1	Elec. Connector Housing	Black
14	57M9336	1	Elec. Connector Housing	Gray
14	57M7813	1	Elec. Connector Housing	Gray
15	57M7829	1	Elec. Connector Terminal	0.8 - 1.0 mm², Cable Gauge Plug Width
16	57M8218	1	Elec. Connector Accessory	-
17	57M9571	1	Elec. Connector Housing	Natural
18	57M7687	1	Elec. Connector Housing	-
19	57M7364	1	Elec. Connector Housing	Black

Connectors, 2-, 3- and 4- Terminal, Metri Pack

Нет текстового описания
