Secondary Brake Wiring Harness

Secondary Brake Wiring Harness

Secondary Brake Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

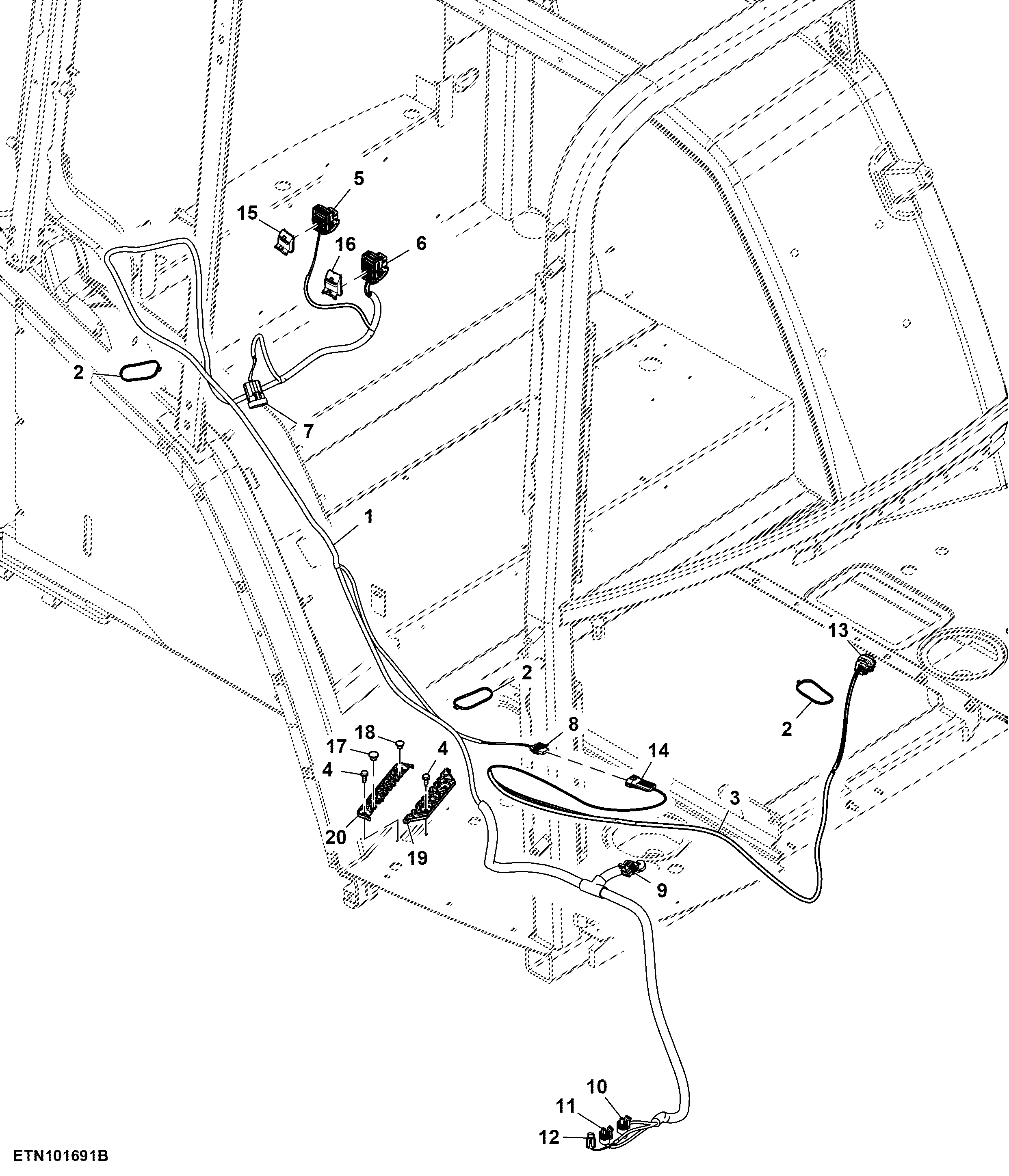

Secondary Brake Wiring Harness

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL207314	1	Wiring Harness	AutoTrac™
2	H77698	7	Tie Band	-
3	AL207316	1	Wiring Harness	Steering Input Device
4	37M7361	4	Screw	M6 X 16
5	57M10609	1	Elec. Connector Housing	Black X1103F - 1
5	57M10604	1	Elec. Connector Housing	-
5	57M8532	1	Elec. Connector Seal	-
5	57M8533	1	Elec. Connector Seal	-
5	57M10330	3	Elec. Connector Terminal	Cavity A2, C4, E3
6	57M10331	8	Elec. Connector Terminal	Cavity L1, L2, L3, L4, M1, M2, M3, M4
6	57M10330	11	Elec. Connector Terminal	Cavity B1, D2, E1, E2, F1, G1, H1, J1, J2, K2, K3
6	57M8533	1	Elec. Connector Seal	-
6	57M8532	1	Elec. Connector Seal	-
6	57M10615	1	Elec. Connector Housing	Brown X1103F - 2
7	57M7264	1	Elec. Connector Housing	Interface Cab X641M
7	57M7252	5	Elec. Connector Terminal	Cavity B, C, F, G, H
7	57M7493	4	Elec. Connector Seal	Cavity B, C, H, D
7	57M9214	2	Elec. Connector Seal	Cavity A, E, F, G
8	57M8416	1	Elec. Connector Housing	Interface SID X837F
8	57M7318	1	Elec. Connector Accessory	-
8	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
8	57M7493	4	Elec. Connector Seal	Cavity A, B, C, D
8	57M7259	1	Elec. Connector Seal	-
9	57M7260	1	Elec. Connector Housing	Interface WAS X637F - 1
9	57M7259	1	Elec. Connector Seal	-
9	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
9	57M7291	1	Electrical Connector Assy	-
9	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
10	57M7813	1	Elec. Connector Housing	Steer Left X1104F - 2
10	57M7829	2	Elec. Connector Terminal	Cavity A, B
11	57M7813	1	Elec. Connector Housing	Steer Right X1104F - 3
11	57M7829	2	Elec. Connector Terminal	Cavity A, B
12	57M7379	1	Elec. Connector Housing	Steer OFF X1104F - 1
12	57M7829	2	Elec. Connector Terminal	Cavity A, B
13	57M9814	1	Elec. Connector Cavity Plug	-
13	57M9807	6	Elec. Connector Terminal	Caity 1, 2, 3, 4, 5, 6
13	57M9786	1	Elec. Connector Housing	X632F
14	57M7244	1	Elec. Connector Housing	X837M
14	57M7252	4	Elec. Connector Terminal	Cavity A, B, C, D
14	57M7493	4	Elec. Connector Seal	Cavity A, B, C, D
14	57M7259	1	Elec. Connector Seal	-
15	57M10604	1	Elec. Connector Housing	-
16	57M10613	1	Elec. Connector Housing	-
17	99M7015	3	Plug	-
18	99M7059	4	Plug	-
19	L222601	1	Partition	-
20	L225001	1	Channel	SUB FOR L220138
