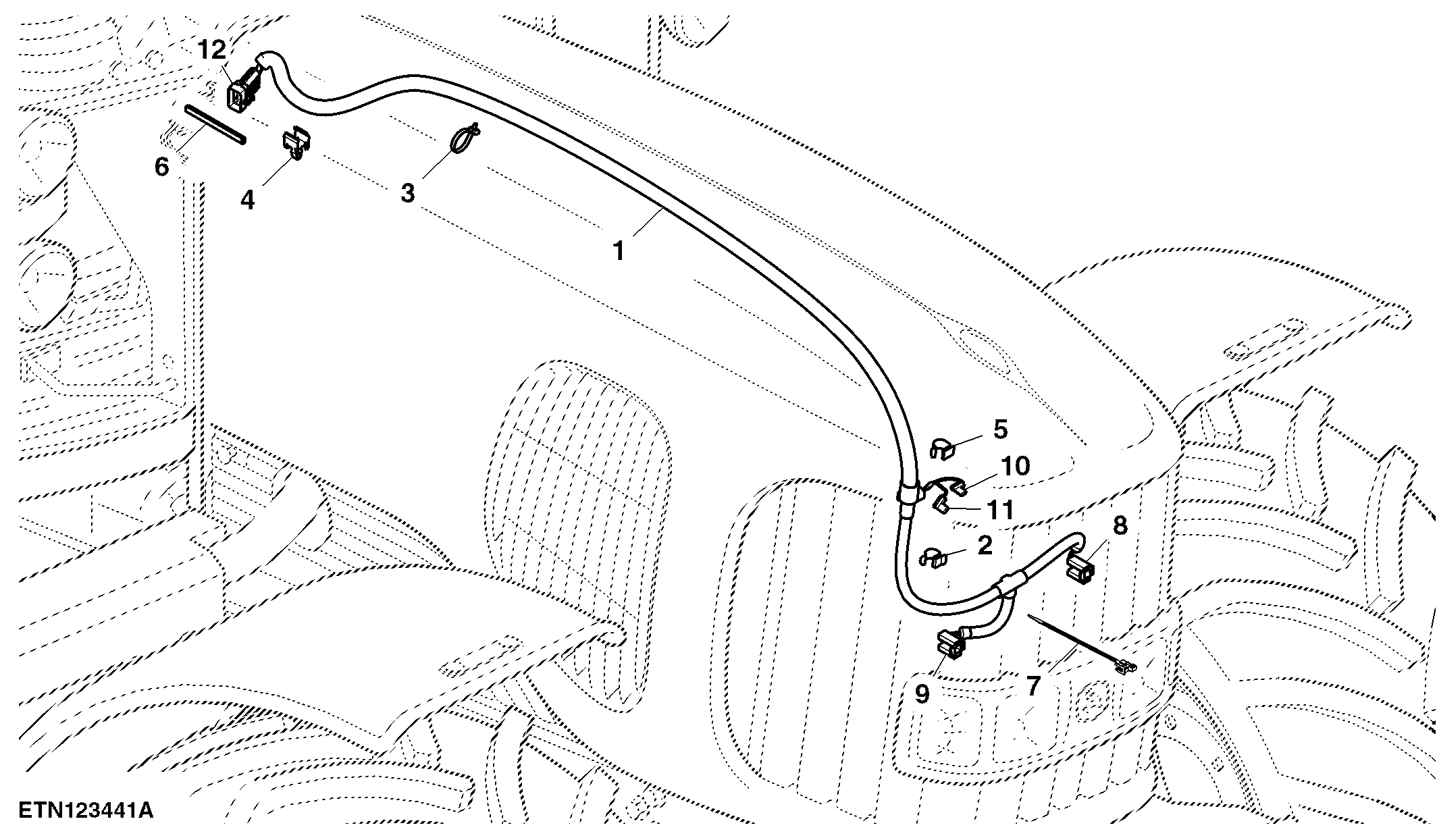

Head Light Wiring Harness, W/O Cornering Lamp

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL224053	1	Wiring Harness	-
2	L111827	1	Clamp	-
3	R44302	2	Tie Band	-
4	L153768	1	Clip	-
5	L169020	1	Clip	-
6	R219535	1	Isolator	LGTH = 100 mm
7	L171035	4	Tie Band	-
8	57M7343	1	Elec. Connector Housing	Front Left Head Light X068F
8	57M7347	1	Elec. Connector Accessory	-
8	57M10770	3	Elec. Connector Terminal	-
8	57M9215	3	Elec. Connector Seal	-
9	57M7347	1	Elec. Connector Accessory	-
9	57M9215	3	Elec. Connector Seal	-
9	57M10770	3	Elec. Connector Terminal	-
9	57M7343	1	Elec. Connector Housing	Head Light Front Right X067F
10	57M7984	1	Elec. Connector Terminal	Horn X066F-2
10	57M8024	1	Elec. Connector Terminal	Cavity 1
11	57M7984	1	Elec. Connector Terminal	Horn X066F-1
11	57M8024	1	Elec. Connector Terminal	Cavity 1
12	57M7265	1	Elec. Connector Housing	Inline Engine X411M
12	57M7281	1	Elec.Connect Locking Device	-
12	57M7252	7	Elec. Connector Terminal	Cavity B-H
12	57M9215	7	Elec. Connector Seal	Cavity B-H
12	57M7259	3	Elec. Connector Seal	Cavity A, J, K

Head Light Wiring Harness, W/O Cornering Lamp

Нет текстового описания
