Открытый узел

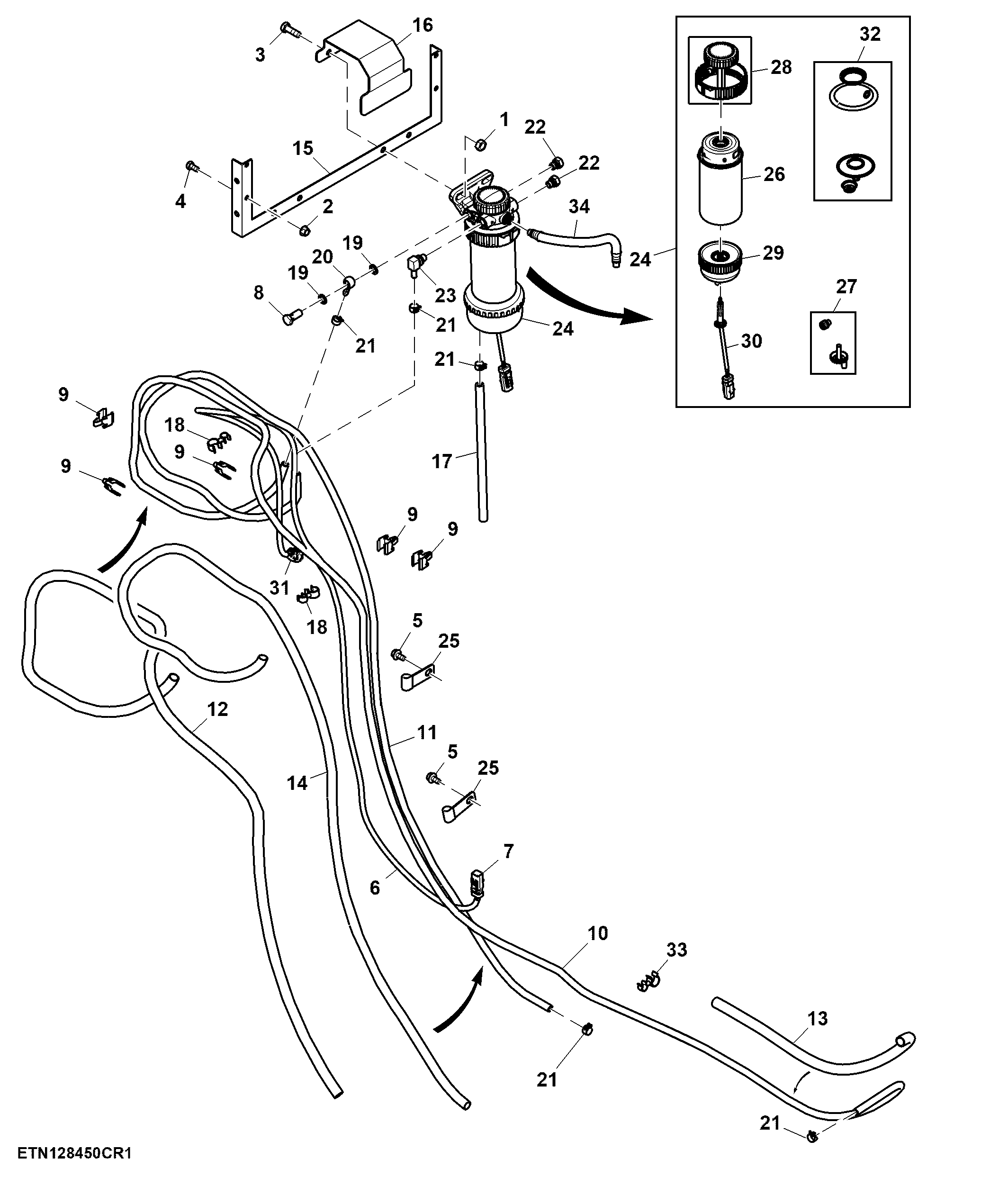

Primary Fuel Filter, W/ Water Separator

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7140	2	Nut	M10
2	14M7298	4	Flange Nut	M8
3	19M3146	2	Cap Screw	M10 X 30
4	19M7162	4	Cap Screw	M8 X 16
5	19M7865	2	Screw	M8 X 16
6	AL218727	1	Sensor Wiring Harness	Wiring Harness INCLUDES 57M9730 AND 57M9726
7	57M9730	1	Elec. Connector Housing	2W, Red
8	38M7004	1	Hollow Screw	SUB FOR 38M6640
9	L153768	5	Clip	-
10	L216177	1	Hose	Inlet, Primary Fuel Filter
11	L216178	1	Hose	Outlet, Primary Fuel Filter
12	L216189	1	Hose Guard	Inlet, Primary Fuel Filter
13	L216190	1	Tube	Inlet, Primary Fuel Filter
14	L216191	1	Hose Guard	Outlet, Primary Fuel Filter
15	L216192	1	Bracket	Primary Fuel Filter, Fixed
16	L216196	1	Guard	Primary Fuel Filter, Fixed
17	L216574	1	Hose	Drain, Primary Fuel Filter
18	R232182	2	Clip	-
19	R504067	2	Washer	-
20	R524103	1	Adapter Fitting	-
21	M133148	5	Clamp	SUB FOR R56101
22	RE46686	2	Fitting Plug	-
23	RE500044	1	Hose Fitting	-
24	RE569586	1	Fuel Filter	-
25	SU21056	2	Clamp	-
26	RE541922	1	Filter Element	Filter Element
27	RE60854	1	Valve Kit	Primary Fuel Filter
28	RE526834	1	Filter Kit	-
29	RE572481	1	Sediment Bowl	Water Bowl
30	RE545631	1	Sensor	Water in Fuel
31	57M9726	1	Elec. Connector Housing	2W, Red
32	RE516553	1	Seal Kit	Fuel Filter Seal
33	R215302	1	Clip	-
34	AL167860	1	Hose	Formed

Primary Fuel Filter, W/ Water Separator
