Brake, Manual Dual Stage Valve W/ Pedals

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL212933	1	Valve	Brake Valve
2	AL110475	1	Plug	OD = 6.3 mm, Expander
3	L100271	2	Set Screw	-
4	L150408	2	Pin	OD = 5 mm
5	L150409	2	Pin	OD = 10 mm
6	L150055	2	Compression Spring	-
7	51M7078	2	O-Ring	8 X 1.200 mm
8	L172088	2	Pipe Plug	-
9	19M9255	1	Screw	M12 X 180
10	T13624	2	Ball	-
11	51M7048	2	O-Ring	29.600 X 2.900 mm
12	L171413	2	Fitting Plug	-
13	L112784	2	Compression Spring	-
14	L154392	2	Poppet	-
15	L102649	2	Compression Spring	-
16	L174362	2	Seal	-
17	L174363	2	Snap Ring	-
18	L112781	2	Screw	-
19	L171022	2	Piston	-
20	L173615	2	Sealing Ring	-
21	L115682	2	Scraper Ring	-
22	51M7072	2	O-Ring	32.600 X 2.900 mm
23	19M7163	2	Cap Screw	M8 X 25
24	AL150109	2	Check Valve	Check Valve
25	L11698	2	O-Ring	-
26	L113190	1	Gasket	-
27	AL206812	1	Cover	Brake Valve
28	L113186	1	Pan	-
29	19M7560	6	Cap Screw	M6 X 16
30	19M7775	2	Screw	M6 X 16
31	51M7041	2	O-Ring	11.300 X 2.200 mm
32	L102638	2	Fitting	-
33	T77613	2	O-Ring	-
34	AL211147	1	Pedal	-
35	14M7274	2	Nut	M10
36	AL211395	2	Sleeve	-
37	L210413	2	Bushing	Brake Pedal Main Bearing
38	L210414	2	Bushing	Brake Pedal Main Bearing
39	L210419	1	Bail	Brake Pedal Locking
40	40M7030	2	Snap Ring	-
41	14M7273	4	Nut	M8
42	34M7174	1	Spring Pin	4 X 14 mm
43	AL112163	1	Pin Fastener	-
44	L76532	1	Pin Fastener	-
45	40M7051	2	Snap Ring	-
46	AL156199	1	Pressure Switch	Brake Light Switch
47	19M9163	1	Screw	M12 X 40
48	L210421	2	Set Screw	-

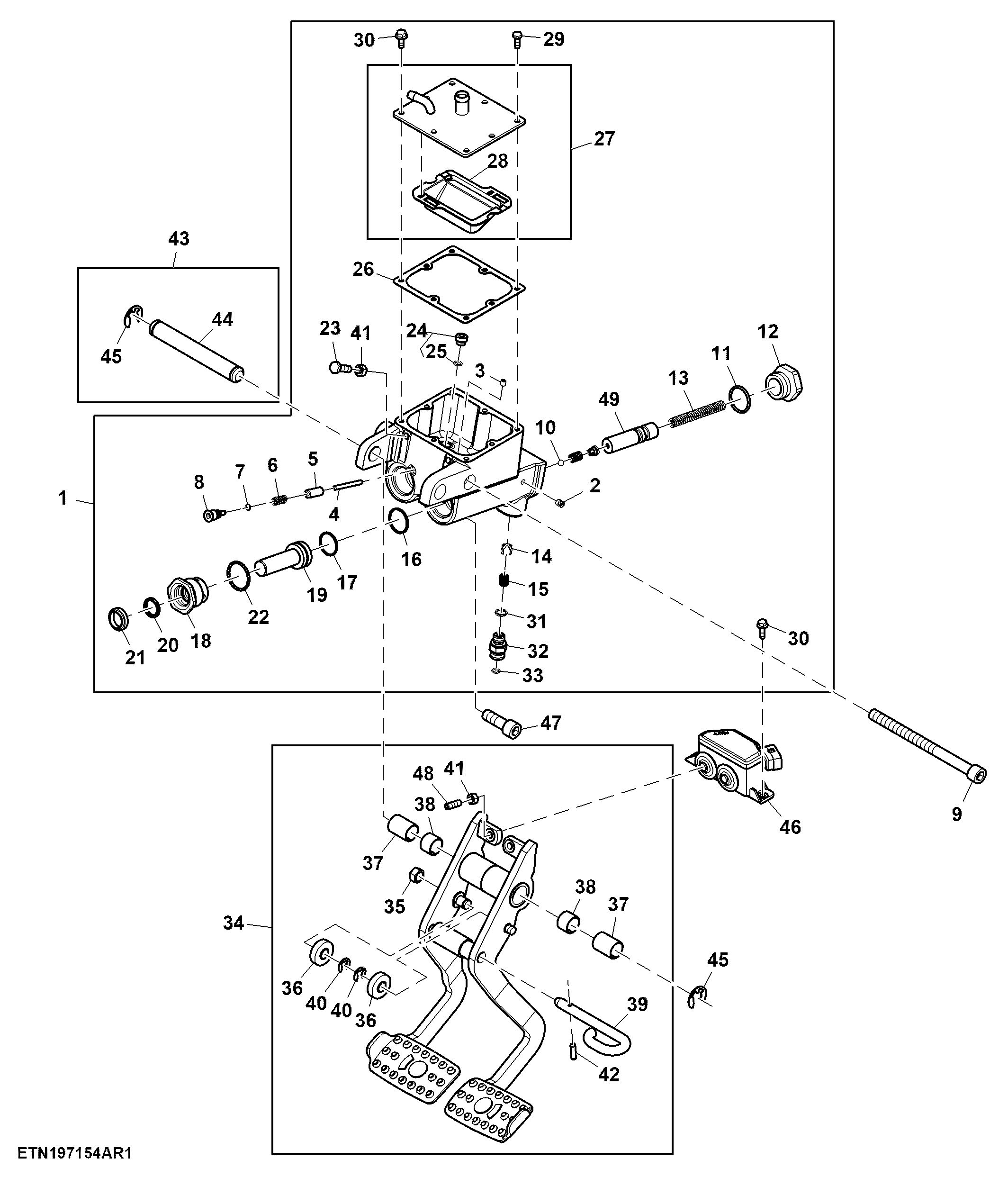

Brake, Manual Dual Stage Valve W/ Pedals
