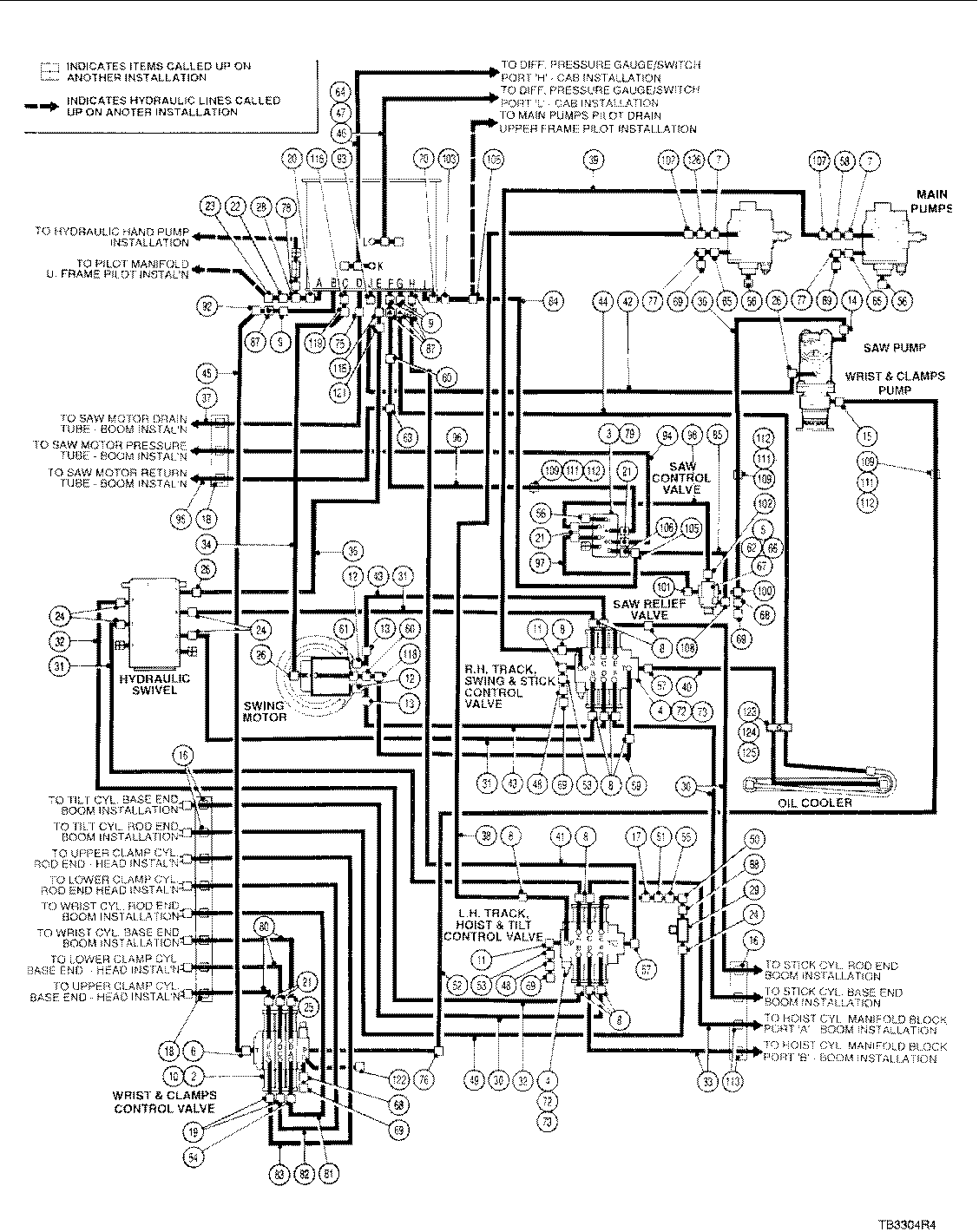

HYDRAULIC SYSTEM UPPER FRAME PRESSURE & RETURN ( CI9147 - ) 2000-182/10 [2000-182/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	-------	1	O-RING	-
3	-------	1	O-RING	-
4	-------	2	O-RING	-
5	-------	1	O-RING	-
6	810115500	1	FITTING	-
7	700620700	2	FLANGE KIT -	-
8	811168000	14	FLANGE KIT -	-
9	840547100	4	O-RING -	-
10	810082400	3	BOLT*1/2-13UNCX1-3/4	-
11	810617600	2	O-RING -	-
12	700396100	2	FLANGE	-
13	842153500	8	BOLT*M10X1.50-40 -	-
14	811622700	1	FLANGE KIT -	-
15	811168000	1	FLANGE KIT -	-
16	700579700	4	Clamp	-
17	810686800	4	BOLT*3/8-16UNCX1-1/2 -	-
18	700579800	9	Clamp	-
19	811439800	2	ADAPTER -	-
20	810943100	1	FITTING	-
21	811439600	6	ADAPTER -	-
22	810859000	1	Adapter Fitting	-
23	700577600	1	ELBOW-45 -	-
24	811441300	5	ADAPTER -	-
25	701362100	1	ADAPTER -	-
26	810112100	3	ELBOW-90 DEG.	-
28	810354000	1	TEE	-
29	700308800	1	VALVE CONTROL -	-
30	811293200	3	HOSE-HYD*1.00X118C -	-
31	811397500	3	HOSE-HYD*1.00X69	-
32	811397400	1	HOSE-HYD*1.00X60	-
33	811306600	2	HOSE-HYD*1.00X116C -	-
34	811245900	1	HOSE-HYD*0.50X30 -	-
35	811247500	1	HOSE-HYD*0.5X72 -	-
36	811307400	1	HOSE-HYD*0.75X148C -	-
37	811407600	1	HOSE-HYD*0.75X77C -	-
38	811292700	1	HOSE-HYD*1.00X63C -	-
39	811292500	1	HOSE-HYD*1.00X53C -	-
40	811705900	1	HOSE-HYD*1.00X118 -	-
41	811397900	1	HOSE-HYD*1.00X46 -	-
42	811432200	1	HOSE-HYD*0.5X92 -	-
43	811303700	2	HOSE-HYD*1.00X28 -	-
44	811706000	1	HOSE-HYD*1.00X106 -	-
45	810480100	1	HOSE-HYD*1.00X48 -	-
46	811415500	2	HOSE-HYD*0.25X185 -	-
47	810639800	2	TEE -	-
48	810564100	2	ELBOW-90 DEG. -	-
49	811279500	1	HOSE-HYD*1.00X110C -	-
50	810353500	1	ELBOW-90 DEG.	-
51	810574200	1	O-RING	-
52	811327600	1	HOSE-HYD*0.75X120C -	-
53	810578200	2	FITTING*.25/.438-20	-
54	701362200	1	ADAPTER -	-
55	700312400	1	Adapter Fitting	-
56	810583800	2	PLUG -	-
57	811621800	2	FLANGE KIT -	-
58	701210300	2	ADAPTER -	-
59	811397600	1	HOSE-HYD*0.75X28 -	-
60	810293100	2	FITTING -	-
61	811478000	1	ELBOW-90 DEG. -	-
62	700882300	2	TUBE -	-
63	810399500	1	TEE -	-
64	810626000	2	CAP -	-
65	810606200	2	CONNECTOR	-
66	810102600	2	BOLT*5/16-18UCX2-1/2	-
67	810087300	2	NUT*5/16-18UNC	-
68	---------	1	FELLING HEAD	-
69	700578000	6	COUPLER-TEST -	-
70	810566300	3	FITTING	-
72	810082700	2	BOLT 1/2 - 13 UNC X 2-1/2	-
73	810379500	4	BOLT*1/2-13UNCX4	-
74	700592000	2	PLUG -	-
75	810115800	1	FITTING 3/4 MJIC 3/4	-
76	811437600	1	ELBOW-90 -	-
77	810564100	2	ELBOW-90 DEG. -	-
78	810943500	1	FITTING	-
79	810428700	4	BOLT5/16-18UNC1 - FOR JOYSTICK SEAT	-
80	811285700	3	HOSE-HYD*0.75X92C -	-
81	811288100	1	HOSE-HYD*0.75X102 -	-
82	811288000	1	HOSE-HYD*0.75X98C -	-
83	811285900	1	HOSE-HYD*0.75X95C -	-
84	811428700	1	HOSE-HYD*0.25X27 -	-
85	811428900	1	HOSE-HYD*0.25X33 -	-
87	700591700	4	Check Valve	-
88	826096000	1	ADAPTOR -	-
92	810441800	1	ELBOW-45 DEG.	-
93	810067900	1	PLUG	-
94	811276500	1	HOSE-HYD*0.75X116C -	-
95	811719500	1	HOSE-HYD*0.75X80 -	-
96	811694600	1	HOSE-HYD*0.75X26 -	-
97	811267100	1	HOSE-HYD*0.75X28 -	-
98	811267300	1	HOSE-HYD*0.75X30 -	-
100	700568000	1	ELBOW -	-
101	811437700	1	ELBOW-90 DEG. -	-
102	811439500	1	ADAPTER -	-
103	810721500	1	FITTING	-
105	810915700	2	TEE -	-
106	810334300	1	ADAPTER	-
107	811494600	2	O-RING -	-
108	810057600	1	ELBOW-90 DEG. -	-
109	811714100	2	CLAMP -	-
111	810011600	2	WASHER*1/2	-
112	810087700	2	NUT*1/2-13UNC	-
113	810054500	2	CLAMP	-
116	810490900	2	FITTING 1/2 MJIC 3/4 -	-
117	810433800	1	ELBOW-90 DEG.	-
118	810447100	1	ELBOW-90 DEG. -	-
119	810466600	1	FITTING-45 DEG.	-
121	810579400	1	TEE-JIC/JIC/JIC -	-
122	810381800	1	PLUG	-
123	810080100	1	HEX HEAD BOLT 3/8-16 UNC X 1	-
124	810087500	1	HEX NUT 3/8-16 UNC	-
125	811708800	2	CLAMP -	-
126	701210200	1	ADAPTER -	-
-	810420700	2	ELBOW-90 DEG. -	-
-	810120000	2	FITTING*NPTF 0.25-18 -	-
-	811446800	1	O-RING -	-
-	700577900	6	COUPLER-TEST - UP TO CB9313	-
-	810920200	2	ELBOW-90 DEG. -	-
