HYDRAULIC SYSTEM UPPER FRAME PRESSURE & RETURN ( 52703 - ) 2000-343/10 [2000-343/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	700381400	1	FRAME - UPPER - HYDRAULIC SYSTEM	-
2	-------	1	O-RING	-
3	-------	1	O-RING	-
4	-------	2	O-RING	-
5	-------	1	O-RING	-
7	700620700	4	FLANGE KIT -	-
8	811168000	14	FLANGE KIT -	-
9	840547100	4	O-RING -	-
10	810082400	3	BOLT*1/2-13UNCX1-3/4	-
11	810617600	2	O-RING -	-
12	700396100	2	FLANGE	-
13	842153500	8	BOLT*M10X1.50-40 -	-
14	811622700	1	FLANGE KIT -	-
16	700579700	5	Clamp	-
17	810686800	4	BOLT*3/8-16UNCX1-1/2 -	-
18	700579800	9	Clamp	-
19	811439800	3	ADAPTER -	-
20	810943100	1	FITTING	-
21	811439600	8	ADAPTER -	-
22	810085900	1	BOLT*.8750-9UNCX4.00	-
23	700577600	1	ELBOW-45 -	-
24	811441300	5	ADAPTER -	-
26	810112100	3	ELBOW-90 DEG.	-
28	810354000	1	TEE	-
29	700308800	1	VALVE CONTROL -	-
30	811293200	3	HOSE-HYD*1.00X118C -	-
31	811397500	3	HOSE-HYD*1.00X69	-
32	811397400	1	HOSE-HYD*1.00X60	-
33	811279700	2	HOSE-HYD*1.00X116C	-
34	811245900	1	HOSE-HYD*0.50X30 -	-
35	811247500	1	HOSE-HYD*0.5X72 -	-
36	811307400	1	HOSE-HYD*0.75X148C -	-
37	811407300	1	HOSE-HYD*1.00X77C	-
38	811309100	1	HOSE-HYD*1.00X64C	-
39	811308800	1	HOSE-HYD*1.00X54C	-
40	811688700	1	HOSE-HYD*1.00X118	-
41	811428200	1	HOSE-HYD*1.00X45	-
42	811432300	1	HOSE-HYD*0.5X92C	-
43	811289900	2	HOSE-HYD*1.00X27	-
44	811688600	1	HOSE-HYD*1.00X122	-
45	810480100	1	HOSE-HYD*1.00X48 -	-
46	811415500	2	HOSE-HYD*0.25X185 -	-
47	810639800	2	TEE -	-
48	810420700	2	ELBOW-90 DEG. -	-
49	811279500	1	HOSE-HYD*1.00X110C -	-
50	810353500	1	ELBOW-90 DEG.	-
51	810574200	1	O-RING	-
55	700312400	1	Adapter Fitting	-
56	810583800	4	PLUG -	-
57	811441300	1	ADAPTER -	-
58	811441800	2	ADAPTER	-
59	811397600	1	HOSE-HYD*0.75X28 -	-
60	810447100	1	ELBOW-90 DEG. -	-
61	810115800	1	FITTING 3/4 MJIC 3/4	-
63	826096000	1	ADAPTOR -	-
64	810626000	2	CAP -	-
65	810606200	4	CONNECTOR	-
66	810102600	2	BOLT*5/16-18UCX2-1/2	-
67	810087300	2	NUT*5/16-18UNC	-
68	810120000	4	FITTING*NPTF 0.25-18 -	-
69	700577900	8	COUPLER-TEST - UP TO CB9313	-
70	810566300	2	FITTING	-
71	811621800	2	FLANGE KIT -	-
72	810082700	2	BOLT 1/2 - 13 UNC X 2-1/2	-
73	810379500	4	BOLT*1/2-13UNCX4	-
74	810115800	1	FITTING 3/4 MJIC 3/4	-
75	700591600	1	VALVE-CHECK	-
76	811437600	1	ELBOW-90 -	-
77	810920200	4	ELBOW-90 DEG. -	-
78	810943500	1	FITTING	-
79	810428700	4	BOLT5/16-18UNC1 - FOR JOYSTICK SEAT	-
80	811285700	3	HOSE-HYD*0.75X92C -	-
81	811288100	1	HOSE-HYD*0.75X102 -	-
82	811288000	1	HOSE-HYD*0.75X98C -	-
83	811285900	1	HOSE-HYD*0.75X95C -	-
84	811428700	1	HOSE-HYD*0.25X27 -	-
85	811428900	1	HOSE-HYD*0.25X33 -	-
86	810281500	2	CONNECTOR	-
87	700591700	2	Check Valve	-
92	810236600	1	FITTING	-
93	810067900	1	PLUG	-
94	811276500	1	HOSE-HYD*0.75X116C -	-
95	811406800	1	HOSE-HYD*0.75X106C	-
96	811285100	1	HOSE-HYD*0.75X74	-
97	811267100	1	HOSE-HYD*0.75X28 -	-
98	811267300	1	HOSE-HYD*0.75X30 -	-
99	811407400	1	HOSE-HYD*1.00X85C	-
100	700568000	1	ELBOW -	-
101	811437700	1	ELBOW-90 DEG. -	-
102	811439500	1	ADAPTER -	-
103	810721500	1	FITTING	-
104	810225000	1	NUT	-
105	810915700	2	TEE -	-
106	810334300	1	ADAPTER	-
107	811494600	2	O-RING -	-
108	810057600	1	ELBOW-90 DEG. -	-
109	811714100	2	CLAMP -	-
111	810011600	2	WASHER*1/2	-
112	810087700	2	NUT*1/2-13UNC	-
113	811459000	2	CLAMP	-
116	810490800	2	FITTING	-
117	810433800	1	ELBOW-90 DEG.	-
118	810447100	1	ELBOW-90 DEG. -	-
119	810466600	1	FITTING-45 DEG.	-
126	700455700	2	TUBE	-
127	811186600	2	TEE	-
128	810915700	2	TEE -	-
129	-------	1	O-RING	-
130	-------	1	O-RING	-
131	810080200	2	BOLT*3/8-16UNCX1-1/4	-
132	810309800	2	FLAT WASHER 3/8 - HARDENED	-
133	810399600	1	TEE	-
134	811434100	1	HOSE-HYD*1.00X83	-
135	810995100	1	HOSE-HYD*1.00X72	-
136	811193600	3	FITTING	-
137	810273500	2	Elbow Fitting	-
138	811511600	1	HOSE-HYD*1.00X25	-
-	-	1	Part 118	-
-	-	1	Part 119	-
-	-	1	Part 120	-
-	-	1	Part 121	-
-	-	1	Part 122	-
-	-	1	Part 123	-
-	-	1	Part 124	-
-	-	1	Part 125	-

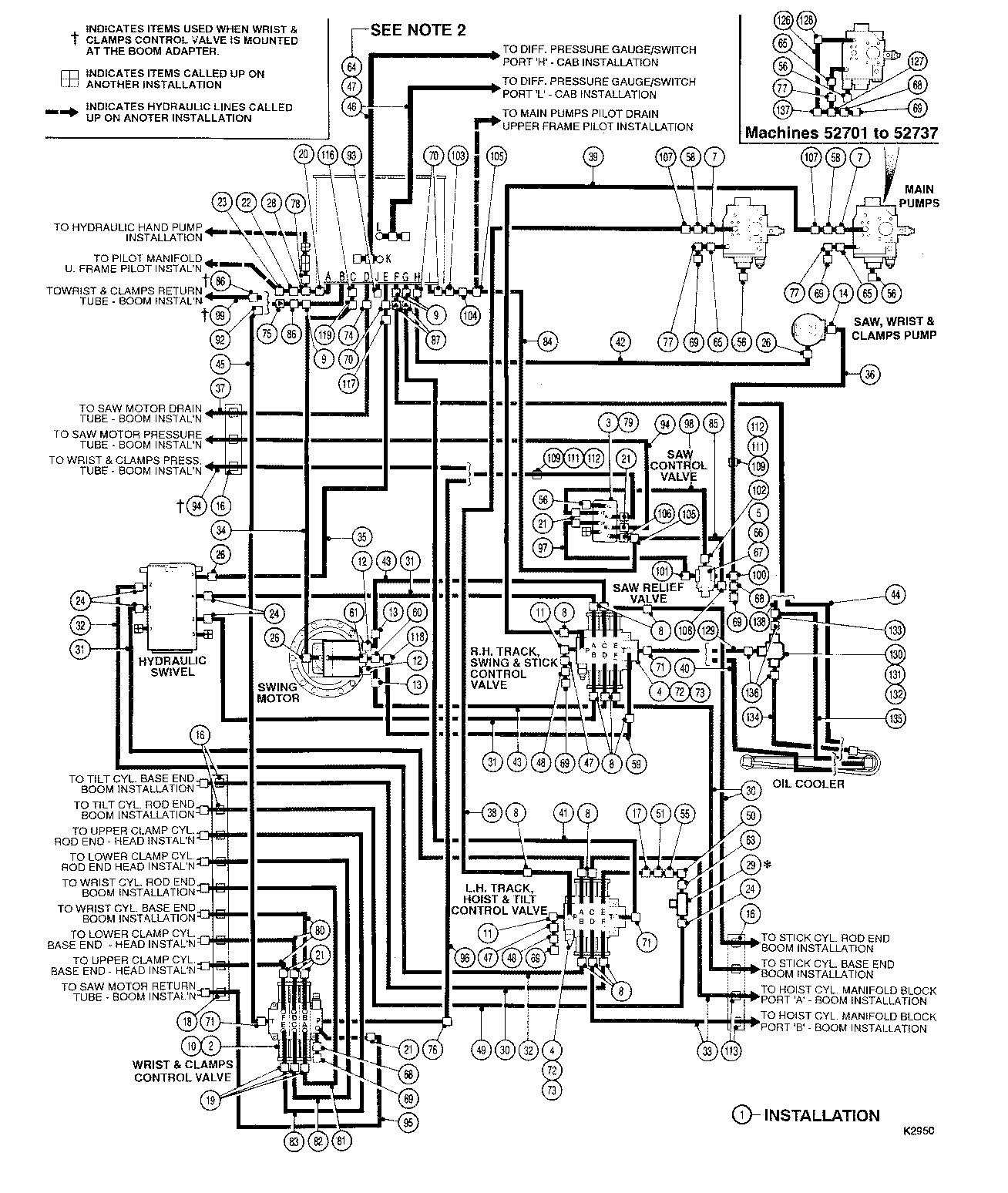

HYDRAULIC SYSTEM UPPER FRAME PRESSURE & RETURN ( 52703 - ) 2000-343/10 [2000-343/10]
