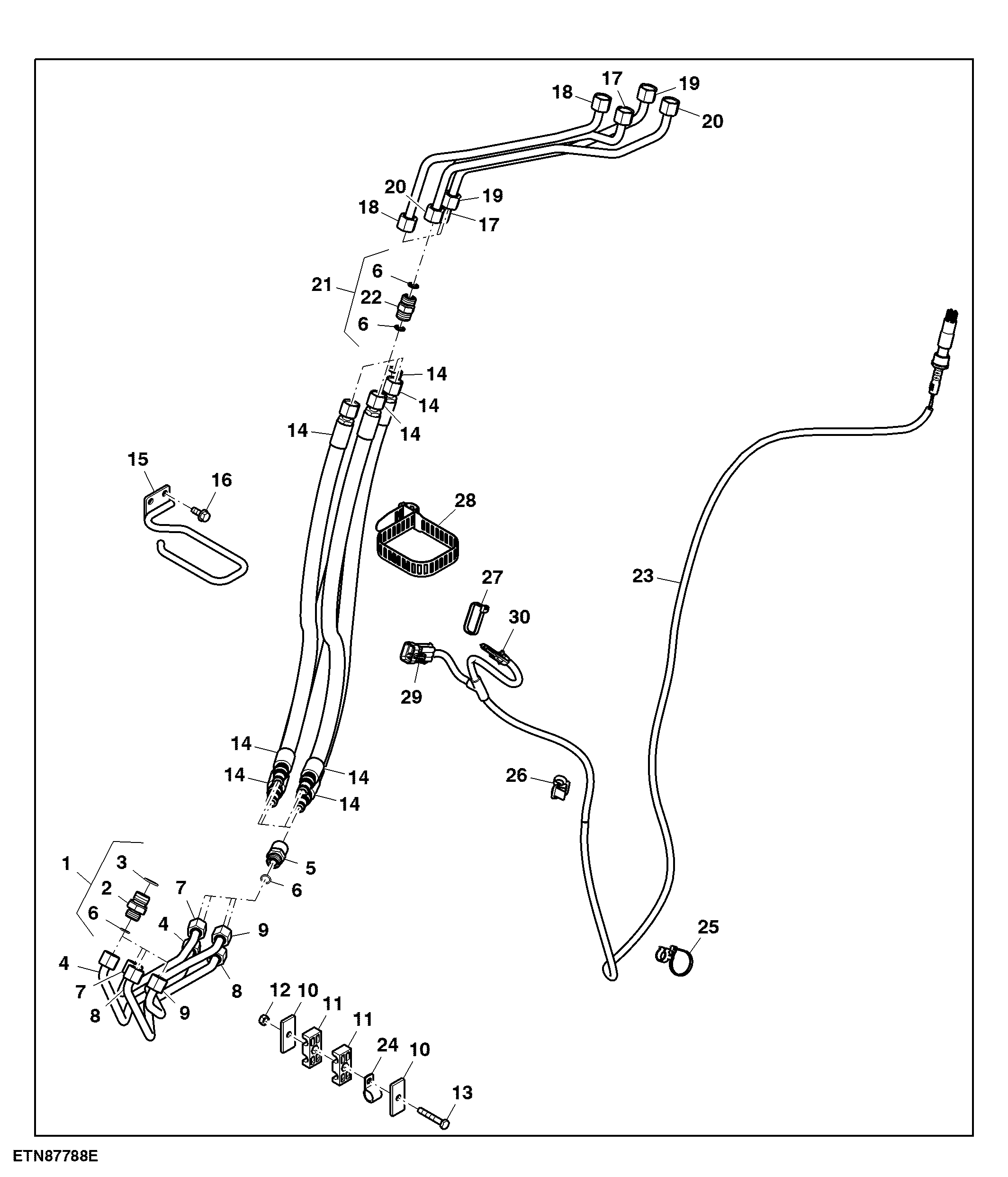

Hydraulic Oil Lines / Hoses / Fittings, Multi Coupler, Front Loader, W/ Loader Control, 2 Functions

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	61M5076	4	Adapter Fitting	ORDER T77857, 38H5076 AND 51M7045
2	38H5076	4	Adapter Fitting	-
3	51M7045	4	O-Ring	19.300 X 2.200 mm
4	AL215557	1	Oil Line	-
5	AL201229	4	Adapter Fitting	-
6	T77857	16	O-Ring	-
7	AL216065	1	Oil Line	-
8	AL215558	1	Oil Line	-
9	AL216066	1	Oil Line	-
10	L167533	4	Strap	-
11	L167530	4	Clamp	-
12	14M7273	1	Nut	M8
13	19M7164	2	Cap Screw	M8 X 50
14	AL216517	4	Hydraulic Hose	LGTH = 855 mm
14	AL216069	4	Hydraulic Hose	LGTH = 1213 mm
15	AL211491	1	Bracket	-
16	19M7866	2	Screw	M8 X 20
17	AL214079	1	Oil Line	-
18	AL214078	1	Oil Line	-
19	AL214081	1	Oil Line	-
20	AL214080	1	Oil Line	-
21	61M5128	4	Union Fitting	ORDER T77857, 38H5128
22	38H5128	4	Union Fitting	-
23	DC214930	1	Wiring Harness	-
24	AH77724	2	Clip	-
25	L210203	1	Clip	-
26	L171201	1	Clip	-
27	R44302	2	Tie Band	-
28	L203103	1	Tie Band	-
29	57M7263	1	Elec. Connector Housing	Mechanical Multi-Function Lever, XL312M
29	R104919	4	Elec. Connector Terminal	Cavity 1, 2, 3, 5
29	57M7258	4	Elec. Connector Seal	Cavity 1, 2, 3, 5
29	57M7291	1	Electrical Connector Assy	-
30	57M7985	1	Electrical Connector Assy	Switch for Dampening (Front Loader), XL423M
30	R104919	2	Elec. Connector Terminal	Cavity 1, 2
30	57M7258	2	Elec. Connector Seal	Cavity 1, 2
30	57M7289	1	Elec.Connect Locking Device	-

Hydraulic Oil Lines / Hoses / Fittings, Multi Coupler, Front Loader, W/ Loader Control, 2 Functions
