Wiring Harness, Front Chassis, W/O Front Controller, W/O Front PTO (866041 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL222552	1	Wiring Harness	-
2	14M7298	6	Flange Nut	M8
3	14M7139	2	Nut	M4
4	19M6614	2	Cap Screw	M6 X 12
5	AL156697	2	Relay	-
6	24M7054	2	Washer	6.400 X 12 X 1.600 mm
7	L153768	3	Clip	-
8	L169020	2	Clip	-
9	L152663	2	Weatherstrip	LGTH =90 mm
10	R44302	12	Tie Band	-
11	AL159725	3	Clamp	-
12	L211112	1	Bracket	-
13	L102323	4	Clamp	-
14	24M7146	2	Washer	4.300 X 12 X 1 mm
15	L156556	3	Clamp	-
16	L156248	2	Clamp	-
17	L110534	1	Clip	-
18	AL222879	1	Wiring Harness	-
19	19M8078	2	Cap Screw	M4 X 16
20	AL215069	1	Wiring Harness	-
21	57M8093	1	Fuse Holder	-
22	57M9856	1	Clamp	-
23	L173956	1	Clamp	-
24	L215887	1	Heat Shield	-
25	L206271	1	Clamp	-
26	L206645	1	Tie Band	-
27	57M8233	1	Electrical Connector Assy	Starter Relay 1, K002
27	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
27	57M8237	2	Elec. Connector Seal	Cavity 1, 2
28	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
28	57M8237	2	Elec. Connector Seal	Cavity 1, 2
28	57M8233	1	Electrical Connector Assy	Starter Relay 2, K003
29	57M11279	1	Elec. Connector Housing	Connector of Connection for F01PLB Fuses, X547F-1
29	57M11234	1	Elec. Connector Terminal	Cavity A
29	57M11236	1	Elec. Connector Seal	Cavity A
30	57M12075	1	Elec. Connector Housing	Fuse, F027
30	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
31	57M8435	1	Fuse Holder	Fuse, F028
31	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
32	57M12075	1	Elec. Connector Housing	Fuse, F027
32	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
33	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1316M
33	57M11134	1	Elec. Connector Housing	-
33	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
34	57M8081	1	Elec. Connector Accessory	-
34	57M7401	1	Elec. Connector Cavity Plug	Cavity 7
34	57M7399	5	Elec. Connector Seal	Cavity 4, 6, 8, 9, 10
34	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 5
34	57M8079	5	Elec. Connector Terminal	Cavity 4, 6, 8, 9, 10
34	57M9532	4	Elec. Connector Terminal	Cavity 1, 2, 3, 5
34	57M8071	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W102, X1233F
35	57M8069	1	Elec. Connector Housing	Inline Engine, X1080M
35	57M8075	1	Elec. Connector Seal	-
35	57M8082	1	Elec. Connector Accessory	-
35	57M9042	1	Elec. Connector Terminal	Cavity 7
35	57M7399	5	Elec. Connector Seal	Cavity 3, 4, 5, 10, 12
35	57M7400	2	Elec. Connector Seal	Cavity 6, 7
35	57M7401	9	Elec. Connector Cavity Plug	Cavity 1, 2, 8, 9, 11, 13, 14, 15, 16
36	RE538505	1	Elec. Connector Accessory	Engine Controller FT4, X1022F-3
36	57M10336	38	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 45, 46, 47, 48, 49, 51, 52, 53, 54
36	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
36	57M10321	14	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 50
37	57M9772	1	Elec. Connector Housing	Fuel Preheater, X079F-2
37	57M11333	1	Elec. Connector Accessory	-
37	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
38	57M7984	1	Elec. Connector Terminal	Horn, X066F-1
38	57M8024	1	Elec. Connector Terminal	Cavity A
39	57M7984	1	Elec. Connector Terminal	Horn, X066F-2
39	57M8024	1	Elec. Connector Terminal	Cavity A
40	57M9772	1	Elec. Connector Housing	Inline Fuel Pump, X575F
40	57M10155	1	Elec. Connector Accessory	-
40	57M11333	1	Elec. Connector Accessory	-
40	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
41	57M7170	1	Elec. Connector Housing	Inline Adapter Ground Cooler, X305F-1
41	57M7106	1	Elec. Connector Terminal	Cavity A
42	57M7411	1	Elec. Connector Terminal	Ground Connection, XGND9E
43	57M7382	1	Elec. Connector Terminal	Ground Connection, XGND9F
44	57M7260	1	Elec. Connector Housing	Inline Was Sensor, X637F-1
44	57M7291	1	Electrical Connector Assy	-
44	L114840	1	Cap	-
44	57M7494	2	Elec. Connector Terminal	Cavity A, B
44	57M10770	2	Elec. Connector Terminal	Cavity C, D
44	57M9214	2	Elec. Connector Seal	Cavity A, B
44	57M9215	2	Elec. Connector Seal	Cavity C, D
44	57M7259	2	Elec. Connector Seal	Cavity E, F
45	57M7401	3	Elec. Connector Cavity Plug	Cavity 57, 61, 62
45	57M7403	40	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 6, 12, 13, 15, 17, 18, 21, 22, 23, 24, 26, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 42, 43, 44, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56
45	57M7400	1	Elec. Connector Seal	Cavity 60
45	57M8584	1	Elec. Connector Terminal	Cavity 60
45	57M7399	2	Elec. Connector Seal	Cavity 58, 59
45	57M8241	9	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 16, 19, 20, 25
45	57M8585	2	Elec. Connector Terminal	Cavity 58, 59
45	57M9161	16	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 11, 14, 16, 19, 20, 25, 27, 40, 41, 45, 46
45	57M8730	1	Elec. Connector Housing	Inline Cab, X872F
45	57M7402	7	Elec. Connector Cable Seal	Cavity 11, 14, 27, 40, 41, 45, 46
46	57M8068	1	Elec. Connector Housing	Inline Engine, X1079M
46	57M8074	1	Elec. Connector Terminal	-
46	57M8080	1	Elec. Connector Accessory	-
46	57M9042	6	Elec. Connector Terminal	Cavity 3, 4, 5, 6, 8, 9
46	57M7400	6	Elec. Connector Seal	Cavity 3, 4, 5, 6, 8, 9
46	57M7399	1	Elec. Connector Seal	Cavity 10
46	57M7401	3	Elec. Connector Cavity Plug	Cavity 1, 2, 7
47	57M8481	1	Elec. Connector Terminal	Cooler Ground, X305F
48	57M7254	1	Elec. Connector Housing	Coolant Level Loss Switch, X676F-2
48	57M9215	2	Elec. Connector Seal	Cavity A, B
48	57M10770	2	Elec. Connector Terminal	Cavity A, B
48	57M8218	1	Elec. Connector Accessory	-
49	57M9776	1	Elec. Connector Housing	Bus Terminator, X1055F
49	57M11134	1	Elec. Connector Housing	-
49	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
50	57M9772	1	Elec. Connector Housing	Water in Fuel Sensor, X690F-2
50	57M9837	1	Elec. Connector Accessory	-
50	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
51	57M9776	1	Elec. Connector Housing	Inline Engine, X575M
51	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
52	57M7054	1	Elec. Connector Terminal	Fuel Pump, X804F-2
53	57M11295	1	Elec. Connector Terminal	Fuel Pump, X804F-1

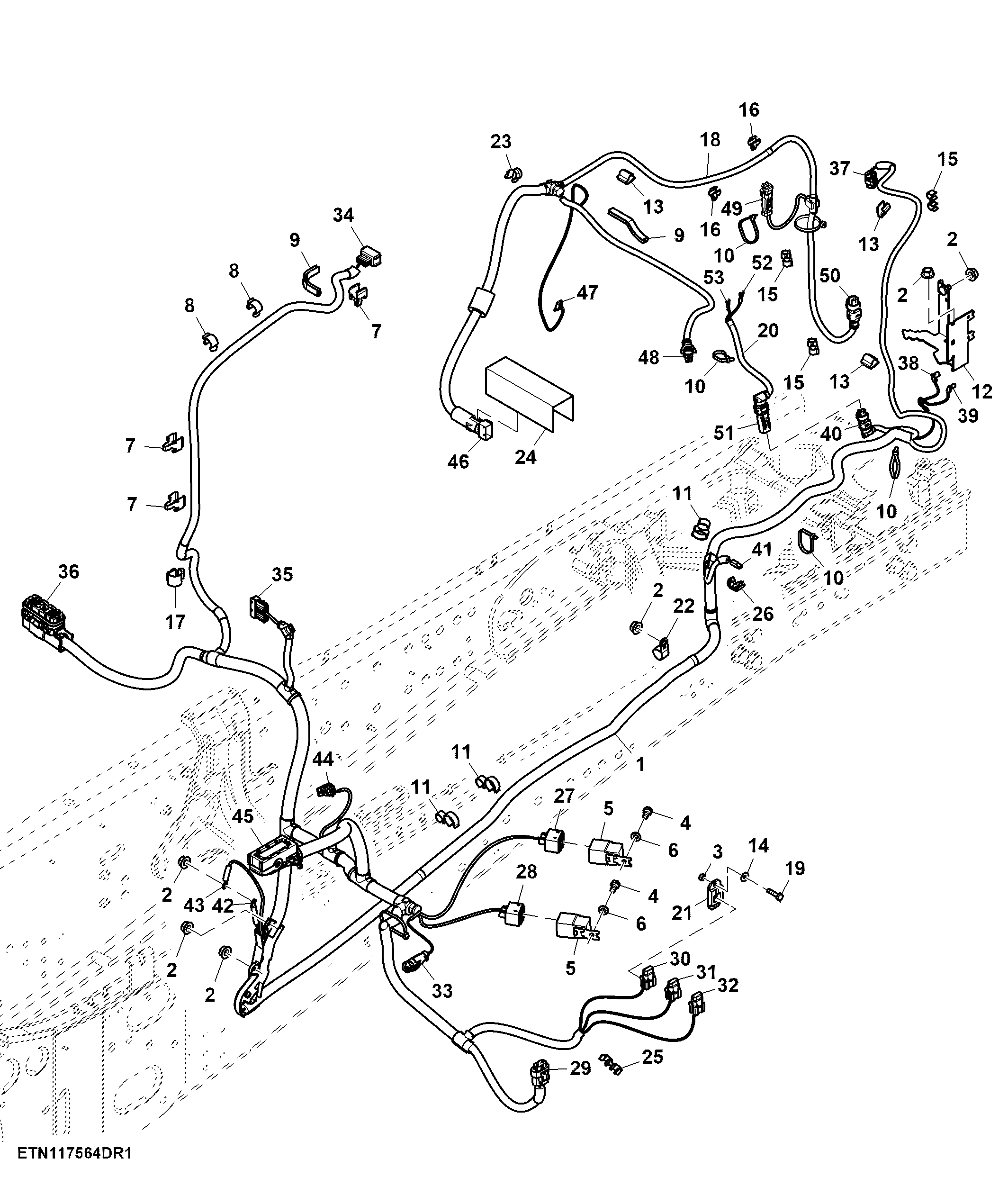

Wiring Harness, Front Chassis, W/O Front Controller, W/O Front PTO (866041 - )
