Открытый узел

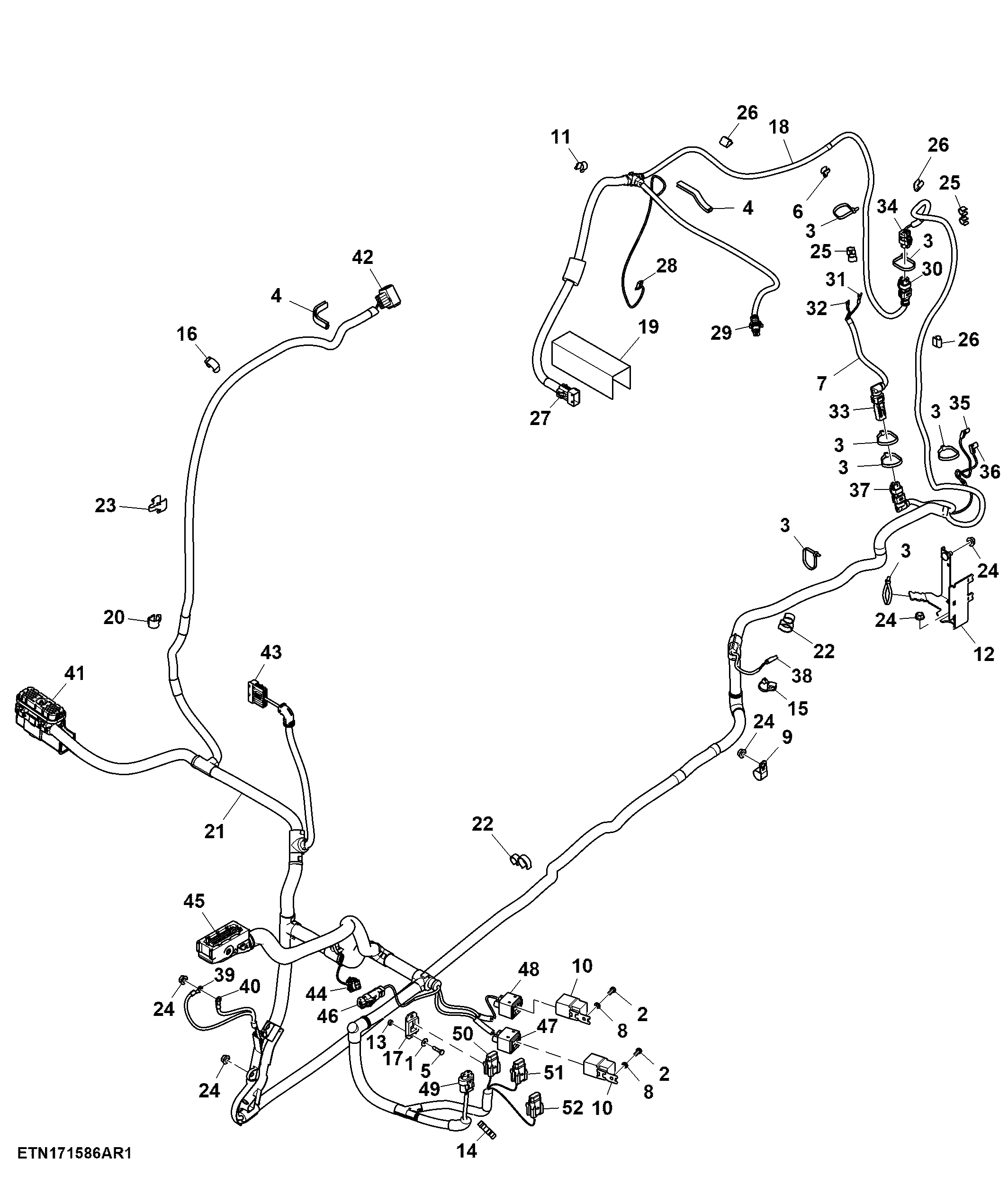

Wiring Harness, Chassis, W/O Front Controller, W/O Front PTO ( - 924526)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7146	2	Washer	4.300 X 12 X 1 mm
2	19M6614	2	Cap Screw	M6 X 12
3	R44302	11	Tie Band	-
4	L152663	2	Weatherstrip	-
5	19M8078	2	Cap Screw	M4 X 16
6	L156248	2	Clamp	-
7	AL215069	1	Wiring Harness	-
8	24M7054	2	Washer	6.400 X 12 X 1.600 mm
9	57M9856	1	Clamp	-
10	AL156697	2	Relay	-
11	L173956	1	Clamp	-
12	L211112	1	Bracket	-
13	14M7139	2	Nut	M4
14	L206271	1	Clamp	-
15	L206645	1	Tie Band	-
16	L169020	2	Clip	-
17	57M8093	1	Fuse Holder	-
18	AL218232	1	Wiring Harness	-
19	L215887	1	Heat Shield	-
20	L110534	1	Clip	-
21	AL224897	1	Wiring Harness	-
22	AL159725	3	Clamp	-
23	L153768	2	Clip	-
24	14M7298	6	Flange Nut	M8
25	L156556	3	Clamp	-
26	L102323	4	Clamp	-
27	57M7401	5	Elec. Connector Cavity Plug	Cavity 1, 2, 5, 6, 7
27	57M7399	1	Elec. Connector Seal	Cavity 10
27	57M7400	4	Elec. Connector Seal	Cavity 3, 4, 8, 9
27	57M8080	1	Elec. Connector Accessory	-
27	57M8074	1	Elec. Connector Terminal	-
27	57M8068	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W521, X1079M
27	57M9042	4	Elec. Connector Terminal	Cavity 3, 4, 8, 9
28	57M8481	1	Elec. Connector Terminal	Radiator Ground Connection, X305F
29	57M7254	1	Elec. Connector Housing	Coolant Level Service Switch, X676F-2
29	57M8218	1	Elec. Connector Accessory	-
29	57M10770	2	Elec. Connector Terminal	Cavity A, B
29	57M9215	2	Elec. Connector Seal	Cavity A, B
30	57M9772	1	Elec. Connector Housing	Water-In-Fuel Sensor, X690F-2
30	57M9837	1	Elec. Connector Accessory	-
30	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
31	57M7054	1	Elec. Connector Terminal	Fuel Pump, X804F-4
32	57M11295	1	Elec. Connector Terminal	Fuel Pump, X804F-3
33	57M10155	1	Elec. Connector Accessory	-
33	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
33	57M9776	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W522, X575M
34	57M9772	1	Elec. Connector Housing	Heating Element of Fuel Preheater, X079F-2
34	57M11333	1	Elec. Connector Accessory	-
34	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
35	57M7984	1	Elec. Connector Terminal	Horn, X066F-2
35	57M8024	1	Elec. Connector Terminal	Cavity 1
36	57M7984	1	Elec. Connector Terminal	Horn, X066F-1
36	57M8024	1	Elec. Connector Terminal	Cavity 1
37	57M9772	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W522, X575F
37	57M10155	1	Elec. Connector Accessory	-
37	57M11333	1	Elec. Connector Accessory	-
37	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
38	57M7170	1	Elec. Connector Housing	Radiator Ground Connection, X305F-1
38	57M7106	1	Elec. Connector Terminal	Cavity A
39	57M7382	1	Elec. Connector Terminal	Ground Point, XGND9F
40	57M7411	1	Elec. Connector Terminal	Ground Point, XGND9E
41	RE538505	1	Elec. Connector Accessory	Engine Control Unit, X1022F-3
41	57M13590	1	Elec. Connector Accessory	-
41	R528122	1	Elec. Connector Accessory	-
41	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
41	57M10321	14	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 50
41	57M10336	38	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 45, 46, 47, 48, 49, 51, 52, 53, 54
42	57M9532	4	Elec. Connector Terminal	Cavity 1, 2, 3, 5
42	57M7401	1	Elec. Connector Cavity Plug	Cavity 7
42	57M7399	5	Elec. Connector Seal	Cavity 4, 6, 8, 9, 10
42	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 5
42	57M8079	5	Elec. Connector Terminal	Cavity 4, 6, 8, 9, 10
42	57M8081	1	Elec. Connector Accessory	-
42	57M8071	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 and W102 or W101, X1233F
43	57M9042	1	Elec. Connector Terminal	Cavity 7
43	57M7401	9	Elec. Connector Cavity Plug	Cavity 1, 2, 8, 9, 11, 13, 14, 15, 16
43	57M7400	2	Elec. Connector Seal	Cavity 6, 7
43	57M7399	5	Elec. Connector Seal	Cavity 3, 4, 5, 10, 12
43	57M8082	1	Elec. Connector Accessory	-
43	57M8075	1	Elec. Connector Seal	-
43	57M8069	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W501 and W511, X1080M
44	57M9214	2	Elec. Connector Seal	Cavity A, B
44	57M7259	2	Elec. Connector Seal	Cavity E, F
44	57M9215	2	Elec. Connector Seal	Cavity C, D
44	57M10770	2	Elec. Connector Terminal	Cavity C, D
44	57M7494	2	Elec. Connector Terminal	Cavity A, B
44	L114840	1	Cap	-
44	57M7291	1	Electrical Connector Assy	-
44	57M7260	1	Elec. Connector Housing	Connection Point between Harnesses W451 and W471, X637F-1
45	57M8730	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 and W201, X782F
45	57M7401	3	Elec. Connector Cavity Plug	Cavity 57, 61, 62
45	57M7403	40	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 6, 12, 13, 15, 17, 18, 21, 22, 23, 24, 26, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 42, 43, 44, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56
45	57M7400	1	Elec. Connector Seal	Cavity 60
45	57M7399	2	Elec. Connector Seal	Cavity 58, 59
45	57M7402	7	Elec. Connector Cable Seal	Cavity 11, 14, 27, 40, 41, 45, 46
45	57M8584	1	Elec. Connector Terminal	Cavity 60
45	57M8585	2	Elec. Connector Terminal	Cavity 58, 59
45	57M9161	16	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 11, 14, 16, 19, 20, 25, 27, 40, 41, 45, 46
45	57M8738	1	Elec. Connector Accessory	-
45	57M8241	9	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 16, 19, 20, 25
46	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1316M
46	57M11134	1	Elec. Connector Housing	-
46	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
47	57M8233	1	Electrical Connector Assy	Starter Relay 2, K003
47	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
47	57M8237	2	Elec. Connector Seal	Cavity 1, 2
48	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
48	57M8237	2	Elec. Connector Seal	Cavity 1, 2
48	57M8233	1	Electrical Connector Assy	Starter Relay 1, K002
49	57M11279	1	Elec. Connector Housing	PLB - Fuses, X547F-1
50	57M12075	1	Elec. Connector Housing	Fuses for Engine Control Unit, F027
50	99M7065	1	Fuse	-
50	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
51	57M8435	1	Fuse Holder	Fuses for Engine Control Unit, F028
51	57M7146	1	Fuse	-
51	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
52	57M12075	1	Elec. Connector Housing	Fuses for Engine Control Unit, F029
52	99M7065	1	Fuse	-
52	57M8058	2	Elec. Connector Terminal	Cavity 1, 2

Wiring Harness, Chassis, W/O Front Controller, W/O Front PTO ( - 924526)
