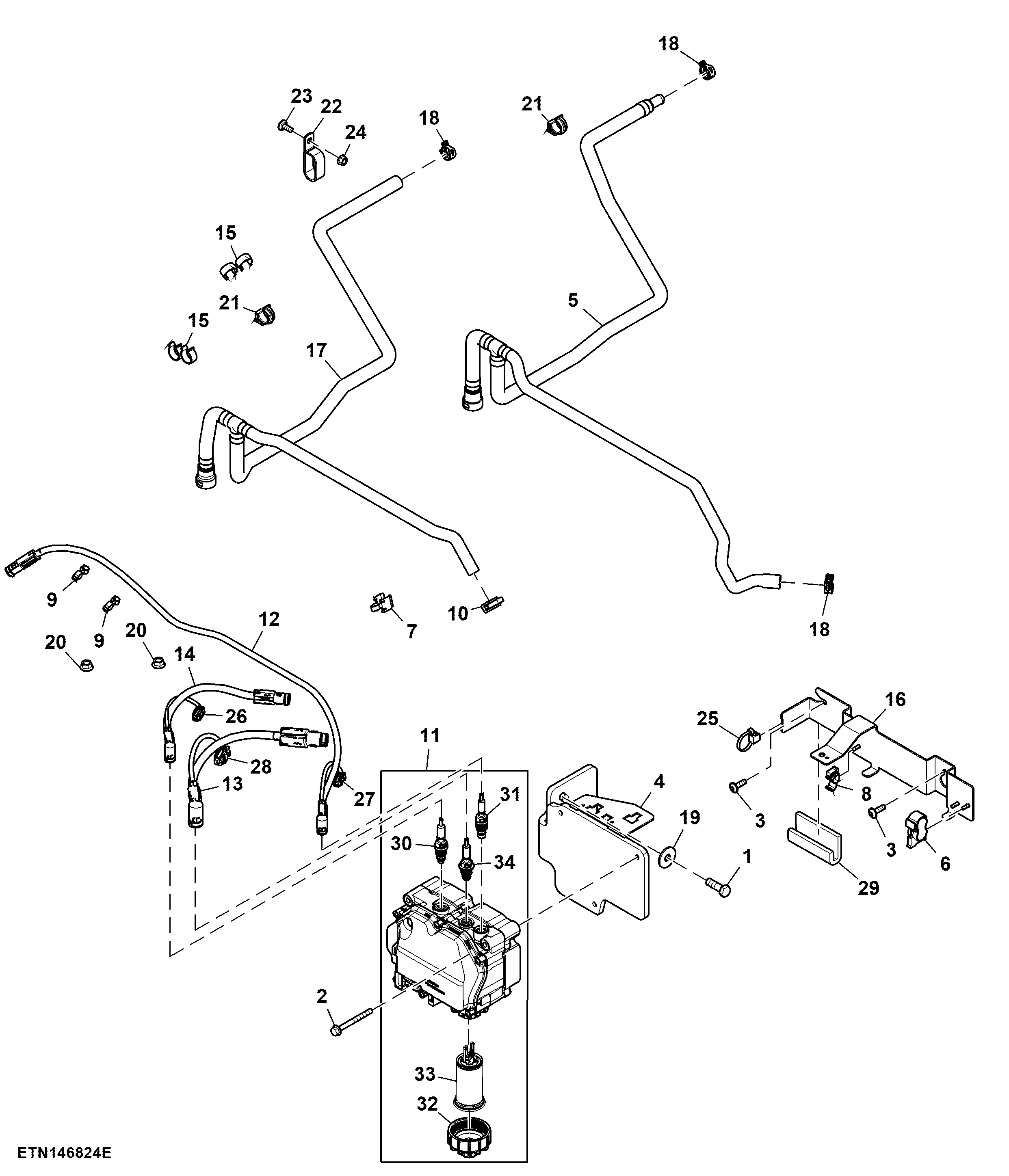

DEF Injection Pump / Hoses, W/ Cab (866041 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7403	2	Cap Screw	M12 X 35
2	19M8039	3	Screw	M8 X 80
3	L213934	2	Screw	M8 X 25
4	AL213449	1	Bracket	-
5	AL221765	1	Hose	DEF Tank Supply Hose
6	L112280	2	Clamp	-
7	L153768	1	Clip	-
8	L170015	2	Clamp	-
9	L172406	2	Clip	-
10	R184863	1	Hose Clamp	-
11	RE552175	1	DEF Dosing Unit Pump	MARKED RE552175
11	DZ119474	1	DEF Dosing Unit Pump	MARKED DZ119474
11	DZ111283	1	DEF Dosing Unit Pump	MARKED DZ111283
12	DZ111000	1	DEF Line	DEF Pressure Line, INCLUDES 57M9773, SUB FOR RE561032 APPL
13	DZ110998	1	DEF Line	DEF Backflow Line, INCLUDES 57M9774, SUB FOR RE561033 APPL
14	DZ110997	1	DEF Line	DEF Suction Line, INCLUDES 57M9772, SUB FOR RE561034 APPL
15	AL157838	2	Clamp	-
16	AL221544	1	Bracket	-
17	AL221763	1	Hose	DEF Tank Return Hose
18	L207664	3	Hose Clamp	-
19	24M7180	2	Washer	13 X 37 X 3 mm
20	14M7298	2	Flange Nut	M8
21	L210301	2	Clamp	-
22	R50454	1	Clamp	-
23	03M7184	1	Bolt	M8 X 20
24	14M7416	1	Flange Nut	M8
25	L206646	1	Tie Band	-
26	57M9772	1	Elec. Connector Housing	-
27	57M9773	1	Elec. Connector Housing	-
28	57M9774	1	Elec. Connector Housing	-
29	L220400	1	Pad	-
30	RE549603	1	Adapter Fitting	-
31	RE549604	1	Adapter Fitting	-
32	RE555351	1	Cap	-
33	DZ114640	1	Filter Kit	DEF Injection Pump Filter, SUB FOR RE554498
34	RE549605	1	Adapter Fitting	-

DEF Injection Pump / Hoses, W/ Cab (866041 - )
