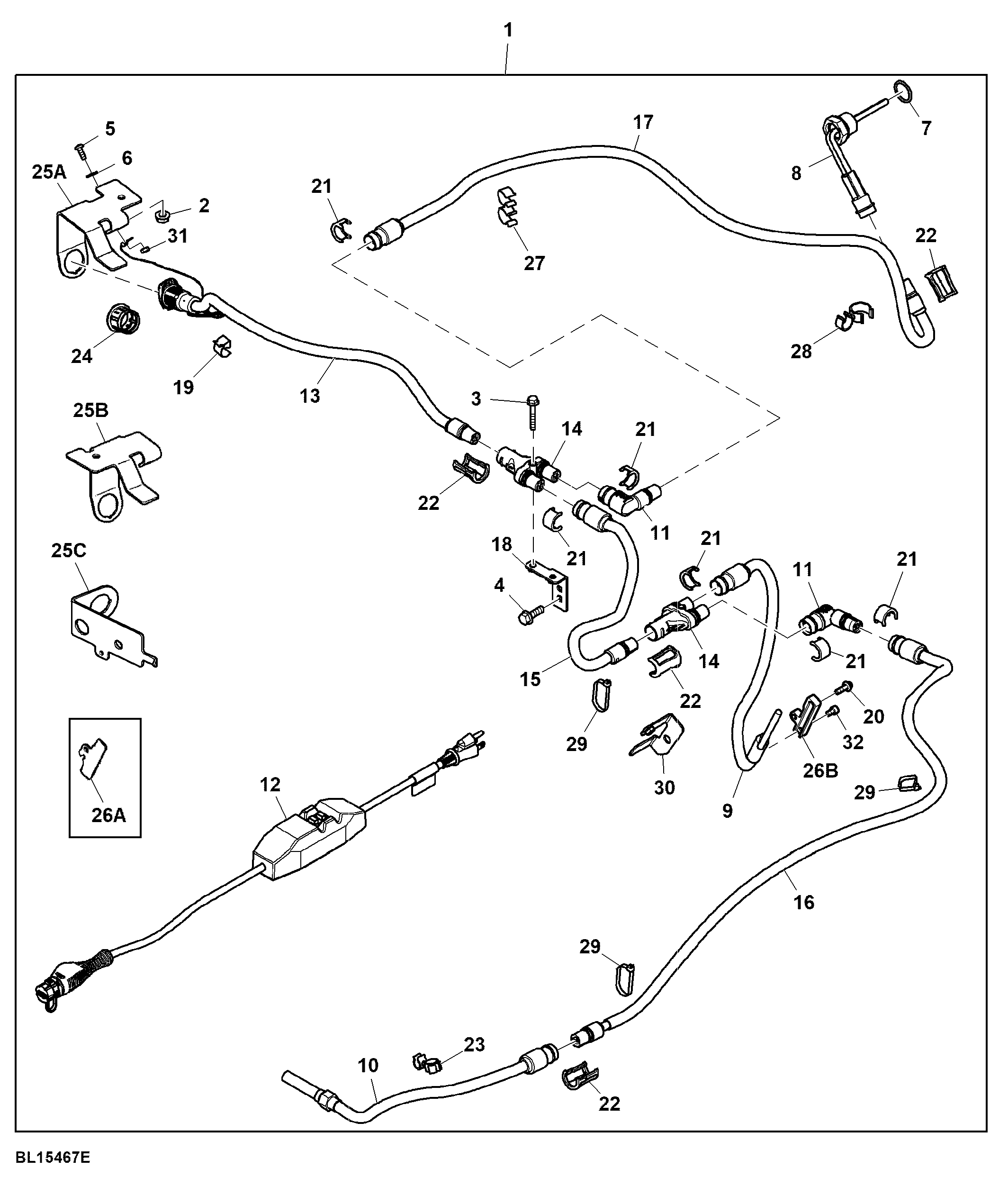

Attachment, Cold Start, 110 V, Engine, Transmission, Charge Pump, W/ PowrQuad™ PLUS, W/ AutoQuad™, W/ CommandQuad™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15467	1	Heating Element	-
2	14M7298	1	Flange Nut	M8
3	19M7797	1	Screw	M6 X 40
4	19M7867	1	Screw	M8 X 25
5	21M7250	1	Screw	M4 X 12
6	24M7146	1	Washer	4.300 X 12 X 1 mm
7	51M7047	1	O-Ring	23.600 X 2.900 mm
8	AL214177	1	Coolant Heater	-
9	AL214179	1	Heater	-
10	AL214180	1	Heater	-
11	AL214181	2	Manifold	-
12	AL214182	1	Module	FOR EXTERNAL POWER SUPPLY
13	AL214341	1	Wiring Lead	-
14	AL214342	2	Manifold	-
15	AL214343	1	Wiring Lead	-
16	AL214344	1	Wiring Lead	-
17	AL214345	1	Wiring Lead	-
18	AL220390	1	Bracket	-
19	L115277	1	Clip	-
20	L156151	1	Screw	-
21	L165828	6	Clamp	-
22	L165829	4	Clamp	-
23	L172406	1	Clip	-
24	L209736	1	Retainer	-
27	R215302	1	Clip	-
28	AL159725	1	Clamp	-
29	R44302	3	Tie Band	-
30	AL223634	1	Retainer	-
31	14M7139	1	Nut	M4
32	19M8579	1	Screw	M6 X 10
25a	L211163	1	Retainer	For 6145R, 6155R, 6175R, 6195R and 6215R Tractors
25b	L214975	1	Retainer	For 6145M, 6155M, 6175M and 6195M Tractors with Cab
25c	L214980	1	Retainer	For 6145M, 6155M, 6175M and 6195M tractors with open operator's station
26A	L214023	1	Clamp	ORDER L227766
26B	L227766	1	Clamp	-

Attachment, Cold Start, 110 V, Engine, Transmission, Charge Pump, W/ PowrQuad™ PLUS, W/ AutoQuad™, W/ CommandQuad™
