Открытый узел

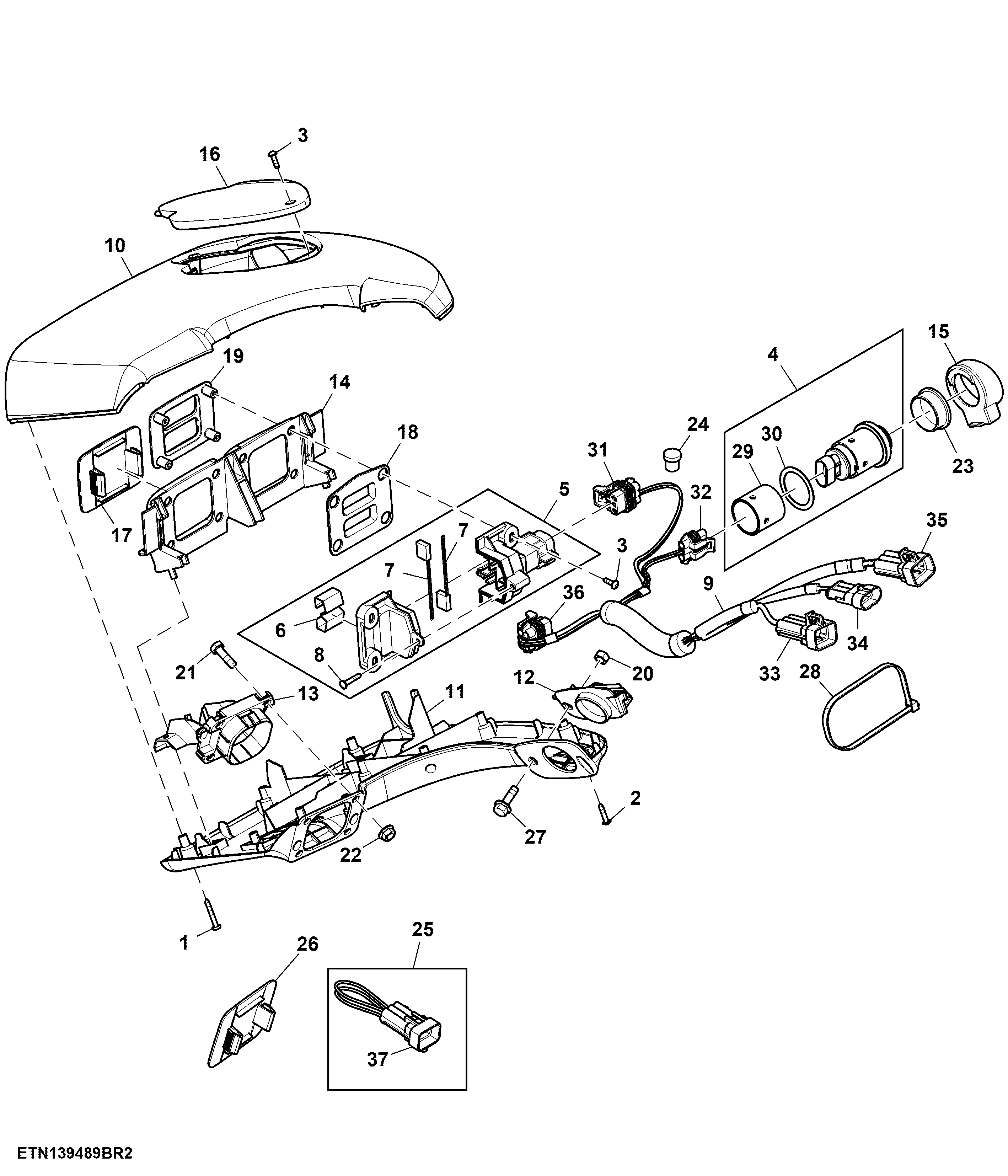

Switch / Remote Control, Rear Hitch and PTO, LH

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37M7269	9	Screw	-
2	37M7286	4	Screw	-
3	37M7411	5	Screw	-
4	AL208892	1	Switch	-
5	AL172871	1	Control	-
6	L168608	1	Clip	-
7	AL81777	2	Elec. Connector Terminal	-
8	37M7235	1	Screw	-
9	AL174449	1	Wiring Harness	-
10	L170404	1	Housing	-
11	L170405	1	Housing	-
12	L170408	1	Adapter Fitting	-
13	L170409	1	Adapter Fitting	-
14	L170410	1	Adapter Fitting	-
15	L170411	1	Adapter Fitting	-
16	L170420	1	Cover	-
17	L170422	1	Cover	-
18	R234272	1	Boot	-
19	R234273	1	Frame	-
20	14M7272	1	Nut	M6
21	19M7077	4	Cap Screw	M6 X 20
22	14M7303	4	Flange Nut	M6
23	99M7056	1	Plug	-
24	99M7043	1	Plug	-
25	AL204342	1	Wiring Harness	-
26	R206454	1	Plug	-
27	19M7862	1	Screw	M6 X 20
28	L222109	1	Tie Band	-
29	L217104	1	Sleeve	-
30	L217105	1	Washer	-
31	57M7259	1	Elec. Connector Seal	-
31	57M7291	1	Electrical Connector Assy	-
31	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
31	57M7260	1	Elec. Connector Housing	Hitch Remote Switch LH, X35F-1
31	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
32	57M7687	1	Elec. Connector Housing	PTO Fender LH, X174F-1
32	57M7317	1	Elec. Connector Accessory	-
32	R104846	3	Elec. Connector Terminal	Cavity A, B, C
32	57M7493	3	Elec. Connector Seal	Cavity A, B, C
32	57M7259	1	Elec. Connector Seal	-
33	57M7252	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
33	57M7259	1	Elec. Connector Seal	-
33	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
33	57M7291	1	Electrical Connector Assy	-
33	57M7263	1	Elec. Connector Housing	Hitch Remote Interface, X35M
34	57M7742	1	Elec. Connector Housing	PTO Fender Interface, X174M
34	57M7938	1	Elec. Connector Terminal	Cavity 1
34	57M7743	1	Elec. Connector Cable Seal	-
35	57M7263	1	Elec. Connector Housing	ESCV Remote Switch Interface, X747M
35	57M7259	1	Elec. Connector Seal	-
35	57M7493	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
35	57M7252	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
35	57M7291	1	Electrical Connector Assy	-
36	57M7260	1	Elec. Connector Housing	ESCV Remote Switch, X747F-1
36	57M7291	1	Electrical Connector Assy	-
36	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
36	57M7493	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
36	57M7259	1	Elec. Connector Seal	-
37	57M7263	1	Elec. Connector Housing	Interface Cab, X34M
37	57M7291	1	Electrical Connector Assy	-
37	57M7252	4	Elec. Connector Terminal	Cavity B, C, D, E
37	57M7493	4	Elec. Connector Seal	Cavity B, C, D, E
37	57M7259	1	Elec. Connector Seal	-

Switch / Remote Control, Rear Hitch and PTO, LH

Нет текстового описания
