Открытый узел

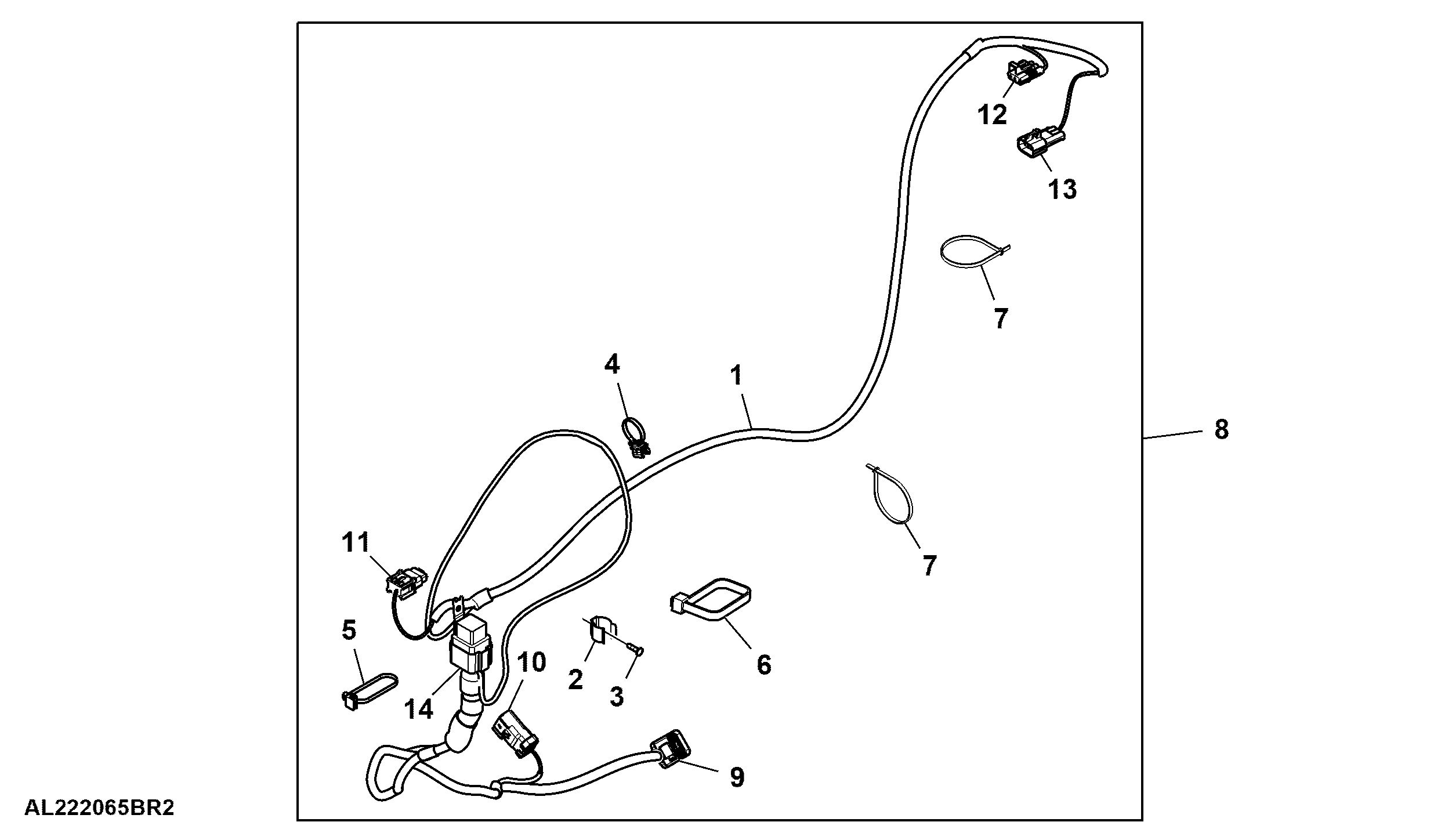

Wiring Harness, Trailer Beacon Light, W/ 7-Pin Socket

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL222726	1	Wiring Harness	-
2	L153769	1	Clamp	-
3	37M7179	1	Screw	-
4	AH225363	1	Clip	-
5	57M9229	1	Clip	-
6	H77698	2	Tie Band	-
7	57M12232	6	Elec. Connector Accessory	-
8	AL222065	1	Harness Kit	(For France)
9	57M8565	2	Elec. Connector Terminal	Cavity 3, 4
9	57M8572	4	Elec. Connector Cavity Plug	Cavity 1, 8, 9, 10
9	57M8545	4	Elec. Connector Terminal	Cavity 2, 5, 6, 7
9	57M10299	1	Elec. Connector Housing	Connection Point on Wiring Harness W601 X1235F-2
10	57M10300	1	Elec. Connector Housing	Connection point on wiring harness W033 X1235M-2
10	57M10524	5	Elec. Connector Terminal	Cavity 2, 4, 5, 6, 7
10	57M10525	1	Elec. Connector Terminal	Cavity 3
10	57M8572	4	Elec. Connector Cavity Plug	Cavity 1, 8, 9, 10
11	57M11416	1	Elec. Connector Housing	Relay Beacon Light Fuse F034
11	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
12	57M7280	1	Elec. Connector Housing	Connection Point on Wiring Harness W022 X239F-4
12	57M7274	1	Elec. Connector Accessory	-
12	57M9217	1	Elec. Connector Seal	Cavity C
12	57M9218	2	Elec. Connector Seal	Cavity A, B
12	57M7299	1	Elec. Connector Terminal	Cavity C
12	57M7491	2	Elec. Connector Terminal	Cavity A, B
13	57M7305	1	Elec. Connector Housing	Connection Point on Wiring Harness W021 X239M-4
13	57M7527	2	Elec. Connector Terminal	Cavity A, B
13	57M7286	1	Elec. Connector Terminal	Cavity C
13	57M9218	2	Elec. Connector Seal	Cavity A, B
13	57M9217	1	Elec. Connector Seal	Cavity C
13	57M7307	1	Electrical Connector Assy	-
14	57M8232	1	Elec. Connector Housing	Beacon Light Relay K071
14	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
14	57M11856	2	Elec. Connector Terminal	Cavity 3, 5
14	57M10212	2	Elec. Connector Cable Seal	Cavity 1, 2
14	57M11184	2	Elec. Connector Seal	Cavity 3, 5
14	57M11297	1	Elec. Connector Accessory	-

Wiring Harness, Trailer Beacon Light, W/ 7-Pin Socket
