Открытый узел

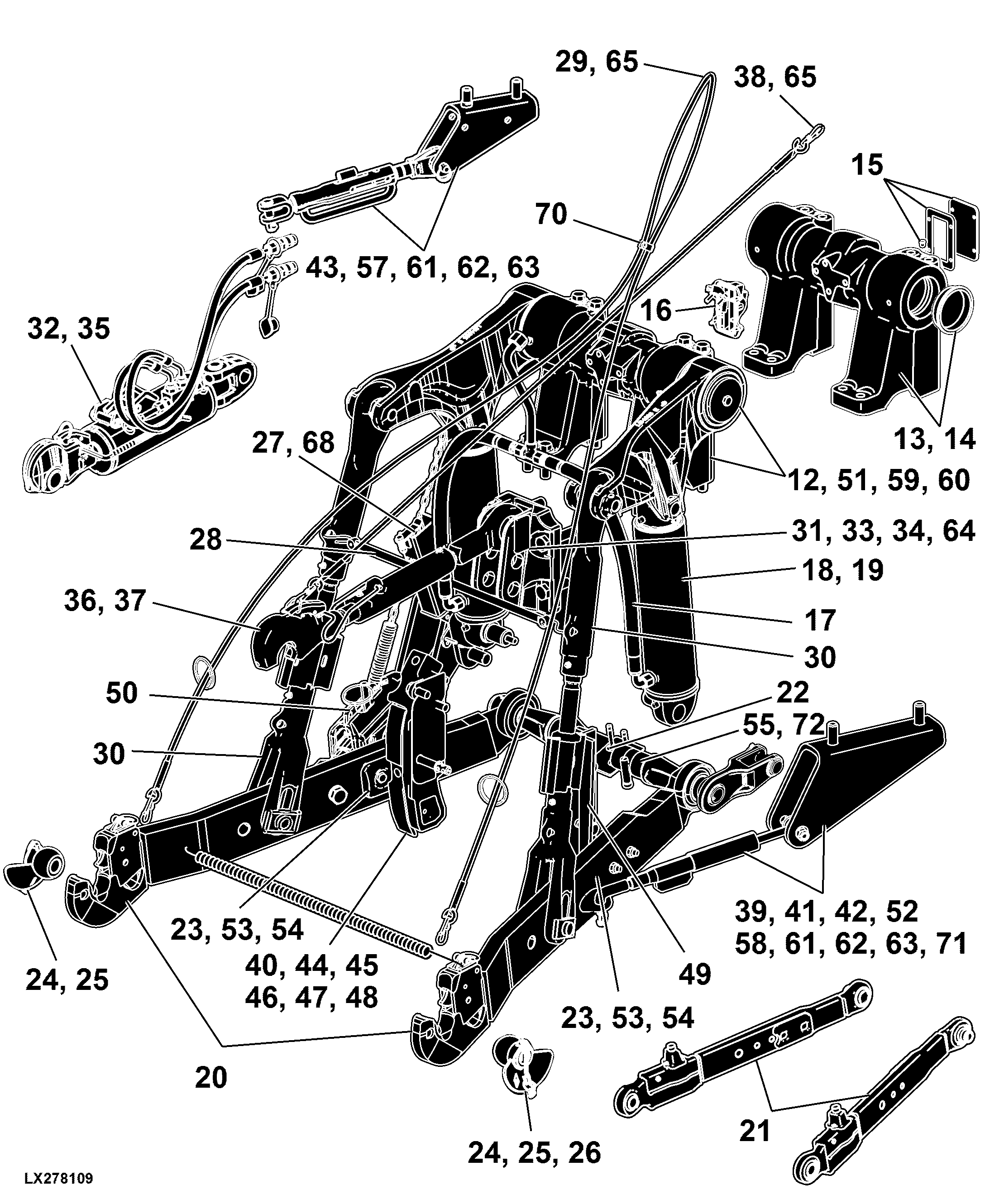

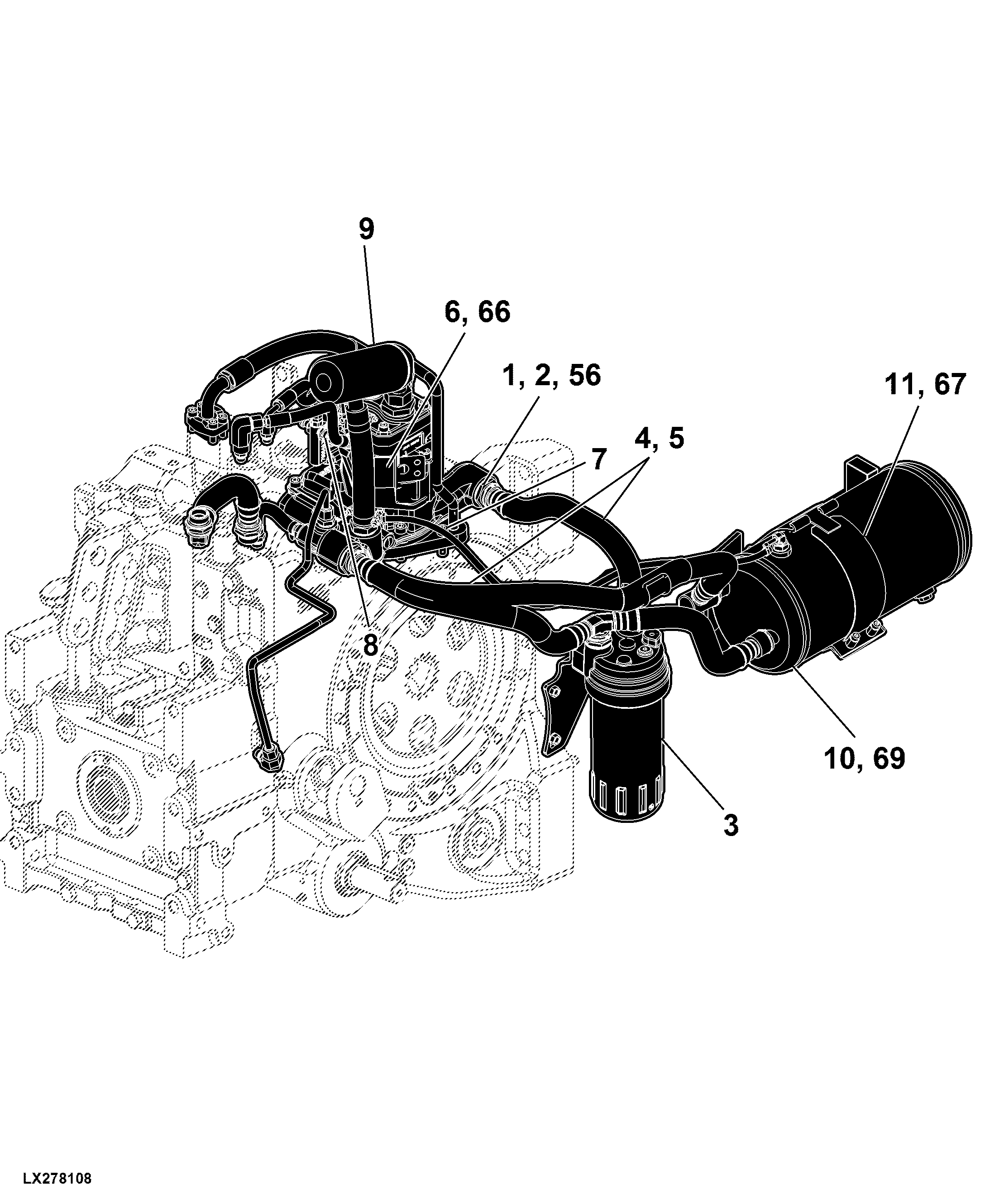

71 Hydraulic Pumps and Rockshaft

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Pin Fastener, Centre Link Bracket, Category 3	-
-	-	1	Release Cable, Draft Link Hook Type	-
-	-	1	Release Cable, Center Link, W/ Hook	-
-	-	1	Quick Lock Pin, Centre Link Bracket	-
-	-	1	Position Sensor, Rockshaft (673929 - 999999), (100001 - 147848)	-
-	-	1	Plugs, Rockshaft, W/O Position Sensor	-
-	-	1	Plugs, Rockshaft Housing	-
-	-	1	Plugs / Fittings, Hydraulic Pump 45 cm³	-
-	-	1	Plug, Rockshaft Housing, RH	-
-	-	1	Ring Locked Pins, Lift Link	-
-	-	1	Oil Lines, Lift Cylinder	-
-	-	1	Oil Lines, Charge Pump, W/ PFC-Hydraulics, W/ Additional Oil Reservoir	-
-	-	1	Oil Lines, Charge Pump, W/ PFC-Hydraulics	-
-	-	1	Oil Lines / Fittings, Hydraulic Pump, PFC-System	-
-	-	1	Mounting Parts, Sway Blocks	-
-	-	1	Mounting Parts, Rockshaft Housing, W/O Rockshaft	-
-	-	1	Mounting parts, Hydraulic Pump 35 cm³ / 45 cm³ / 60 cm³	-
-	-	1	Mounting Parts, Hydraulic Oil Reservoir	-
-	-	1	Stabilizer Bar, Deluxe, W/ HCS, RH	-
-	-	1	Wearing Plates, Draft Links W/ Hook	-
-	-	1	Sway Limitation	-
-	-	1	Sway Blocks	-
-	-	1	Sway Block Plates, W/ Mounting Screw	-
-	-	1	Sway Block Plates, Stabilizer Bar W/ Pick-up Hitch	-
-	-	1	Stop, Sway Limitation, Stabilizer Bar, W/ Hydraulic Center Link	-
-	-	1	Stop, Sway Limitation, Stabilizer Bar	-
-	-	1	Stabilizer Bar, Economy, RH	-
-	-	1	Mounting Parts, Draft Links, Category 3, One-Sided	-
-	-	1	Stabilizer Bar, Deluxe, W/ HCS, LH	-
-	-	1	Stabilizer Bar, Automatic, LH / RH, W/O Cab Suspension	-
-	-	1	Stabilizer Bar, Adjustable, LH	-
-	-	1	Spring Pins, Sway Blocks	-
-	-	1	Rubber Strap, Draft links	-
-	-	1	Rockshaft, Category 3, Standard	-
-	-	1	Rockshaft Support, W/O Rockshaft	-
-	-	1	Rockshaft Support	-
-	-	1	Bracket, Mounting Parts, Additional Oil Reservoir	-
-	-	1	Drive Assembly, Hydraulic Pump	-
-	-	1	Draft Link, W/ Hook, Category 3	-
-	-	1	Draft Link, Telescopic	-
-	-	1	Charge Pump 59 cm³, W/ Hydraulic Pump 45 cm³	-
-	-	1	Charge Pump 59 cm³, W/ Hydraulic Pump 45 cm³	-
-	-	1	Center Link, W/ Ball, Catagory 3	-
-	-	1	Center Link Hook, Category 3 / 2	-
-	-	1	Center Link Bracket	-
-	-	1	Guide Ball Holder, Category 3	-
-	-	1	Brace, Stabilizer Bar, RH	-
-	-	1	Brace, Stabilizer Bar, LH	-
-	-	1	Automatic Stabilizer Bar, Attachment	-
-	-	1	Attachment, Wearing Plates, Draft Links, Telescopic, Category 3	-
-	-	1	Attachment, Release Cable, Center Link And Draft Link, W/ Hook	-
-	-	1	Attachment, Guide Ball Holder, Category 3	-
-	-	1	Attachment, Automatic Stabilizer Bar	-
-	-	1	Additional Oil Reservoir, Attachment	-
-	-	1	Lift Links, Standard, RH / LH	-
-	-	1	Mounting Parts, Charge Pump, W/ Additional Oil Reservoir	-
-	-	1	Mounting Parts, Center Link Cables, Attachment	-
-	-	1	Mounting Parts, Automatic Stabilizer Bar, Attachment	-
-	-	1	Mounting Parts, Attachment, Wearing Plates, Draft Links, Telescopic, Category 3	-
-	-	1	Mounting Part, Automatic Stabilizer Bar, Attachment	-
-	-	1	Load Control Shaft, Draft Sensor	-
-	-	1	Load Control Shaft, Draft Sensor	-
-	-	1	Lines / Fittings, Hydraulic Center Link	-
-	-	1	Additional Oil Reservoir	-
-	-	1	Hydraulic Pump 45 cm³	-
-	-	1	Hydraulic Oil Filter, W/O Sensor	-
-	-	1	Hydraulic Lift Cylinder	-
-	-	1	Hydraulic Lift Cylinder	-
-	-	1	Hydraulic Center Link, Catagory 3, W/o Displacement Sensor	-
-	-	1	Hitch Ball, W/ Reducing Bushing, Category 3 / 2	-
-	-	1	Guide Ball, Category 3	-
-	-	1	Guide Ball, Category 2 / 3	-

71 Hydraulic Pumps and Rockshaft
