Открытый узел

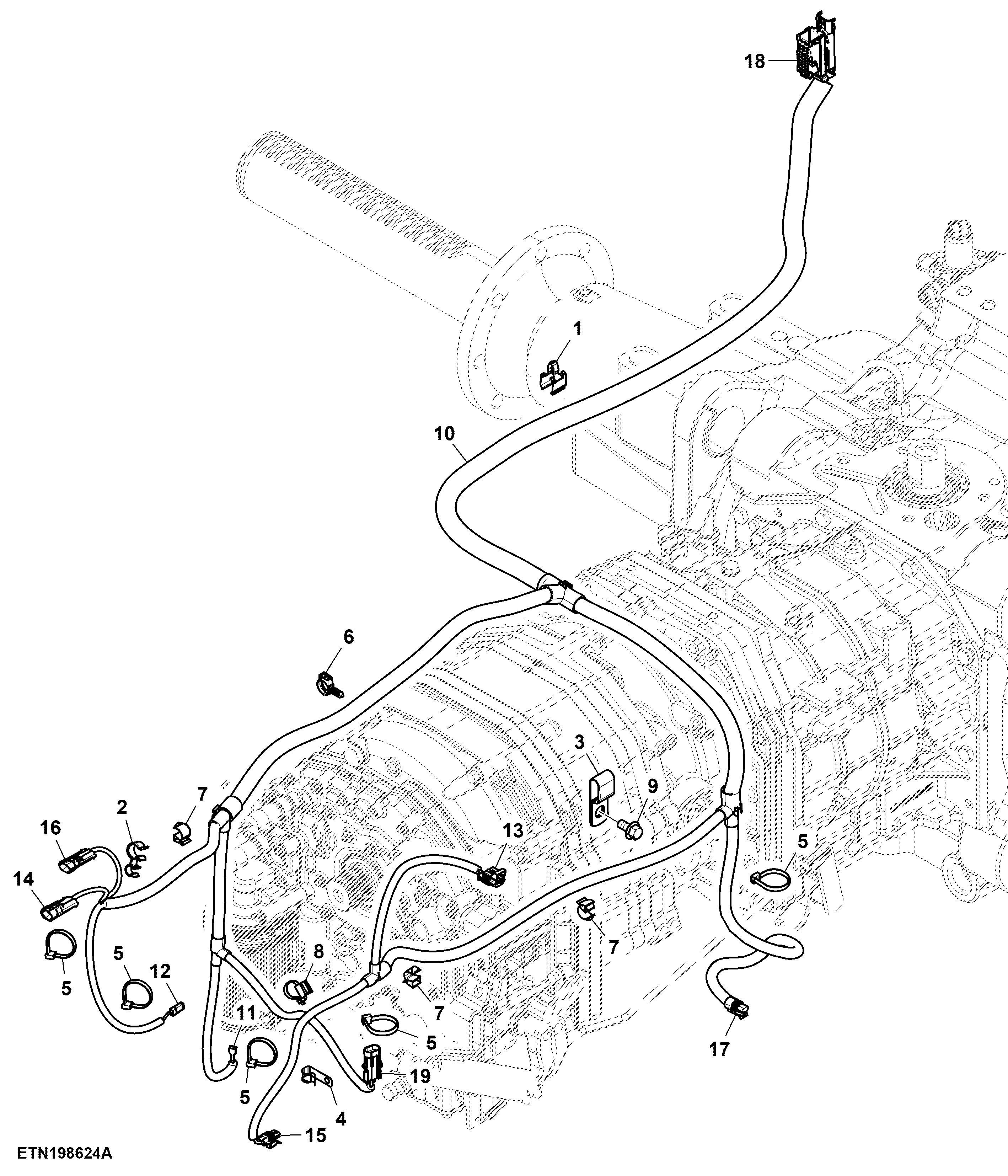

Transmission Wiring Harness, Front, PowrQuad™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L153768	1	Clip	-
2	R232182	1	Clip	-
3	R127657	1	Clamp	-
4	L167244	1	Clip	-
5	R44302	7	Tie Band	-
6	57M8902	1	Clip	-
7	L115277	3	Clip	-
8	L171035	1	Tie Band	-
9	19M7784	1	Screw	M10 X 20
10	AL228273	1	Wiring Harness	-
11	57M7210	1	Elec. Connector Accessory	Low Temperature Switch X081F
11	57M9621	1	Elec. Connector Terminal	Cavity 1
12	57M7213	1	Elec. Connector Housing	High Temperature Switch X082F
12	57M7216	1	Elec. Connector Terminal	Cavity 1
13	57M7255	1	Elec. Connector Housing	Sending Unit Fuel Gauge X086F
13	57M10770	2	Elec. Connector Terminal	Cavity A, C
13	57M9215	2	Elec. Connector Seal	Cavity A, C
13	57M7259	1	Elec. Connector Seal	Cavity B
14	57M7256	1	Elec. Connector Housing	Sending Unit Oil Filter X080M
14	57M9215	2	Elec. Connector Seal	Cavity A, B
14	57M7252	2	Elec. Connector Terminal	Cavity A, B
15	57M7328	1	Elec. Connector Housing	Start Safety Switch X093F
15	R104846	2	Elec. Connector Terminal	Cavity A, B
15	57M9215	2	Elec. Connector Seal	Cavity A, B
16	57M7365	1	Elec. Connector Housing	-
17	57M7379	1	Elec. Connector Housing	Front Wheel Drive Solenoid X091F
17	57M7829	2	Elec. Connector Terminal	Cavity A, B
18	57M8195	1	Elec. Connector Housing	Inline Platform X431F
18	57M14000	1	Elec. Connector Terminal	Cavity 1
18	57M8425	9	Elec. Connector Terminal	Cavity 13, 14, 15, 19, 22, 24, 39, 40, 41
18	57M8106	1	Elec. Connector Seal	Cavity 1
18	57M8241	7	Elec. Connector Terminal	Cavity 13, 14, 15, 22, 39, 40, 41
18	57M7402	2	Elec. Connector Cable Seal	19, 24
19	R78053	1	Electrical Connector Assy	Pressure Switch X033F
19	57M9545	2	Elec. Connector Terminal	Cavity A, B
19	57M9549	2	Elec. Connector Seal	Cavity A, B

Transmission Wiring Harness, Front, PowrQuad™

Нет текстового описания
