Открытый узел

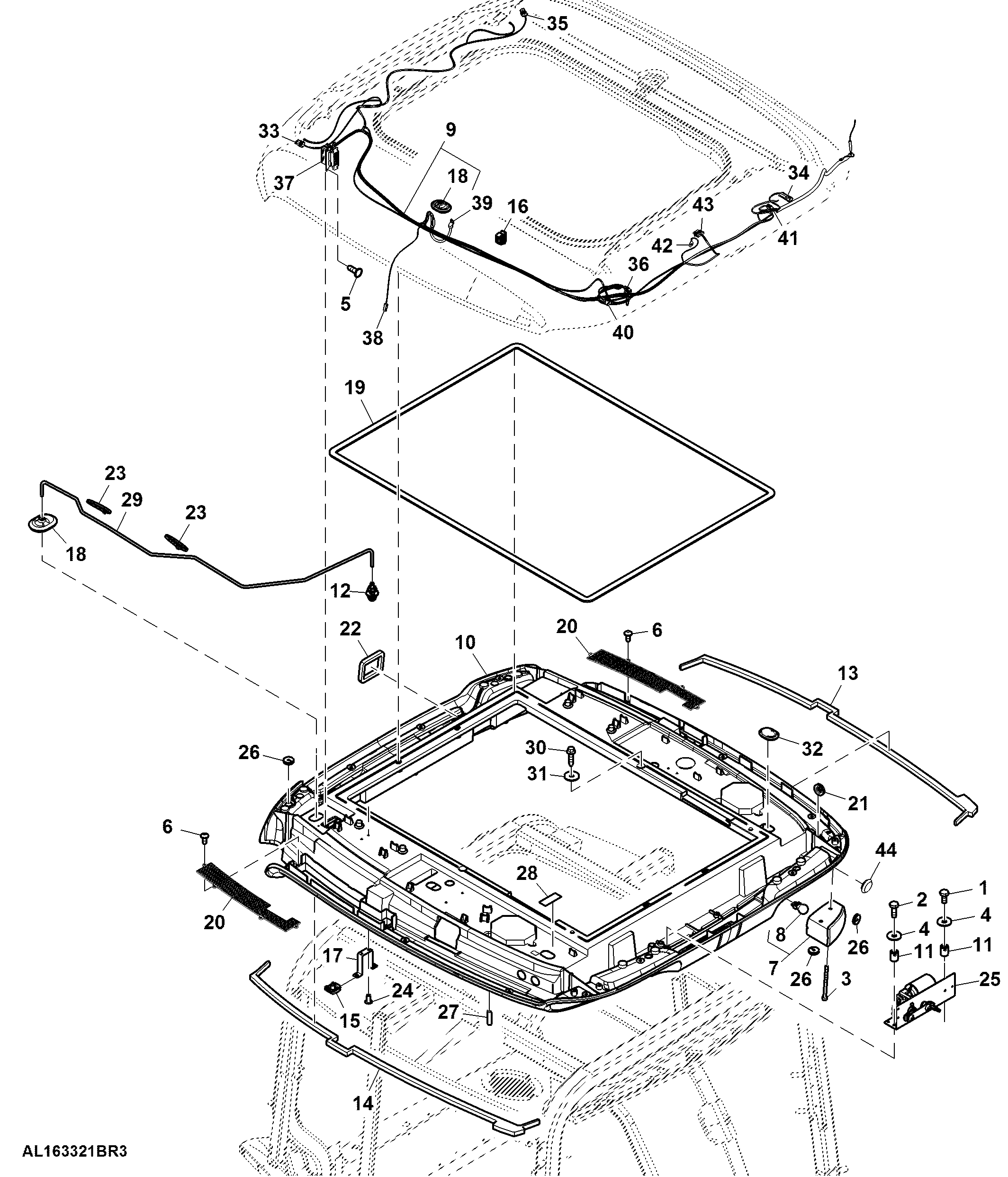

Inner Roof, W/ Front Wiper Motor, W/ Working Lights

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M6614	2	Cap Screw	M6 X 12
2	19M7560	1	Cap Screw	M6 X 16
3	19M8482	4	Screw	M6 X 80
4	24M7139	3	Washer	6.400 X 18 X 1.600 mm
5	37M7181	2	Screw	-
6	37M7357	8	Screw	-
7	RE217551	2	Lamp	INCLUDES RE49778
8	RE49778	4	Bulb	-
9	AL162768	1	Wiring Harness	-
10	AL164480	1	Roof	INCLUDES L152460
11	L152460	9	Bushing	-
12	AL35642	1	Nozzle	-
13	L100413	1	Gasket	LH
14	L100414	1	Gasket	RH
15	L111480	2	Push Nut	-
16	L151529	3	Loom	-
17	L151863	1	Bracket	-
18	L102007	1	Grommet	-
19	L155025	1	Weatherstrip	-
20	L155257	2	Air Intake	-
21	L79337	1	Grommet	-
22	L78693	2	Pad	-
23	R44302	6	Tie Band	-
24	R54477	2	Rivet	-
25	RE151494	1	Wiper Motor	-
26	T63817	6	Grommet	-
27	R46727	1	Sealant	-
28	L154897	4	Label	-
29	-	1	Part 29	Rear Washer Windshield CTL 4300 mm, MF L112247
30	37M7091	2	Screw	M6 X 25
31	24M7309	2	Washer	6.600 X 22 X 2 mm
32	L114539	1	Grommet	-
33	57M7254	1	Elec. Connector Housing	Work Light Roof Rear RH
33	57M7289	1	Elec.Connect Locking Device	-
34	57M7256	1	Elec. Connector Housing	Front Signal Turn Light LH
34	57M7289	1	Elec.Connect Locking Device	-
35	57M7254	1	Elec. Connector Housing	Work Light Roof Rear LH
35	57M7289	1	Elec.Connect Locking Device	-
36	57M7254	1	Elec. Connector Housing	Work Light, Front Roof RH
36	57M7289	1	Elec.Connect Locking Device	-
37	57M8199	1	Elec. Connector Housing	Interface Cab Roof
37	57M8098	1	Elec. Connector Terminal	-
37	57M8096	1	Retainer	-
38	57M7170	1	Elec. Connector Housing	Antenna
39	57M7081	1	Elec. Connector Terminal	Cab Roof
40	57M7256	1	Elec. Connector Housing	Front Signal Turn Light RH
40	57M7289	1	Elec.Connect Locking Device	-
41	57M7254	1	Elec. Connector Housing	Work Light, Front Roof LH
41	57M7289	1	Elec.Connect Locking Device	-
42	57M7031	1	Elec. Connector Terminal	Cab Roof
43	57M7247	1	Elec. Connector Housing	Windshield Wiper Front
43	57M7318	1	Elec. Connector Accessory	-
44	M92026	2	Plug	-

Inner Roof, W/ Front Wiper Motor, W/ Working Lights
