Wiring Harness, W/ Front Loader, W/O Loader Working Lights, W/O Quick Unlatch Function

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L210204	1	Tie Band	-
2	R44302	2	Tie Band	-
3	L154171	1	Clip	-
4	DC214930	1	Wiring Harness	-
5	L210203	2	Clip	-
6	DC216032	1	Electrical Connector Assy	-
7	L171201	1	Clip	-
8	AL227837	1	Wiring Harness	-
9	57M9813	2	Elec. Connector Terminal	Cavity 8, 10
9	57M10336	7	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 4, 5, 6, 7
9	57M10603	3	Elec. Connector Terminal	Cavity 10, 11, 12
9	57M9939	1	Elec. Connector Accessory	-
9	57M9804	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W751 and W921, X1169M
10	57M7985	1	Electrical Connector Assy	Switch for Dampening, XL423M
10	57M7289	1	Elec.Connect Locking Device	-
10	R104919	2	Elec. Connector Terminal	Cavity 1, 2
10	57M7258	2	Elec. Connector Seal	Cavity 1, 2
11	57M7263	1	Elec. Connector Housing	XL312M
11	57M7291	1	Electrical Connector Assy	-
11	R104919	4	Elec. Connector Terminal	Cavity 1, 2, 4, 5
11	57M7258	4	Elec. Connector Seal	Cavity 1, 2, 4, 5

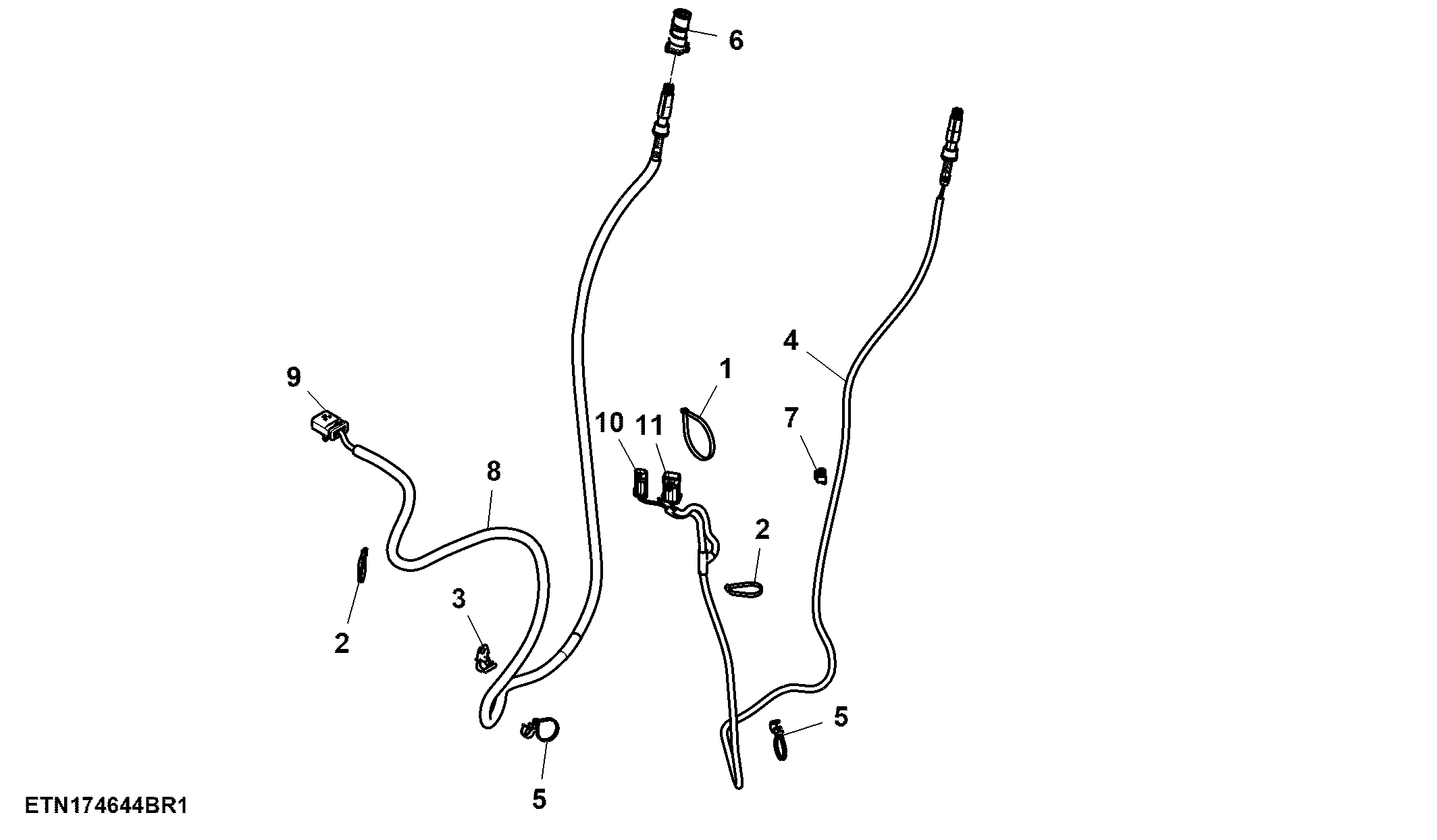

Wiring Harness, W/ Front Loader, W/O Loader Working Lights, W/O Quick Unlatch Function
