Wiring Harness, W/ Electro Hydraulical Pick-Up Hitch

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL206057	1	Wiring Harness	-
2	AL181461	1	Toggle/Rocker Switch	-
3	L222109	3	Tie Band	-
4	57M7255	1	Elec. Connector Housing	Connection Point on Wiring Harness W761, X644F
4	57M7317	1	Elec. Connector Accessory	-
4	57M7259	1	Elec. Connector Seal	-
4	R104846	3	Elec. Connector Terminal	Cavity A, B, C
4	57M7493	3	Elec. Connector Seal	Cavity A, B, C
5	R104919	3	Elec. Connector Terminal	Cavity A, B, C
5	57M7493	3	Elec. Connector Seal	Cavity A, B, C
5	57M7259	1	Elec. Connector Seal	-
5	57M7289	1	Elec.Connect Locking Device	-
5	57M7256	1	Elec. Connector Housing	Interface Cab, X37M
6	57M7254	1	Elec. Connector Housing	Connection Point on Wiring Harness W761, X37F-1
6	57M7289	1	Elec.Connect Locking Device	-
6	57M7259	1	Elec. Connector Seal	-
6	R104846	2	Elec. Connector Terminal	Cavity A, B
6	57M7493	2	Elec. Connector Seal	Cavity A, B
7	57M7257	1	Elec. Connector Housing	Switch for Electro-Hydraulic Pick-Up Hitch, X645M
7	57M7317	1	Elec. Connector Accessory	-
7	57M7259	1	Elec. Connector Seal	-
7	R104919	3	Elec. Connector Terminal	Cavity A, B, C
7	57M7493	3	Elec. Connector Seal	Cavity A, B, C

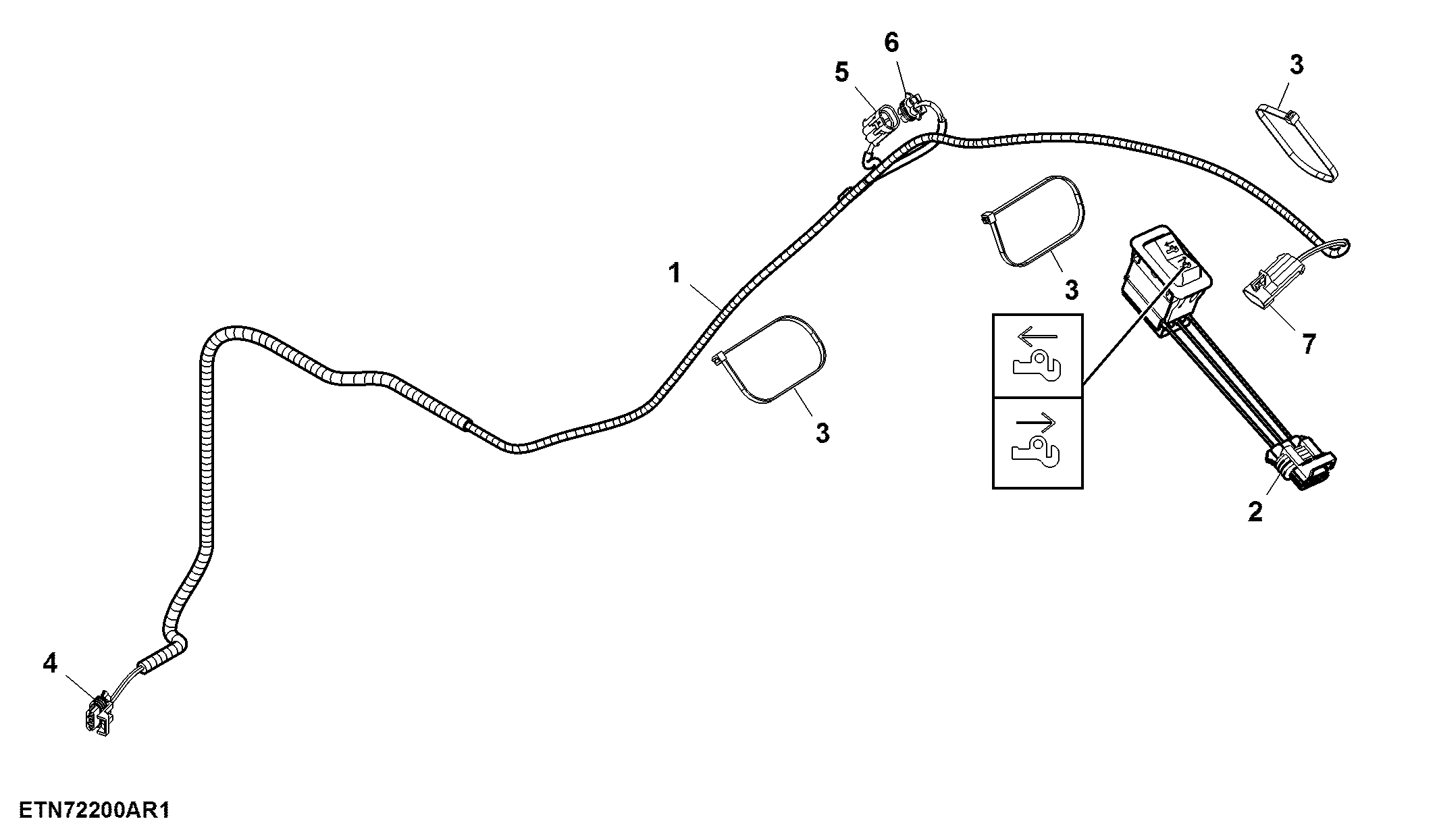

Wiring Harness, W/ Electro Hydraulical Pick-Up Hitch
