Wiring Harness, Midstack SCV, Attachment (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL221523	1	Wiring Harness	-
2	AL221526	1	Wiring Harness	-
3	57M8075	1	Elec. Connector Seal	-
3	57M8082	1	Elec. Connector Accessory	-
3	57M9042	15	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
3	57M7400	15	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
3	57M7399	1	Elec. Connector Seal	Cavity 16
3	57M8069	2	Elec. Connector Housing	Connection Point between Wiring Harnesses W291 and W751, X921M
4	57M10770	5	Elec. Connector Terminal	Cavity A, B, D, E, F
4	57M7259	1	Elec. Connector Seal	Cavity C
4	57M9215	5	Elec. Connector Seal	Cavity A, B, D, E, F
4	57M7291	1	Electrical Connector Assy	-
4	57M7260	2	Elec. Connector Housing	Connection Point between Harnesses W751 or W901 and W912, X1268F
5	57M7328	2	Elec. Connector Housing	Connection Point between Harnesses W751 or W901 and W912, X1278F
5	57M7289	1	Elec.Connect Locking Device	-
5	57M10770	2	Elec. Connector Terminal	Cavity A, B
5	57M9215	2	Elec. Connector Seal	Cavity A, B
6	57M7259	1	Elec. Connector Seal	Cavity H
6	57M9214	7	Elec. Connector Seal	Cavity A, B, C, D, E, F, G
6	57M7296	1	Elec. Connector Accessory	-
6	57M7261	2	Elec. Connector Housing	Connection Point between Wiring Harnesses W751 and W921, X1169F
6	57M7494	7	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G
7	57M9215	5	Elec. Connector Seal	Cavity E, F, G, H, K
7	57M7259	1	Elec. Connector Seal	Cavity C
7	57M7258	2	Elec. Connector Seal	Cavity D, J
7	57M9214	2	Elec. Connector Seal	Cavity A, B
7	57M10770	5	Elec. Connector Terminal	Cavity E, F, G, H, K
7	57M9541	2	Elec. Connector Terminal	Cavity D, J
7	57M7494	2	Elec. Connector Terminal	Cavity A, B
7	57M7281	1	Elec.Connect Locking Device	-
7	57M7262	2	Elec. Connector Housing	Connection Point between Harnesses W751 and W731, X1134F
8	57M10297	2	Elec. Connector Housing	Connection Point between Harnesses W751 and W752, X923F
8	57M12118	1	Elec. Connector Accessory	-
8	57M8565	3	Elec. Connector Terminal	Cavity 1, 8, 14
8	57M8545	9	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10, 13
8	57M8572	2	Elec. Connector Cavity Plug	Cavity 11, 12
9	57M9805	2	Elec. Connector Housing	Connection Point between Harnesses W291 and W751, X1168M
9	57M9813	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 10, 11
9	57M9812	2	Elec. Connector Terminal	Cavity 8, 9
9	57M10603	1	Elec. Connector Terminal	Cavity 12

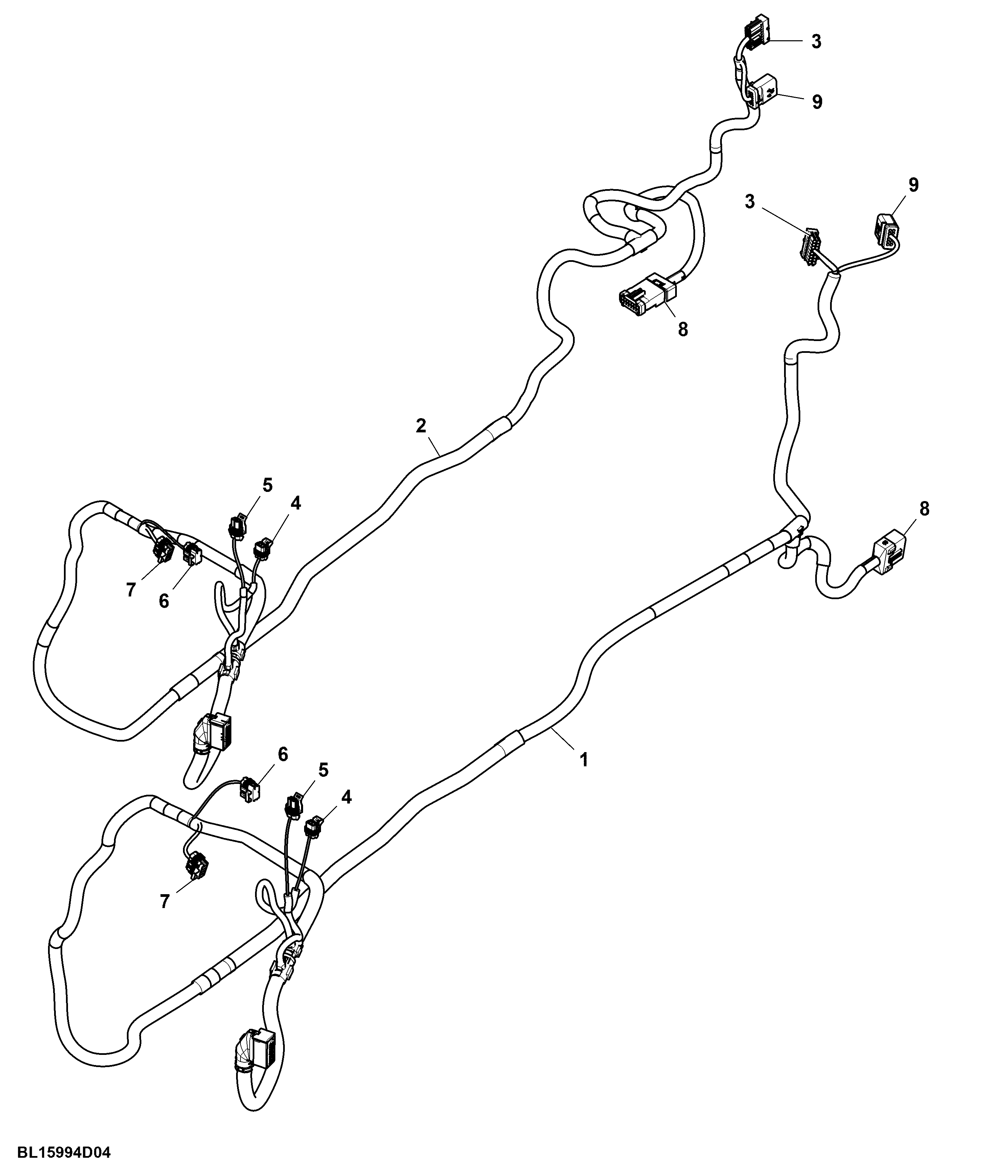

Wiring Harness, Midstack SCV, Attachment (2/2)

Нет текстового описания
