Wiring Harness, Hydraulic Quick Connect Coupler, W/ Memory Function, W/ Loader Working Lights, W/ Quick Unlatch Function (673929 - 924526)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L155583	1	Clamp	-
2	L210204	2	Tie Band	-
3	R44302	3	Tie Band	-
4	L154171	1	Clip	-
5	AL213621	1	Wiring Harness	-
6	AL221623	1	Wiring Harness	-
7	L210203	2	Clip	-
8	DC216032	1	Electrical Connector Assy	-
9	57M7264	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W751 and W921, X1169M
9	57M7296	1	Elec. Connector Accessory	-
9	57M7252	7	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G
9	57M9215	7	Elec. Connector Seal	Cavity A, B, C, D, E, F, G
9	57M7259	1	Elec. Connector Seal	Cavity H
10	57M8218	1	Elec. Connector Accessory	-
10	57M9215	2	Elec. Connector Seal	Cavity A, B
10	R104846	2	Elec. Connector Terminal	Cavity A, B
10	57M7254	1	Elec. Connector Housing	Memo™ Function, X455F
11	57M7263	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W901 and W912, X312M
11	57M7252	5	Elec. Connector Terminal	Cavity A, B, D, E, F
11	57M9215	5	Elec. Connector Seal	Cavity A, B, D, E, F
11	57M7259	1	Elec. Connector Seal	Cavity C
12	57M7985	1	Electrical Connector Assy	Connection Point between Wiring Harnesses W901 and W912, X423M
12	57M8218	1	Elec. Connector Accessory	-
12	57M7252	2	Elec. Connector Terminal	Cavity A, B
12	57M9215	2	Elec. Connector Seal	Cavity A, B
13	57M9821	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W911 and W912, X445M
13	57M10603	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	57M10336	1	Elec. Connector Cavity Plug	Cavity 4

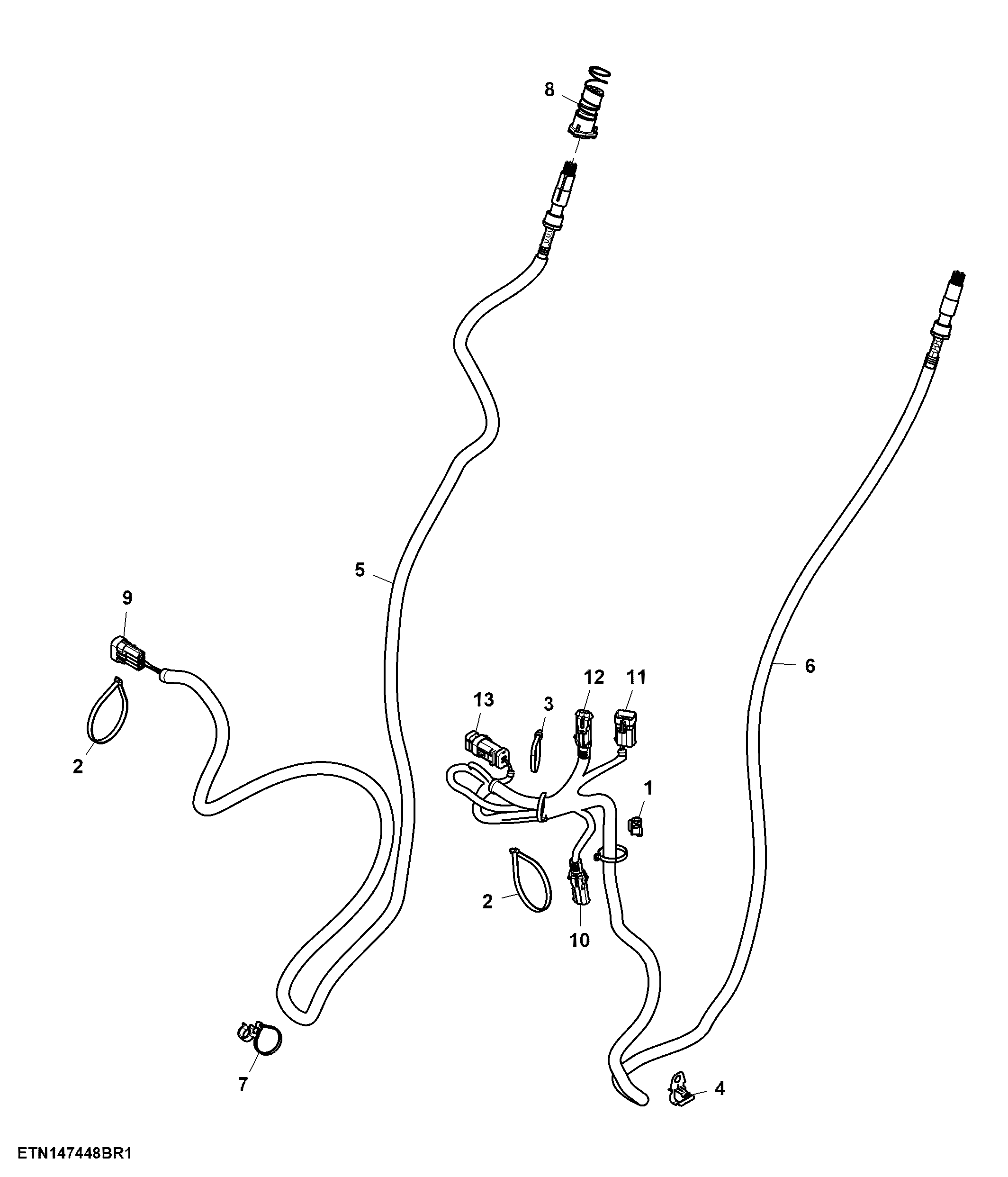

Wiring Harness, Hydraulic Quick Connect Coupler, W/ Memory Function, W/ Loader Working Lights, W/ Quick Unlatch Function (673929 - 924526)

Нет текстового описания
