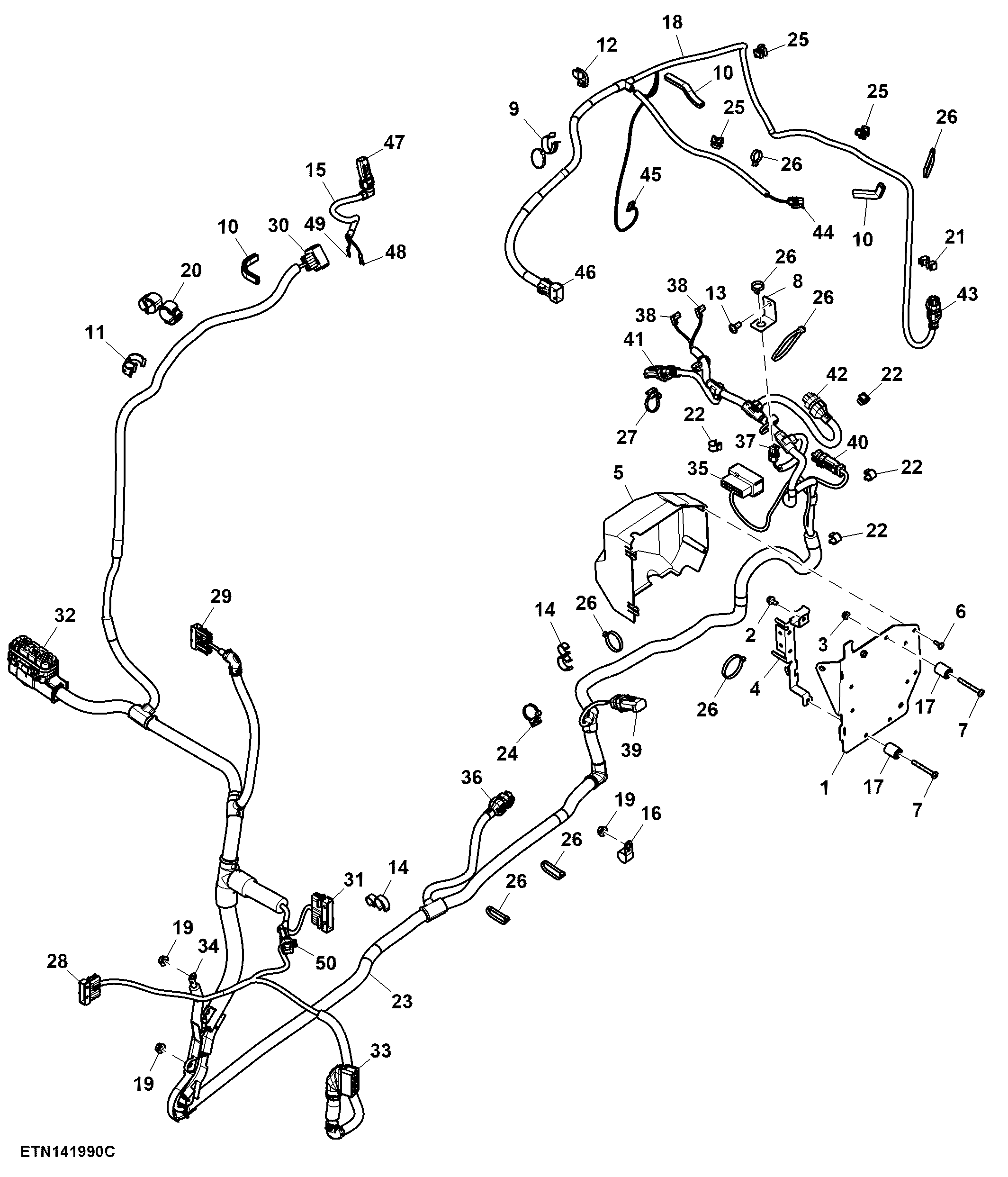

Wiring Harness, Front Chassis, W/O Front Controller (673929 - 924526)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L211510	1	Retainer	-
2	19M7774	1	Screw	M6 X 12
3	14M7303	2	Flange Nut	M6
4	L211511	1	Retainer	-
5	L205154	1	Cover	-
6	L113415	2	Screw	-
7	L209723	3	Screw	-
8	L212594	1	Angle	-
9	AZ101486	1	Clip	-
10	L152663	3	Weatherstrip	LGTH = 90 mm
11	L206205	1	Clamp	-
12	L206646	1	Tie Band	-
13	R264173	1	Bolt	-
14	AL159725	3	Clamp	-
15	AL215069	1	Wiring Harness	-
16	57M9856	1	Clamp	-
17	L210308	3	Bushing	-
18	AL218217	1	Wiring Harness	ORDER AL228191
18	AL228191	1	Wiring Harness	-
19	14M7298	4	Flange Nut	M8
20	AL224003	2	Clamp	-
21	AL173227	2	Clip	-
22	L173956	4	Clamp	-
23	AL224891	1	Wiring Harness	-
24	L206645	1	Tie Band	-
25	L171201	4	Clip	-
26	57M12234	11	Elec. Connector Accessory	-
27	L171035	1	Tie Band	-
28	57M7400	9	Elec. Connector Seal	Cavity 7, 8, 9, 10, 11, 12, 13, 14, 15
28	57M7401	1	Elec. Connector Cavity Plug	Cavity 16
28	57M8075	1	Elec. Connector Seal	-
28	57M7399	6	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6
28	57M8069	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X1005M
28	57M8082	1	Elec. Connector Accessory	-
28	57M9042	9	Elec. Connector Terminal	Cavity 7, 8, 9, 10, 11, 12, 13, 14, 15
29	57M8069	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X1080M
29	57M8082	1	Elec. Connector Accessory	-
29	57M9042	6	Elec. Connector Terminal	Cavity 1, 4, 6, 7, 8, 11
29	57M7400	6	Elec. Connector Seal	Cavity 1, 4, 6, 7, 8, 11
29	57M7399	3	Elec. Connector Seal	Cavity 5, 10, 12
29	57M8075	1	Elec. Connector Seal	-
29	57M7401	7	Elec. Connector Cavity Plug	Cavity 2, 3, 9, 13, 14, 15, 16
30	57M8071	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X1233F
30	57M7401	1	Elec. Connector Cavity Plug	Cavity 7
30	57M7399	9	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10
30	57M8079	9	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10
30	57M8081	1	Elec. Connector Accessory	-
31	57M7401	8	Elec. Connector Cavity Plug	Cavity 4, 5, 9, 13, 15, 16, 23, 24
31	57M8084	1	Elec. Connector Accessory	-
31	57M8076	1	Elec. Connector Terminal	-
31	57M7399	3	Elec. Connector Seal	Cavity 8, 10, 12
31	57M7400	13	Elec. Connector Seal	Cavity 1, 2, 3, 6, 7, 11, 14, 17, 18, 19, 20, 21, 22
31	57M9042	13	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 11, 14, 17, 18, 19, 20, 21, 22
31	57M8070	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X1120M
32	RE538505	1	Elec. Connector Accessory	Connection point on Wiring Harness W511, Engine Control Unit, X021F-3
32	57M13590	2	Elec. Connector Accessory	-
32	R528122	1	Elec. Connector Accessory	-
32	57M9808	3	Elec. Connector Terminal	Cavity 1, 2, 31
32	57M10321	19	Elec. Connector Terminal	Cavity 6, 7, 11, 12, 13, 14, 16, 17, 23, 24, 25, 27, 32, 43, 44, 45, 50, 52, 53
32	57M10336	32	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 8, 9, 10, 15, 18, 19, 20, 21, 22, 26, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 46, 47, 48, 49, 51, 54
33	57M7400	1	Elec. Connector Seal	Cavity 4
33	57M7399	5	Elec. Connector Seal	Cavity 1, 2, 3, 5, 6
33	57M9157	4	Elec. Connector Seal	Cavity 11, 12, 13, 14
33	57M7403	5	Elec. Connector Cavity Plug	Cavity 7, 8, 9, 10, 15
33	57M11864	1	Elec. Connector Accessory	-
33	57M8584	1	Elec. Connector Terminal	Cavity 4
33	57M8585	5	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6
33	57M13596	1	Elec. Connector Accessory	-
33	57M11866	1	Elec. Connector Housing	Connector for Engine Connecting Wiring Harness W511, X1061F
33	57M9161	4	Elec. Connector Terminal	Cavity 11, 12, 13, 14
34	57M9419	1	Elec. Connector Terminal	Ground Point, XGND9
35	57M8072	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X1018F
35	57M8083	1	Elec. Connector Accessory	-
35	57M8079	5	Elec. Connector Terminal	Cavity 1, 3, 14, 15, 16
35	57M9532	4	Elec. Connector Terminal	Cavity 2, 5, 9, 10
35	57M7399	5	Elec. Connector Seal	Cavity 1, 3, 14, 15, 16
35	57M7400	4	Elec. Connector Seal	Cavity 2, 5, 9, 10
35	57M7401	7	Elec. Connector Cavity Plug	Cavity 4, 6, 7, 8, 11, 12, 13
36	57M9840	1	Elec. Connector Accessory	-
36	57M9809	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
36	57M9817	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X637F-1
37	57M7379	1	Elec. Connector Housing	Connector of Ambient Air Temperature Sensor, Front, X604F
37	57M8633	1	Elec. Connector Accessory	-
37	57M7829	2	Elec. Connector Terminal	Cavity A, B
37	57M9112	2	Elec. Connector Cavity Plug	-
38	57M7984	2	Elec. Connector Terminal	Connector for Horn, X066F-1/X066F-2
38	57M8024	1	Elec. Connector Terminal	Cavity 1
39	57M9818	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X1078F
39	57M10631	3	Elec. Connector Terminal	Cavity 1, 2, 4
39	57M10336	1	Elec. Connector Cavity Plug	Cavity 3
40	57M9776	1	Elec. Connector Housing	Connector of CAN Bus Terminating Resistor, X1316M
40	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
41	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
41	57M11333	1	Elec. Connector Accessory	-
41	57M9772	1	Elec. Connector Housing	Connector of Fuel Preheater, X079F-1
41	57M9837	1	Elec. Connector Accessory	-
42	57M9817	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X1070F
42	57M9840	1	Elec. Connector Accessory	-
42	57M10631	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
43	57M9772	1	Elec. Connector Housing	Water In Fuel Sensor, X690F
43	57M9837	1	Elec. Connector Accessory	-
43	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
44	57M7254	1	Elec. Connector Housing	Coolant Level Service Switch, X678F-2
44	57M9215	2	Elec. Connector Seal	Cavity A, B
44	R104846	2	Elec. Connector Terminal	Cavity A, B
44	57M8218	1	Elec. Connector Accessory	-
45	57M8481	1	Elec. Connector Terminal	Connector for Radiator Ground Connection, X305F
46	57M7401	5	Elec. Connector Cavity Plug	Cavity 1, 2, 5, 6, 8
46	57M8074	1	Elec. Connector Terminal	-
46	57M9042	4	Elec. Connector Terminal	Cavity 3, 4, 7, 9
46	57M7399	1	Elec. Connector Seal	Cavity 10
46	57M7400	4	Elec. Connector Seal	Cavity 3, 4, 7, 9
46	57M8080	1	Elec. Connector Accessory	-
46	57M8068	1	Elec. Connector Housing	Connection Point on Wiring Harness W521, X1079M
47	57M9776	1	Elec. Connector Housing	Connection Point on Wiring Harness W522, X575M
47	57M10155	1	Elec. Connector Accessory	-
47	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
48	57M7054	1	Elec. Connector Terminal	Connector for Fuel Pump, X804F-2
49	57M11295	1	Elec. Connector Terminal	Connector for Fuel Pump, X804F-1
50	57M7263	1	Elec. Connector Housing	Connection Point on Wiring Harness W511, X637M
50	57M7291	1	Electrical Connector Assy	-
50	57M9555	1	Clip	-
50	57M7495	4	Elec. Connector Terminal	Cavity A, B, C, D
50	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
50	57M7259	2	Elec. Connector Seal	Cavity E, F
