Control Unit / Wiring Harness, Heating / Air Conditioning

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL231153	1	Electronic Control Unit	SUB FOR APPL AL215824
2	L222108	1	Tie Band	-
3	L152335	1	Cover	-
4	L214003	1	Bracket	-
5	AL156227	1	Control	-
6	L215806	2	Screw	-
7	Z81259	1	Clamp	-
8	16M7101	2	Rivet	5 mm
9	AL209401	1	Wiring Harness	-
10	57M7259	1	Elec. Connector Seal	-
10	57M7296	1	Elec. Connector Accessory	-
10	57M9214	1	Elec. Connector Seal	Cavity G
10	57M7493	7	Elec. Connector Seal	Cavity A, B, C, D, E, F, H
10	R104919	8	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H
10	57M7264	1	Elec. Connector Housing	Connection Point between Harnesses W201 and W261, X818M
11	57M7953	1	Electrical Connector Assy	Heater Valve, X655F, B131
11	57M7955	5	Elec. Connector Seal	Cavity 1, 2, 3, 5, 6
11	57M7956	1	Elec. Connector Terminal	-
12	57M7254	1	Elec. Connector Housing	Evaporator Core Temperature Sensor, X598F, B129
12	R104846	2	Elec. Connector Terminal	Cavity A,B
12	57M7493	2	Elec. Connector Seal	Cavity A,B
12	57M7259	1	Elec. Connector Seal	-
12	57M7289	1	Elec.Connect Locking Device	-
13	57M7796	1	Elec. Connector Housing	Refrigerant Pressure Sensor, X600F, B130
13	R104701	3	Elec. Connector Terminal	Cavity A,B, C

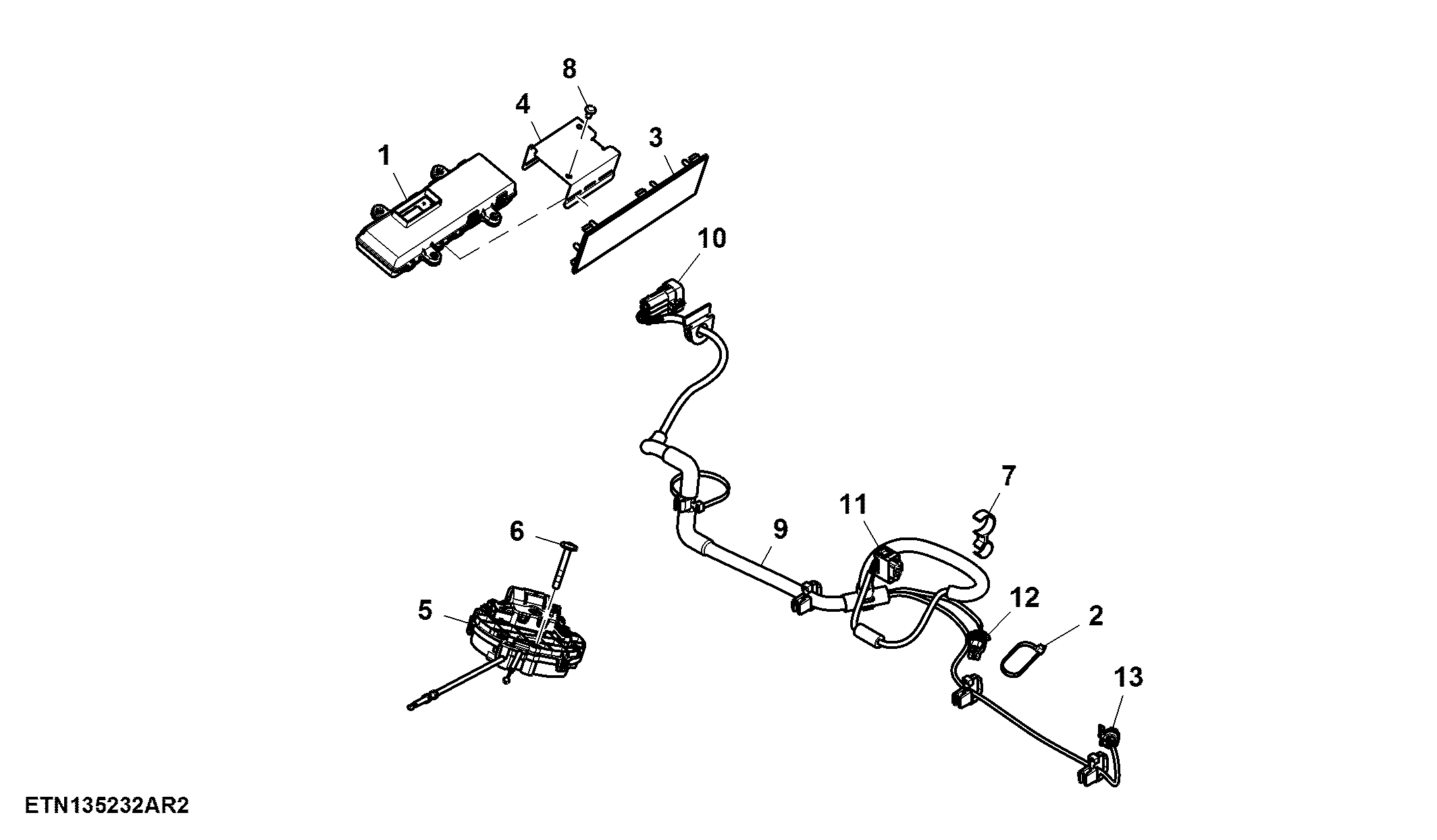

Control Unit / Wiring Harness, Heating / Air Conditioning

Нет текстового описания
