Открытый узел

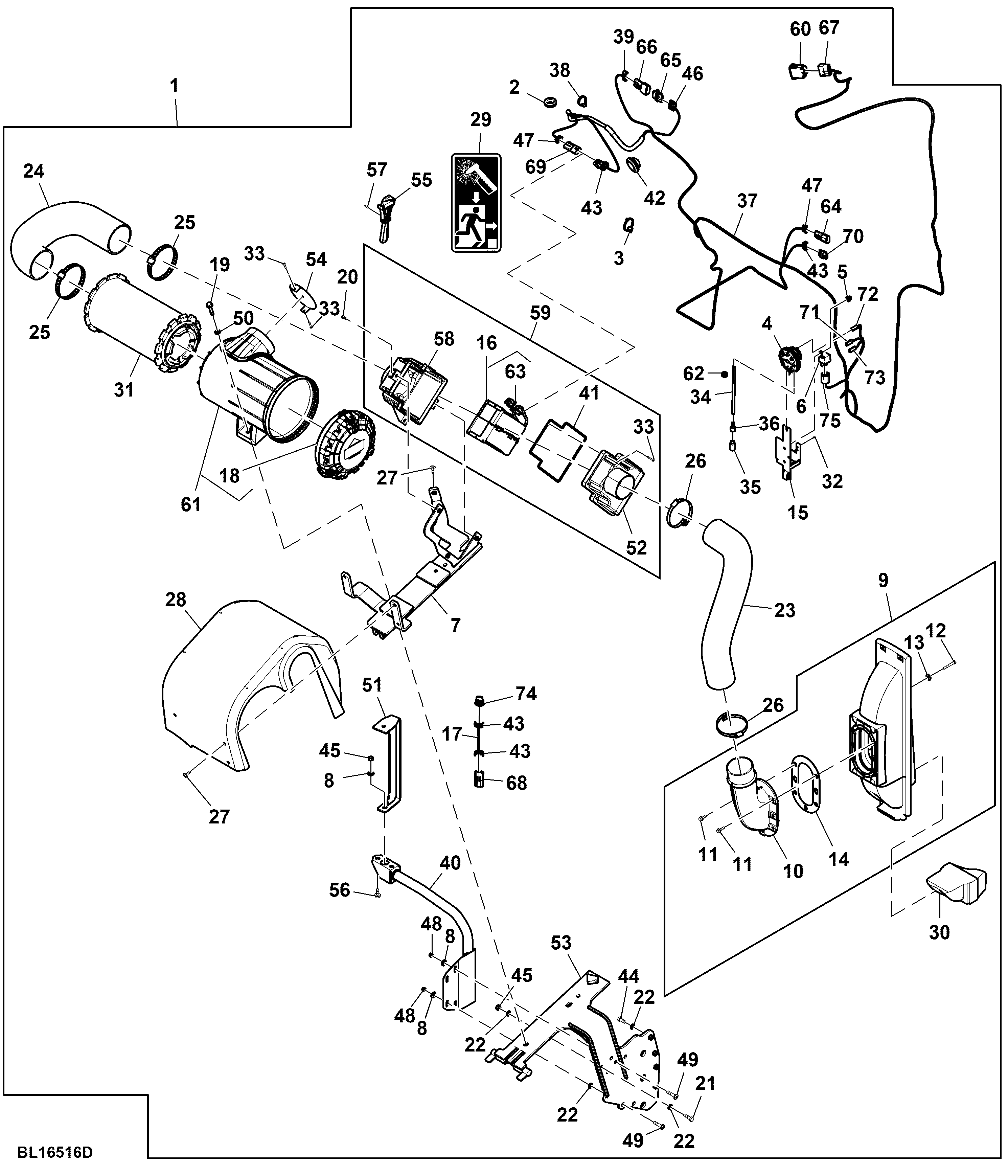

Air Filtration System, Category 4 Cab, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL16516	1	Activated Carbon Air Filter	-
2	L100644	1	Grommet	-
3	RE258807	1	Tie Band	-
4	AKK32209	1	Pressure Switch	-
5	L40924	1	Nut	-
6	AL150015	1	Relay	-
7	AL232399	1	Bracket	-
8	24M7139	4	Washer	6.400 X 18 X 1.600 mm
9	AL232409	1	Cover	-
10	SU57364	1	Air Duct	-
11	19M7862	7	Screw	M6 X 20
12	19M7299	4	Cap Screw	M6 X 45
13	24M7251	4	Washer	6.400 X 18 X 1.600 mm
14	SU58049	1	Seal	-
15	AL232908	1	Bracket	-
16	AL221364	1	Blower	-
17	AL233369	1	Wiring Harness	-
18	KK54620	1	Filter Housing	-
19	19M9840	2	Screw	M8 X 40
20	R235299	3	Screw	-
21	19M7377	6	Cap Screw	M8 X 28
22	24M7537	16	Washer	8.400 X 15 X 1.600 mm
23	KK56005	1	Hose	-
24	L225649	1	Hose	-
25	AL112934	2	Clamp	-
26	KK57356	2	Clamp	-
27	L214410	4	Screw	-
28	L225468	1	Cover	-
29	R557104	1	Label	RH
30	L225469	1	Sealant	-
31	KK57033	1	Air Filter	-
32	L222902	2	Screw	-
33	L201910	8	Screw	-
34	KK56660	1	Hose	LGTH = 245 mm
35	N303869	1	Muffler	-
36	KK60883	1	Fitting	-
37	AL233177	1	Wiring Harness	-
38	57M13596	1	Elec. Connector Accessory	-
39	57M7307	1	Electrical Connector Assy	-
40	AL204450	1	Bracket	LH
41	KK55077	1	Seal	-
42	L112548	1	Grommet	SUB FOR APPL L100781
43	57M8129	4	Elec. Connector Terminal	-
44	19M7139	4	Cap Screw	M8 X 20
45	14M7273	7	Nut	M8
46	57M7274	1	Elec. Connector Accessory	-
47	57M7306	2	Elec.Connect Locking Device	-
48	14M7165	3	Lock Nut	M6
49	L218822	3	Screw	-
50	24M7037	2	Washer	9 X 16 X 2 mm
51	AL233608	1	Bracket	-
52	KK55076	1	Air Duct	-
53	AL233604	1	Bracket	-
54	L226136	1	Cover	-
55	AXE66081	1	Hammer	-
56	19M8331	2	Screw	M8 X 20
57	37M7435	2	Screw	-
58	KK55075	1	Air Duct	-
59	AL233627	1	Activated Carbon Air Filter	-
60	AKK32208	1	Indicator	-
61	AKK39312	1	Filter Housing	-
62	L112709	1	Grommet	-
63	57M8839	1	Elec. Connector Housing	-
64	57M8958	1	Elec. Connector Housing	Pressurizer Fan Motor for Pressure Inside Cab, X046M-1
64	57M7285	2	Elec. Connector Terminal	Cavity A, B
64	57M9218	2	Elec. Connector Seal	Cavity A, B
64	57M8129	1	Elec. Connector Terminal	-
65	57M7299	1	Elec. Connector Terminal	Cavity C
65	57M7274	1	Elec. Connector Accessory	-
65	57M9217	1	Elec. Connector Seal	Cavity C
65	57M9218	2	Elec. Connector Seal	Cavity A, B
65	57M7491	2	Elec. Connector Terminal	Cavity A, B
65	57M7280	1	Elec. Connector Housing	Connection Point between W_CAT01 and W021, X1308F-6
66	57M7305	1	Elec. Connector Housing	Connection Point between W_CAT01 and W021, X1308M-6
66	57M7527	2	Elec. Connector Terminal	Cavity A, B
66	57M7286	1	Elec. Connector Terminal	Cavity C
66	57M9218	2	Elec. Connector Seal	Cavity A, B
66	57M9217	1	Elec. Connector Seal	Cavity C
66	57M7307	1	Electrical Connector Assy	-
67	57M7401	6	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 4, 5, 6
67	57M7400	4	Elec. Connector Seal	Cavity 7, 8, 9, 10
67	57M8579	1	Elec. Connector Housing	Air Pressure Indicator, XP035F
67	57M9532	4	Elec. Connector Terminal	Cavity 7, 8, 9, 10
68	57M8958	1	Elec. Connector Housing	Right Side-Facing Worklight on Rear of Roof, X1222M
68	57M7285	2	Elec. Connector Terminal	Cavity A, B
68	57M9219	2	Elec. Connector Seal	Cavity A, B
68	57M8129	1	Elec. Connector Terminal	-
69	57M8958	1	Elec. Connector Housing	Blower Motor (Cab Category 4), XM011M
69	57M7527	2	Elec. Connector Terminal	Cavity A, B
69	57M9218	2	Elec. Connector Seal	Cavity A, B
69	57M8129	1	Elec. Connector Terminal	-
70	57M8129	1	Elec. Connector Terminal	-
70	57M9218	2	Elec. Connector Seal	Cavity A, B
70	57M7491	2	Elec. Connector Terminal	Cavity A, B
70	57M8839	1	Elec. Connector Housing	Connection Point between W_CAT01 and W201, X046F
71	57M7067	1	Elec. Connector Housing	Pressure Switch (Cab Category 4), XS212F-1
71	57M7430	1	Elec. Connector Terminal	Cavity A
72	57M7067	1	Elec. Connector Housing	Pressure Switch (Cab Category 4), XS212F-3
72	57M7430	1	Elec. Connector Terminal	Cavity A
73	57M7067	1	Elec. Connector Housing	Pressure Switch (Cab Category 4), XS212F-2
73	57M7430	1	Elec. Connector Terminal	Cavity A
74	57M8839	1	Elec. Connector Housing	Right Side-Facing Worklight on Rear of Roof, X1222F-1
74	57M7297	2	Elec. Connector Terminal	Cavity A, B
74	57M9219	2	Elec. Connector Seal	Cavity A, B
74	57M8129	1	Elec. Connector Terminal	-
75	L35168	1	Elec. Connector Housing	Relay for Blower Motor (Cab Category 4), XK075F
75	57M7106	3	Elec. Connector Terminal	Cavity 30, 85, 87
75	57M7089	1	Elec. Connector Terminal	Cavity 86

Air Filtration System, Category 4 Cab, Attachment
