Wiring Harness, Midstack SCV, W/O Front Hitch (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL230134	1	Wiring Harness	ORDER AL233329
1	AL234950	1	Wiring Harness	SUB FOR AL233329 APPL
1	AL227839	1	Wiring Harness	-
2	57M10297	1	Elec. Connector Housing	Connection Point between Harnesses W751 and W752, X923F
2	57M8565	2	Elec. Connector Terminal	Cavity 1, 8
2	57M8545	9	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10, 13
2	57M8543	1	Elec. Connector Terminal	Cavity 14
2	57M8572	2	Elec. Connector Cavity Plug	Cavity 11, 12
2	57M12118	1	Elec. Connector Accessory	-
2	57M11374	1	Elec. Connector Accessory	-
3	57M10770	2	Elec. Connector Terminal	Cavity A, B
3	57M7289	1	Elec.Connect Locking Device	-
3	57M9215	2	Elec. Connector Seal	Cavity A, B
3	57M7328	1	Elec. Connector Housing	Connection Point between Harnesses W751 or W901 and W912, X1278F
4	57M7260	1	Elec. Connector Housing	Connection Point between Harnesses W751 or W901 and W912, X1268F
4	57M10770	5	Elec. Connector Terminal	Cavity A, B, D, E, F
4	57M9215	5	Elec. Connector Seal	Cavity A, B, D, E, F
4	57M7259	1	Elec. Connector Seal	Cavity C
4	57M7291	1	Electrical Connector Assy	-
5	57M7281	1	Elec.Connect Locking Device	-
5	57M7259	1	Elec. Connector Seal	Cavity C
5	57M9215	5	Elec. Connector Seal	Cavity E, F, G, H, K
5	57M7258	2	Elec. Connector Seal	Cavity D, J
5	57M10770	5	Elec. Connector Terminal	Cavity E, F, G, H, K
5	57M9541	2	Elec. Connector Terminal	Cavity D, J
5	57M7494	2	Elec. Connector Terminal	Cavity A, B
5	57M7262	1	Elec. Connector Housing	Connection Point between Harnesses W751 and W731, X1134F
5	57M9214	2	Elec. Connector Seal	Cavity A, B
6	57M9800	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W751 and W921, X1169F
6	57M9809	7	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 7, 8, 9
6	57M10631	3	Elec. Connector Terminal	Cavity 10, 11, 12
6	57M10336	2	Elec. Connector Cavity Plug	Cavity 4, 6
7	57M9805	1	Elec. Connector Housing	Connection Point between Harnesses W291 and W751, X1168M
7	57M9813	9	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 8, 9, 10, 11
7	57M10603	1	Elec. Connector Terminal	Cavity 12
7	R78069	2	Elec. Connector Cavity Plug	Cavity 4, 7
8	57M7400	15	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
8	57M8082	1	Elec. Connector Accessory	-
8	57M8075	1	Elec. Connector Seal	-
8	57M7399	1	Elec. Connector Seal	Cavity 16
8	57M9042	15	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
8	57M8069	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W291 and W751, X921M
9	57M11985	1	Elec. Connector Housing	X845F
9	57M8585	2	Elec. Connector Terminal	Cavity 1, 2
9	57M8584	1	Elec. Connector Terminal	Cavity 6
9	57M9161	8	Elec. Connector Terminal	Cavity 7, 8, 9, 10, 12, 13, 14, 15
9	57M7399	2	Elec. Connector Seal	Cavity 1, 2
9	57M7400	1	Elec. Connector Seal	Cavity 6
9	57M7402	3	Elec. Connector Cable Seal	Cavity 7, 8, 9
9	57M9157	5	Elec. Connector Seal	Cavity 10, 12, 13, 14, 15
9	57M7401	3	Elec. Connector Cavity Plug	Cavity 3, 4, 5
9	57M7403	1	Elec. Connector Cavity Plug	Cavity 11
9	57M11864	1	Elec. Connector Accessory	-
9	57M13596	1	Elec. Connector Accessory	-

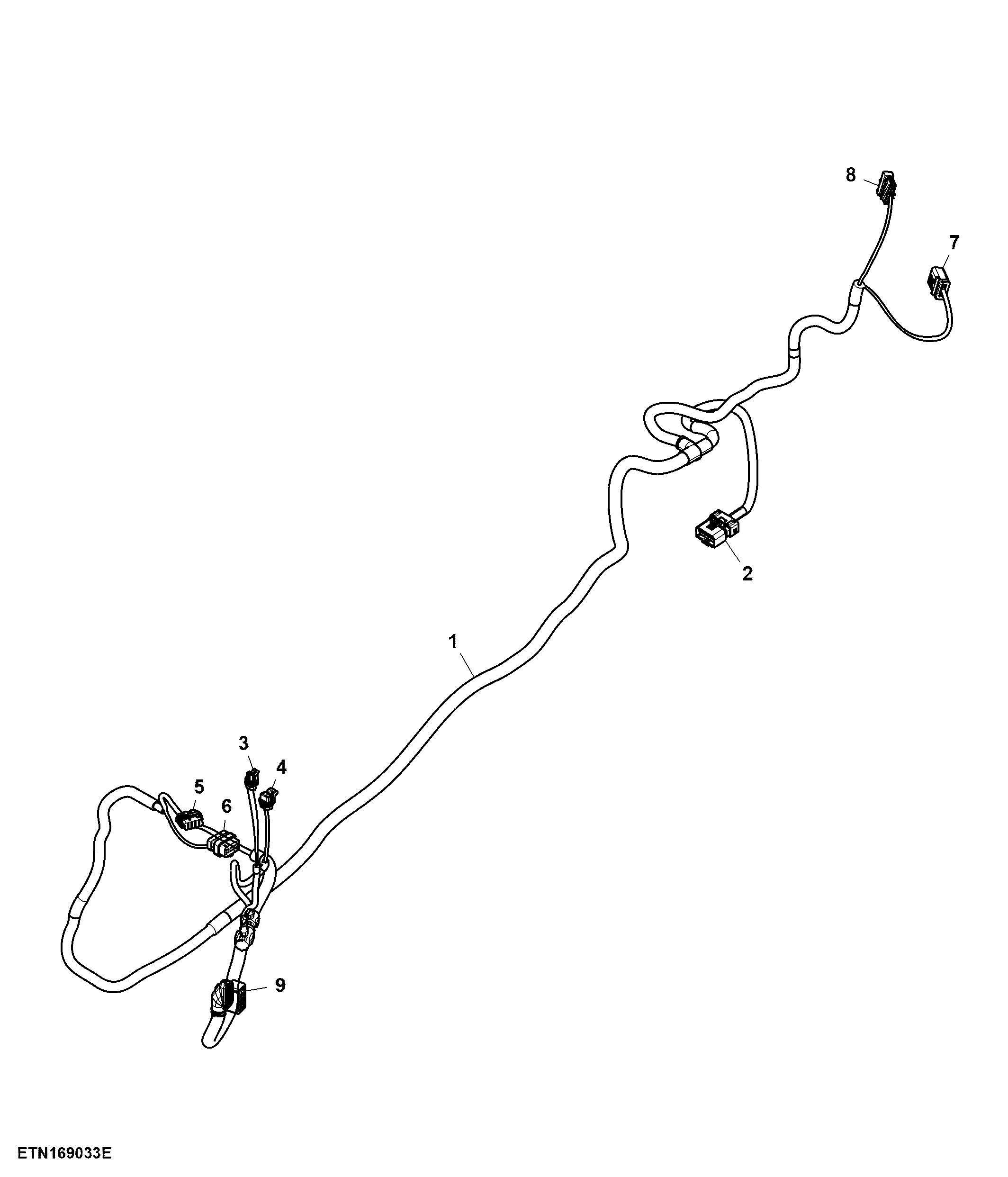

Wiring Harness, Midstack SCV, W/O Front Hitch (2/2)
