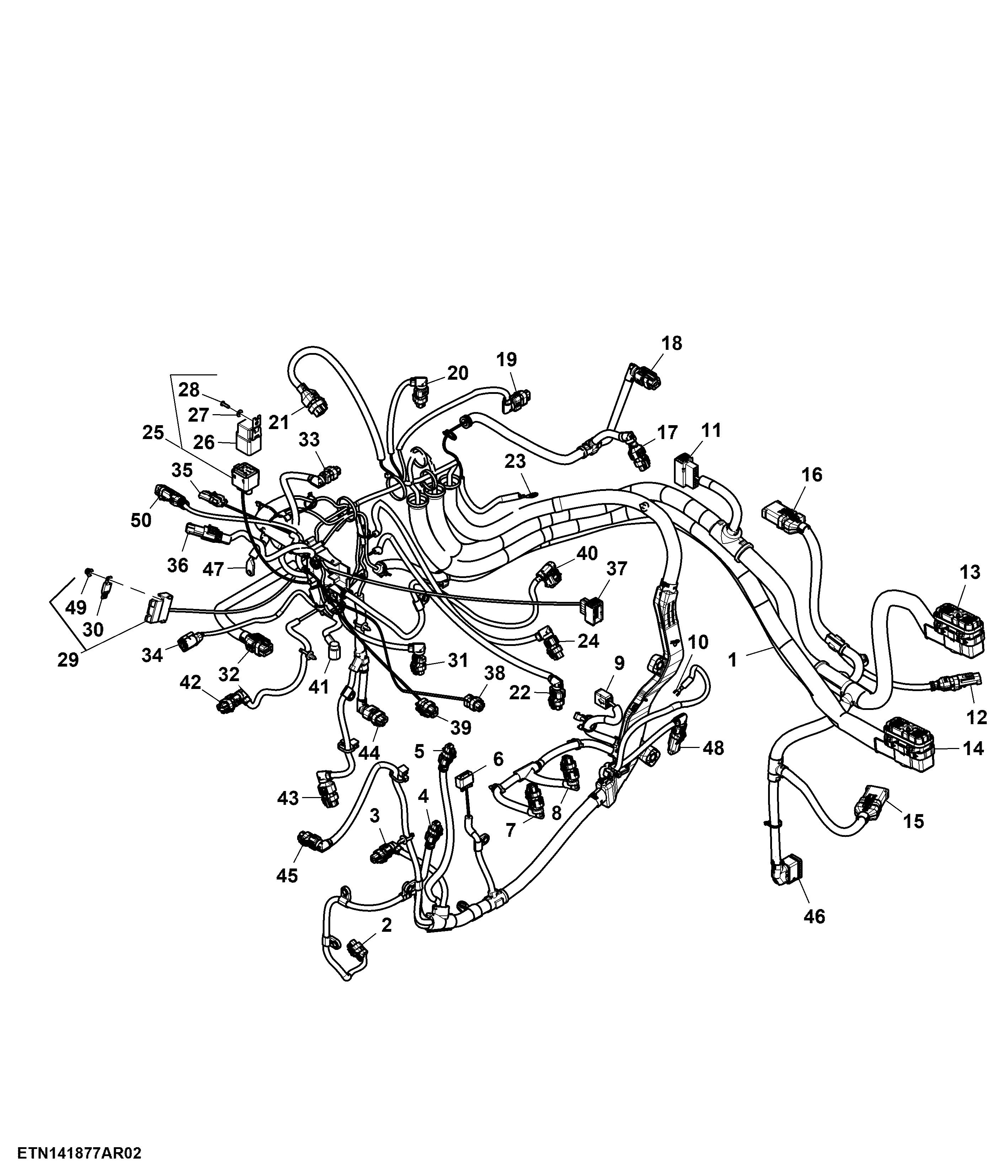

Wiring Harness, Engine (2/2) (866041 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL221031	1	Wiring Harness	-
2	57M9775	1	Elec. Connector Housing	Crankshaft Speed Sensor, X681F
2	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
3	57M9775	1	Elec. Connector Housing	Camshaft Speed Sensor, X682F
3	57M10155	1	Elec. Connector Accessory	-
3	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
4	57M9772	1	Elec. Connector Housing	Control Valve 1 for Fuel Pressure, X700F-2
4	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
4	57M9837	1	Elec. Connector Accessory	-
5	57M9772	1	Elec. Connector Housing	Control Valve 2 for Fuel Pressure, X703F-2
5	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
5	57M9837	1	Elec. Connector Accessory	-
6	57M11246	1	Elec. Connector Housing	Sensor for Fuel Rail Pressure, X671F
6	57M11262	3	Elec. Connector Terminal	Cavity 1, 2, 3
6	57M11251	3	Elec. Connector Seal	Cavity 1, 2, 3
7	57M9780	1	Elec. Connector Housing	Pressure Sensor for Low-Pressure Fuel, X668F-2
7	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
7	57M10158	1	Elec. Connector Accessory	-
8	57M9774	1	Elec. Connector Housing	Fuel Temperature Sensor, X677F-2
8	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
9	57M11251	2	Elec. Connector Seal	Cavity 1, 2
9	57M11258	2	Elec. Connector Terminal	Cavity 1, 2
9	57M11238	1	Elec. Connector Housing	Relief Valve for Fuel Rail Pressure, X704F
10	57M7054	1	Elec. Connector Terminal	Starter Motor, M1-50F
11	57M8072	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W511, X1080F
11	57M8079	4	Elec. Connector Terminal	Cavity 3, 4, 5, 10
11	57M9532	4	Elec. Connector Terminal	Cavity 6, 7, 8, 11
11	57M7399	4	Elec. Connector Seal	Cavity 3, 4, 5, 10
11	57M7400	4	Elec. Connector Seal	Cavity 6, 7, 8, 11
11	57M7401	8	Elec. Connector Cavity Plug	Cavity 1, 2, 9, 12, 13, 14, 15, 16
11	57M8083	1	Elec. Connector Accessory	-
12	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
12	57M11333	1	Elec. Connector Accessory	-
12	57M9837	1	Elec. Connector Accessory	-
12	57M9775	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W501 and W543, X077F
13	RE538504	1	Elec. Connector Accessory	Sensor for Engine Oil Level, X021F-2
13	57M10321	37	Elec. Connector Terminal	Cavity 1, 5, 6, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 20, 21, 22, 24, 25, 27, 28, 29, 30, 31, 32, 36, 37, 38, 39, 40, 41, 42, 46, 47, 51, 52, 53, 54
13	57M9808	3	Elec. Connector Terminal	Cavity 35, 44, 50
13	57M10336	14	Elec. Connector Cavity Plug	Cavity 2, 3, 4, 7, 8, 19, 23, 26, 33, 34, 43, 45, 48, 49
13	R528122	1	Elec. Connector Accessory	-
14	57M10336	4	Elec. Connector Cavity Plug	Cavity 20, 40, 47, 53
14	R528122	1	Elec. Connector Accessory	-
14	RE538503	1	Elec. Connector Accessory	Sensor for Engine Oil Level, X021F-1
14	57M9808	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 13, 33, 43, 44, 45, 46
14	57M10321	40	Elec. Connector Terminal	Cavity 5, 6, 7, 8, 9, 10, 11, 12, 14, 15, 16, 17, 18, 19, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 34, 35, 36, 37, 38, 39, 41, 42, 48, 49, 50, 51, 52, 54
15	57M10631	8	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 8, 9, 12
15	57M9808	4	Elec. Connector Terminal	Cavity 4, 5, 10, 11
15	57M9844	1	Elec. Connector Accessory	-
15	57M11338	1	Elec. Connector Accessory	-
15	57M9802	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W542, X1253F
16	57M9808	2	Elec. Connector Terminal	Cavity 11, 12
16	57M11338	1	Elec. Connector Accessory	-
16	57M9844	1	Elec. Connector Accessory	-
16	57M10336	1	Elec. Connector Cavity Plug	Cavity 8
16	57M10631	8	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10
16	57M9809	1	Elec. Connector Terminal	Cavity 1
16	57M9800	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W531, X1053F
17	57M9782	1	Elec. Connector Housing	Exhaust Manifold Pressure Sensor, X664F-2
17	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
17	57M9850	1	Elec. Connector Accessory	-
18	57M10230	1	Elec. Connector Accessory	-
18	57M10321	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
18	57M9786	1	Elec. Connector Housing	Actuator for EGR Valve, X705F-2
18	57M10336	1	Elec. Connector Cavity Plug	Cavity 5
19	57M9780	1	Elec. Connector Housing	EGR Flow Sensor, X665F
19	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
19	57M10156	1	Elec. Connector Accessory	-
20	57M9774	1	Elec. Connector Housing	EGR Temperature Sensor, X674F
20	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
20	57M10155	1	Elec. Connector Accessory	-
21	57M9786	1	Elec. Connector Housing	Air Throttle Actuator, X706F
21	57M9841	1	Elec. Connector Accessory	-
21	57M10336	1	Elec. Connector Cavity Plug	Cavity 5
21	57M10321	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
22	57M9782	1	Elec. Connector Housing	Sensor for Engine Oil Pressure, X663F-1
22	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
22	57M10156	1	Elec. Connector Accessory	-
23	57M7111	1	Elec. Connector Terminal	Ground Engine Controller, XGND74
24	57M10155	1	Elec. Connector Accessory	-
24	57M9773	1	Elec. Connector Housing	Sensor for Manifold Air Temperature, X673F
24	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
25	57M8233	1	Electrical Connector Assy	Heating Element for Electrical Starting Aid, K046
25	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
25	57M10210	2	Elec. Connector Terminal	Cavity 3, 5
25	57M8237	2	Elec. Connector Seal	Cavity 1, 2
26	AL156697	1	Relay	70 A, INCLUDES 24M7146, 37M7179
27	24M7146	1	Washer	4.300 X 12 X 1 mm
28	37M7179	1	Screw	-
29	57M7855	2	Elec. Connector Terminal	Cavity 1, 2
29	57M10662	1	Elec. Connector Accessory	Fuse for Electrical Starting Aid, F030
30	57M8048	1	Fuse	70 A
31	57M9781	1	Elec. Connector Housing	Manifold Air Pressure Sensor, X666F
31	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
31	57M10156	1	Elec. Connector Accessory	-
32	57M9792	1	Elec. Connector Housing	Injection Valves for 6-Cylinder Engines, X698F
32	57M9808	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8
32	57M9843	1	Elec. Connector Accessory	-
33	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
33	57M10155	1	Elec. Connector Accessory	-
33	57M9773	1	Elec. Connector Housing	Sensor for Outlet Temperature of Charge Air Cooler, X672F
34	57M11537	1	Elec. Connector Housing	Battery Cut-Off Relay, X325F
34	57M7981	1	Elec. Connector Seal	Cavity 1
34	57M7983	1	Electrical Connector Assy	Cavity 2
35	57M7254	1	Elec. Connector Housing	Compressor Clutch for Air Trailer Brakes, X699F
35	57M10770	2	Elec. Connector Terminal	Cavity A, B
35	57M9215	2	Elec. Connector Seal	Cavity A, B
35	57M7289	1	Elec.Connect Locking Device	-
35	57M11253	1	Elec. Connector Housing	-
36	57M7309	1	Elec. Connector Housing	A/C Compressor Clutch, X130F
36	57M10477	1	Elec. Connector Accessory	-
36	R78064	2	Elec. Connector Cavity Plug	-
36	57M7304	1	Elec. Connector Housing	-
36	57M7306	1	Elec.Connect Locking Device	-
36	57M9219	2	Elec. Connector Seal	Cavity A, B
36	57M7298	2	Elec. Connector Terminal	Cavity A, B
37	57M7401	4	Elec. Connector Cavity Plug	Cavity 1, 2, 5, 6
37	57M8081	1	Elec. Connector Accessory	-
37	57M7400	5	Elec. Connector Seal	Cavity 3, 4, 7, 8, 9
37	57M9532	5	Elec. Connector Terminal	Cavity 3, 4, 7, 8, 9
37	57M7399	10	Elec. Connector Seal	Cavity 10
37	57M8071	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W521, X1079F
37	57M8079	1	Elec. Connector Terminal	Cavity 10
38	57M9775	1	Elec. Connector Housing	Turbocharger Speed Sensor, X680F
38	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
39	57M9817	1	Elec. Connector Housing	VGT Actuator, X707F
39	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
39	57M9808	2	Elec. Connector Terminal	Cavity 3, 4
40	57M9144	1	Elec. Connector Housing	Intake Air Sensor, X684F
40	57M9831	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
40	57M9149	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
41	L205772	1	Electrical Connector Assy	Glow Plug, X630F
42	57M9781	1	Elec. Connector Housing	Coolant Pressure Sensor, X669F
42	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
42	57M10156	1	Elec. Connector Accessory	-
43	57M9817	1	Elec. Connector Housing	Sensor for Engine Oil Level, X687F
43	57M10321	2	Elec. Connector Terminal	Cavity 1, 3
43	57M9808	2	Elec. Connector Terminal	Cavity 2, 4
43	57M10227	1	Elec. Connector Accessory	-
44	57M10158	1	Elec. Connector Accessory	-
44	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
44	57M9783	1	Elec. Connector Housing	Crankcase Pressure Sensor, X667F-2
45	57M9773	1	Elec. Connector Housing	Coolant Temperature Sensor, X675F-2
45	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
45	57M10155	1	Elec. Connector Accessory	-
46	57M10958	1	Elec. Connector Housing	SCR Supply Module, X685F-2
46	57M11248	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
46	57M8241	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
46	57M7403	2	Elec. Connector Cavity Plug	Cavity 1, 7
46	57M13072	1	Elec. Connector Accessory	-
46	57M11439	1	Elec. Connector Accessory	-
47	57M7924	1	Elec. Connector Terminal	Glow Plug Power Supply, X1136
47	57M7924	1	Elec. Connector Terminal	Cavity 1
48	57M9772	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W522, X575F
48	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
48	57M10155	1	Elec. Connector Accessory	-
48	57M11333	1	Elec. Connector Accessory	-
49	14M7568	2	Lock Nut	M5
50	57M9776	1	Elec. Connector Housing	Bus Terminator, X1055F
50	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
50	57M9837	1	Elec. Connector Accessory	-
50	57M11134	1	Elec. Connector Housing	-
