Открытый узел

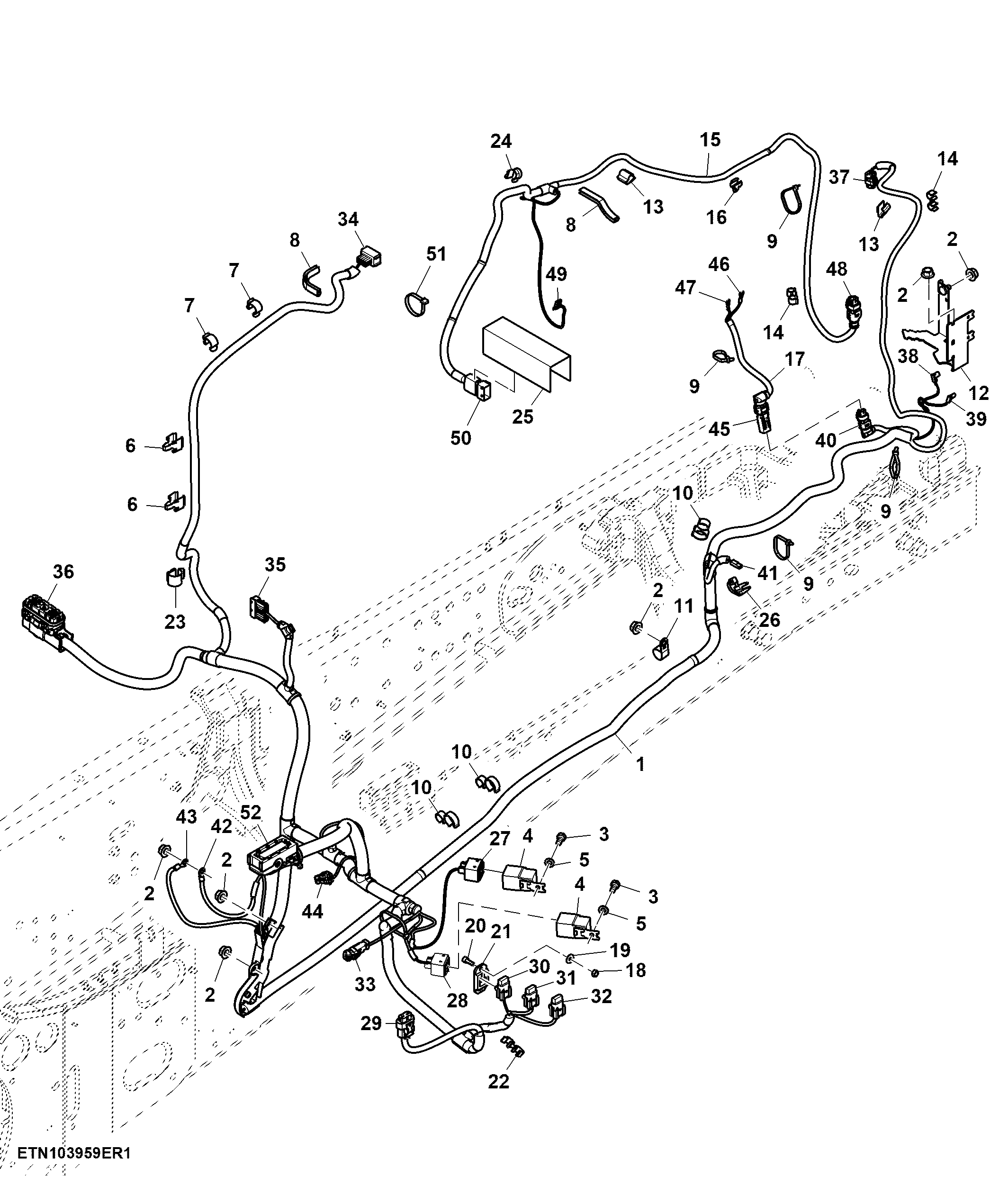

Wiring Harness, Front Chassis, W/O Front Controller, W/O Front PTO

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL222552	1	Wiring Harness	-
1	AL218356	1	Wiring Harness	-
2	14M7298	6	Flange Nut	M8
3	19M6614	2	Cap Screw	M6 X 12
4	AL156697	2	Relay	-
5	24M7054	2	Washer	6.400 X 12 X 1.600 mm
6	L153768	2	Clip	-
7	L169020	2	Clip	-
8	L152663	2	Weatherstrip	LGTH = 90 mm
9	R44302	13	Tie Band	-
10	AL159725	3	Clamp	-
11	57M9856	1	Clamp	-
12	L211112	1	Bracket	-
13	L102323	4	Clamp	-
14	L156556	3	Clamp	-
15	AL203608	1	Wiring Harness	-
16	L156248	2	Clamp	-
17	AL215069	1	Wiring Harness	-
18	14M7139	2	Nut	M4
19	24M7146	2	Washer	4.300 X 12 X 1 mm
20	19M8078	2	Cap Screw	M4 X 16
21	57M8093	1	Fuse Holder	-
22	L206271	1	Clamp	-
23	L110534	1	Clip	-
24	L173956	1	Clamp	-
25	L215887	1	Heat Shield	-
26	L206645	1	Tie Band	-
27	57M8237	2	Elec. Connector Seal	Cavity 1, 2
27	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
27	57M8233	1	Electrical Connector Assy	Starter Relay 1, K002
28	57M8233	1	Electrical Connector Assy	Starter Relay 2, K003
28	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
28	57M8237	2	Elec. Connector Seal	Cavity 1, 2
29	57M11279	1	Elec. Connector Housing	Connector of Connection for F01PLB Fuses, X547F-1
29	57M11234	1	Elec. Connector Terminal	Cavity A
29	57M11236	1	Elec. Connector Seal	Cavity A
30	57M12075	1	Elec. Connector Housing	Fuse, F027
30	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
31	57M8435	1	Fuse Holder	Fuse, F028
31	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
32	57M12075	1	Elec. Connector Housing	Fuse, F027
32	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
33	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1316M
33	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
33	57M11134	1	Elec. Connector Housing	-
34	57M8071	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W101, X1233F
34	57M8081	1	Elec. Connector Accessory	-
34	57M9532	4	Elec. Connector Terminal	Cavity 1, 2, 3, 5
34	57M8079	5	Elec. Connector Terminal	Cavity 4, 6, 8, 9, 10
34	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 5
34	57M7399	5	Elec. Connector Seal	Cavity 4, 6, 8, 9, 10
34	57M7401	1	Elec. Connector Cavity Plug	Cavity 7
35	57M7401	9	Elec. Connector Cavity Plug	Cavity 1, 2, 8, 9, 11, 13, 14, 15, 16
35	57M7400	2	Elec. Connector Seal	Cavity 6, 7
35	57M7399	5	Elec. Connector Seal	Cavity 3, 4, 5, 10, 12
35	57M8082	1	Elec. Connector Accessory	-
35	57M8075	1	Elec. Connector Seal	-
35	57M8069	1	Elec. Connector Housing	Inline Engine, X1080M
35	57M9042	1	Elec. Connector Terminal	Cavity 7
36	RE538505	1	Elec. Connector Accessory	Engine Controller FT4, X1022F-3
36	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
36	57M10321	14	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 50
36	57M10336	38	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 45, 46, 47, 48, 49, 51, 52, 53, 54
37	57M9772	1	Elec. Connector Housing	Fuel Preheater, X079F-2
37	57M11333	1	Elec. Connector Accessory	-
37	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
38	57M7984	1	Elec. Connector Terminal	Horn, X066F-1
38	57M8024	1	Elec. Connector Terminal	Cavity A
39	57M7984	1	Elec. Connector Terminal	Horn, X066F-2
39	57M8024	1	Elec. Connector Terminal	Cavity A
40	57M9772	1	Elec. Connector Housing	Inline Fuel Pump, X575F
40	57M10155	1	Elec. Connector Accessory	-
40	57M11333	1	Elec. Connector Accessory	-
40	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
41	57M7170	1	Elec. Connector Housing	Inline Adapter Ground Cooler, X305F-1
41	57M7106	1	Elec. Connector Terminal	Cavity A
42	57M7411	1	Elec. Connector Terminal	Ground Connection, XGND9E
43	57M7382	1	Elec. Connector Terminal	Ground Connection, XGND9F
44	57M7259	2	Elec. Connector Seal	Cavity E, F
44	57M9215	2	Elec. Connector Seal	Cavity C, D
44	57M9214	2	Elec. Connector Seal	Cavity A, B
44	57M10770	2	Elec. Connector Terminal	Cavity C, D
44	L114840	1	Cap	-
44	57M7291	1	Electrical Connector Assy	-
44	57M7260	1	Elec. Connector Housing	Inline Was Sensor, X637F-1
44	57M7494	2	Elec. Connector Terminal	Cavity A, B
45	57M9776	1	Elec. Connector Housing	Inline Engine, X575M
45	57M10603	2	Elec. Connector Terminal	-
46	57M7054	1	Elec. Connector Terminal	Fuel Pump, X804F-2
47	57M11295	1	Elec. Connector Terminal	Fuel Pump, X804F-1
48	57M9772	1	Elec. Connector Housing	Water in Fuel Sensor, X567F
48	57M9814	1	Elec. Connector Cavity Plug	-
48	57M9807	2	Elec. Connector Terminal	Cavity 1, 2
49	57M8481	1	Elec. Connector Terminal	Cooler Ground, X305F
50	57M7401	1	Elec. Connector Cavity Plug	-
50	57M7399	1	Elec. Connector Seal	Cavity 10
50	57M7400	2	Elec. Connector Seal	Cavity 3, 4
50	57M8077	2	Elec. Connector Terminal	Cavity 3, 4
50	57M8074	1	Elec. Connector Terminal	-
50	57M8080	1	Elec. Connector Accessory	-
50	57M8068	1	Elec. Connector Housing	Interface Ingine, X1079M
51	H77698	1	Tie Band	-
52	57M8730	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 and W201 or W202, X782F
52	57M9161	16	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 11, 14, 16, 19, 20, 25, 27, 40, 41, 45, 46
52	57M8585	2	Elec. Connector Terminal	Cavity 58, 59
52	57M8584	1	Elec. Connector Terminal	Cavity 60
52	57M8241	9	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 16, 19, 20, 25
52	57M7402	7	Elec. Connector Cable Seal	Cavity 11, 14, 27, 40, 41, 45, 46
52	57M7399	2	Elec. Connector Seal	Cavity 58, 59
52	57M7400	1	Elec. Connector Seal	Cavity 60
52	57M7403	40	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 6, 12, 13, 15, 17, 18, 21, 22, 23, 24, 26, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 42, 43, 44, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56
52	57M7401	3	Elec. Connector Cavity Plug	Cavity 57, 61, 62
52	57M8738	1	Elec. Connector Accessory	-

Wiring Harness, Front Chassis, W/O Front Controller, W/O Front PTO

Нет текстового описания
