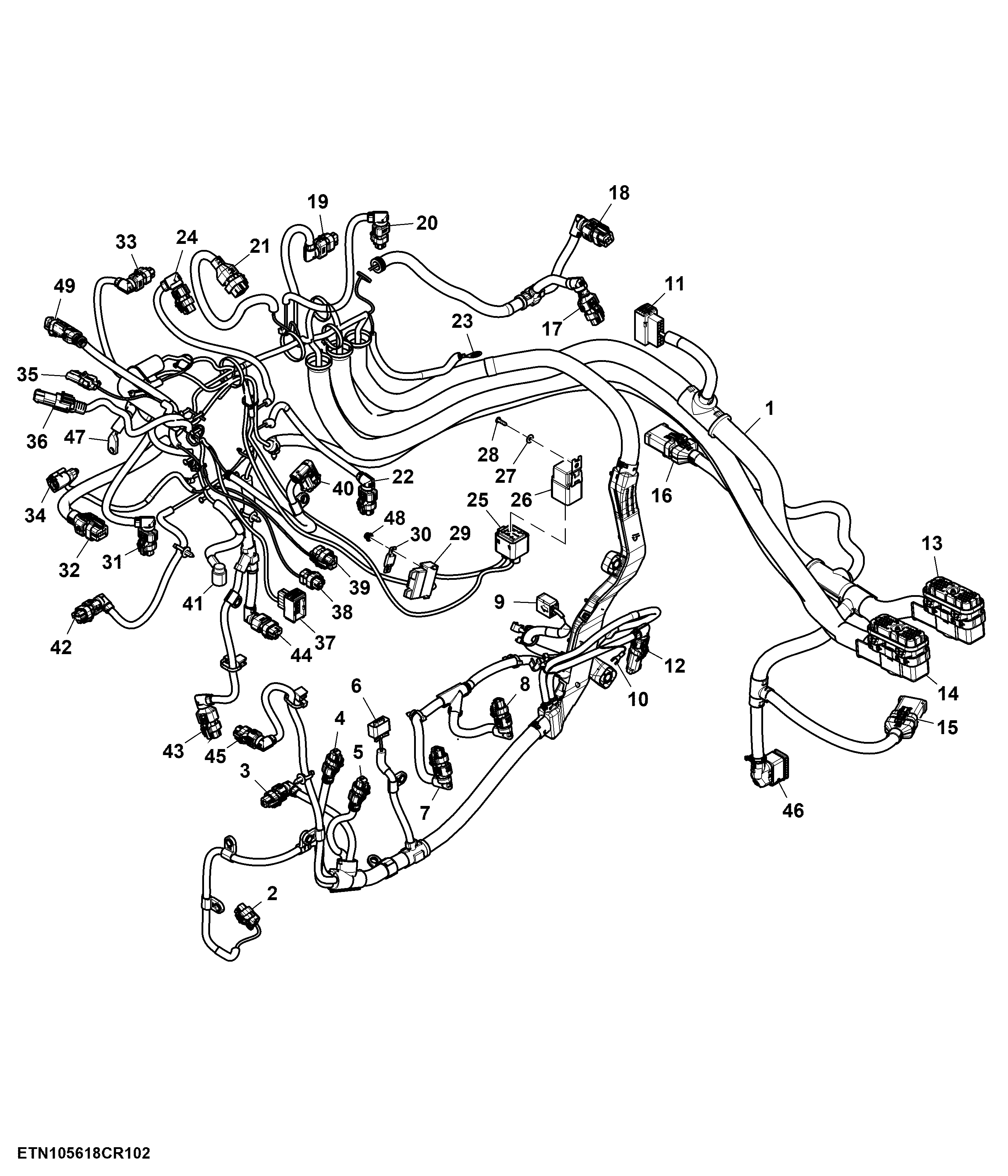

Wiring Harness, Engine (2/2) ( - 866040)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL219010	1	Wiring Harness	-
2	57M9775	1	Elec. Connector Housing	Crankshaft Speed Sensor, X681F
2	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
3	57M9775	1	Elec. Connector Housing	Camshaft Speed Sensor, X682F
3	57M10155	1	Elec. Connector Accessory	-
3	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
4	57M9772	1	Elec. Connector Housing	Control Valve 1 for Fuel Pressure, X700F-2
4	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
4	57M9837	1	Elec. Connector Accessory	-
5	57M9772	1	Elec. Connector Housing	Control Valve 2 for Fuel Pressure, X703F-2
5	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
5	57M9837	1	Elec. Connector Accessory	-
6	57M11251	3	Elec. Connector Seal	Cavity 1, 2, 3
6	57M11262	3	Elec. Connector Terminal	Cavity 1, 2, 3
6	57M11246	1	Elec. Connector Housing	Sensor for Fuel Rail Pressure, X671F
7	57M9780	1	Elec. Connector Housing	Pressure Sensor for Low-Pressure Fuel, X668F-2
7	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
7	57M10158	1	Elec. Connector Accessory	-
8	57M9774	1	Elec. Connector Housing	Fuel Temperature Sensor, X677F-2
8	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
8	57M10157	1	Elec. Connector Accessory	-
9	57M11238	1	Elec. Connector Housing	Relief Valve for Fuel Rail Pressure, X704F
9	57M11251	2	Elec. Connector Seal	Cavity 1, 2
9	57M11258	2	Elec. Connector Terminal	Cavity 1, 2
10	57M7054	1	Elec. Connector Terminal	Starter Motor, M1-50F
11	57M8072	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W511, X1080F
11	57M8079	4	Elec. Connector Terminal	Cavity 3, 4, 5, 10
11	57M9532	4	Elec. Connector Terminal	Cavity 6, 7, 8, 11
11	57M7399	4	Elec. Connector Seal	Cavity 3, 4, 5, 10
11	57M7400	4	Elec. Connector Seal	Cavity 6, 7, 8, 11
11	57M7401	8	Elec. Connector Cavity Plug	Cavity 1, 2, 9, 12, 13, 14, 15, 16
11	57M8083	1	Elec. Connector Accessory	-
12	57M9772	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W522, X575F
12	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
12	57M10155	1	Elec. Connector Accessory	-
12	57M11333	1	Elec. Connector Accessory	-
13	R528122	1	Elec. Connector Accessory	-
13	57M10336	12	Elec. Connector Cavity Plug	Cavity 2, 3, 4, 7, 8, 23, 26, 33, 34, 43, 45, 48
13	57M10321	39	Elec. Connector Terminal	Cavity 1, 5, 6, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 25, 27, 28, 29, 30, 31, 32, 36, 37, 38, 39, 40, 41, 42, 46, 47, 49, 51, 52, 53, 54
13	RE538504	1	Elec. Connector Accessory	Engine Control Unit, X021F-2
13	57M9808	3	Elec. Connector Terminal	Cavity 35, 44, 50
14	RE538503	1	Elec. Connector Accessory	Engine Control Unit, X021F-1
14	57M9808	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 13, 33, 43, 44, 45, 46
14	57M10321	40	Elec. Connector Terminal	Cavity 5, 6, 7, 8, 9, 10, 11, 12, 14, 15, 16, 17, 18, 19, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 34, 35, 36, 37, 38, 39, 41, 42, 48, 49, 50, 51, 52, 54
14	57M10336	4	Elec. Connector Cavity Plug	Cavity 20, 40, 47, 53
14	R528122	1	Elec. Connector Accessory	-
15	57M9802	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W542, X1253F
15	57M10631	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
15	57M10336	1	Elec. Connector Cavity Plug	Cavity 12
15	57M11338	1	Elec. Connector Accessory	-
15	57M9844	1	Elec. Connector Accessory	-
16	57M11338	1	Elec. Connector Accessory	-
16	57M9844	1	Elec. Connector Accessory	-
16	57M10336	1	Elec. Connector Cavity Plug	Cavity 8
16	57M10631	8	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10
16	57M9809	1	Elec. Connector Terminal	Cavity 1
16	57M9800	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W531, X1053F
16	57M9808	2	Elec. Connector Terminal	Cavity 11, 12
17	57M9782	1	Elec. Connector Housing	Exhaust Manifold Pressure Sensor, X664F-2
17	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
17	57M9850	1	Elec. Connector Accessory	-
18	57M9786	1	Elec. Connector Housing	Actuator for EGR Valve, X705F-2
18	57M10321	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
18	57M10336	1	Elec. Connector Cavity Plug	Cavity 5
18	57M10230	1	Elec. Connector Accessory	-
19	57M9780	1	Elec. Connector Housing	EGR Flow Sensor, X665F-2
19	57M10156	1	Elec. Connector Accessory	-
19	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
20	57M9774	1	Elec. Connector Housing	EGR Temperature Sensor, X674F
20	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
20	57M10155	1	Elec. Connector Accessory	-
21	57M9786	1	Elec. Connector Housing	Air Throttle Actuator, X706F
21	57M10321	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
21	57M10336	1	Elec. Connector Cavity Plug	Cavity 5
21	57M9841	1	Elec. Connector Accessory	-
22	57M10156	1	Elec. Connector Accessory	-
22	57M9782	1	Elec. Connector Housing	Sensor for Engine Oil Pressure, X663F-1
22	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
23	57M7111	1	Elec. Connector Terminal	Ground Engine Controller, XGND744
24	57M9773	1	Elec. Connector Housing	Sensor for Manifold Air Temperature, X673F
24	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
24	57M10155	1	Elec. Connector Accessory	-
25	57M8233	1	Electrical Connector Assy	Heating Element for Electrical Starting Aid, K046
25	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
25	57M10210	2	Elec. Connector Terminal	Cavity 3, 5
25	57M8237	2	Elec. Connector Seal	Cavity 1, 2
26	AL156697	1	Relay	70 A
27	24M7146	1	Washer	4.300 X 12 X 1 mm
28	37M7179	1	Screw	-
29	57M10662	1	Elec. Connector Accessory	Fuse for Electrical Starting Aid, F030
29	57M7855	2	Elec. Connector Terminal	Cavity 1, 2
30	57M8048	1	Fuse	70 A
31	57M10156	1	Elec. Connector Accessory	-
31	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
31	57M9781	1	Elec. Connector Housing	Manifold Air Pressure Sensor, X666F
32	57M9792	1	Elec. Connector Housing	Injection Valves for 6-Cylinder Engines, X698F
32	57M9808	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8
32	57M9843	1	Elec. Connector Accessory	-
33	57M9773	1	Elec. Connector Housing	Sensor for Outlet Temperature of Charge Air Cooler, X672F
33	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
33	57M10155	1	Elec. Connector Accessory	-
34	57M11537	1	Elec. Connector Housing	Battery Cut-Off Relay, X325F
34	57M7981	1	Elec. Connector Seal	Cavity 1
34	57M7983	1	Electrical Connector Assy	Cavity 2
35	57M7254	1	Elec. Connector Housing	Compressor Clutch for Air Trailer Brakes, X699F
35	57M10770	2	Elec. Connector Terminal	Cavity A, B
35	57M9215	2	Elec. Connector Seal	Cavity A, B
35	57M7289	1	Elec.Connect Locking Device	-
35	57M11253	1	Elec. Connector Housing	-
36	57M7304	1	Elec. Connector Housing	-
36	R78064	2	Elec. Connector Cavity Plug	-
36	57M10477	1	Elec. Connector Accessory	-
36	57M9219	2	Elec. Connector Seal	Cavity A, B
36	57M7491	2	Elec. Connector Terminal	Cavity A, B
36	57M7309	1	Elec. Connector Housing	A/C Compressor Clutch, X130F
36	57M7306	1	Elec.Connect Locking Device	-
37	57M8071	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W521, X1079F
37	57M9532	6	Elec. Connector Terminal	Cavity 3, 4, 7, 8, 9, 10
37	57M7400	6	Elec. Connector Seal	Cavity 3, 4, 7, 8, 9, 10
37	57M8081	1	Elec. Connector Accessory	-
37	57M7401	4	Elec. Connector Cavity Plug	Cavity 1, 2, 5, 6
38	57M9775	1	Elec. Connector Housing	Turbocharger Speed Sensor, X680F
38	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
39	57M9817	1	Elec. Connector Housing	VGT Actuator, X707F
39	57M9808	2	Elec. Connector Terminal	Cavity 3, 4
39	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
40	57M9144	1	Elec. Connector Housing	Intake Air Sensor, X684F
40	57M9831	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
40	57M9149	4	Elec. Connector Seal	Cavity 1, 2, 3, 4
41	L205772	1	Electrical Connector Assy	Glow Plug, X630F
42	57M9781	1	Elec. Connector Housing	Coolant Pressure Sensor, X669F
42	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
42	57M10156	1	Elec. Connector Accessory	-
43	57M9817	1	Elec. Connector Housing	Sensor for Engine Oil Level, X687F-2
43	57M9808	2	Elec. Connector Terminal	Cavity 2, 4
43	57M10321	2	Elec. Connector Terminal	Cavity 1, 3
44	57M9783	1	Elec. Connector Housing	Crankcase Pressure Sensor, X667F-2
44	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
44	57M10158	1	Elec. Connector Accessory	-
45	57M9773	1	Elec. Connector Housing	Coolant Temperature Sensor, X675F-2
45	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
45	57M10155	1	Elec. Connector Accessory	-
46	57M8241	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
46	57M11439	1	Elec. Connector Accessory	-
46	57M13072	1	Elec. Connector Accessory	-
46	57M7403	2	Elec. Connector Cavity Plug	Cavity 1, 7
46	57M11248	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
46	57M10958	1	Elec. Connector Housing	SCR Supply Module, X685F-2
47	57M7924	1	Elec. Connector Terminal	Glow Plug Power Supply, X1136
48	14M7568	2	Lock Nut	M5
49	57M9776	1	Elec. Connector Housing	Bus Terminator, X1055F
49	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
49	57M9837	1	Elec. Connector Accessory	-
49	57M11134	1	Elec. Connector Housing	-
