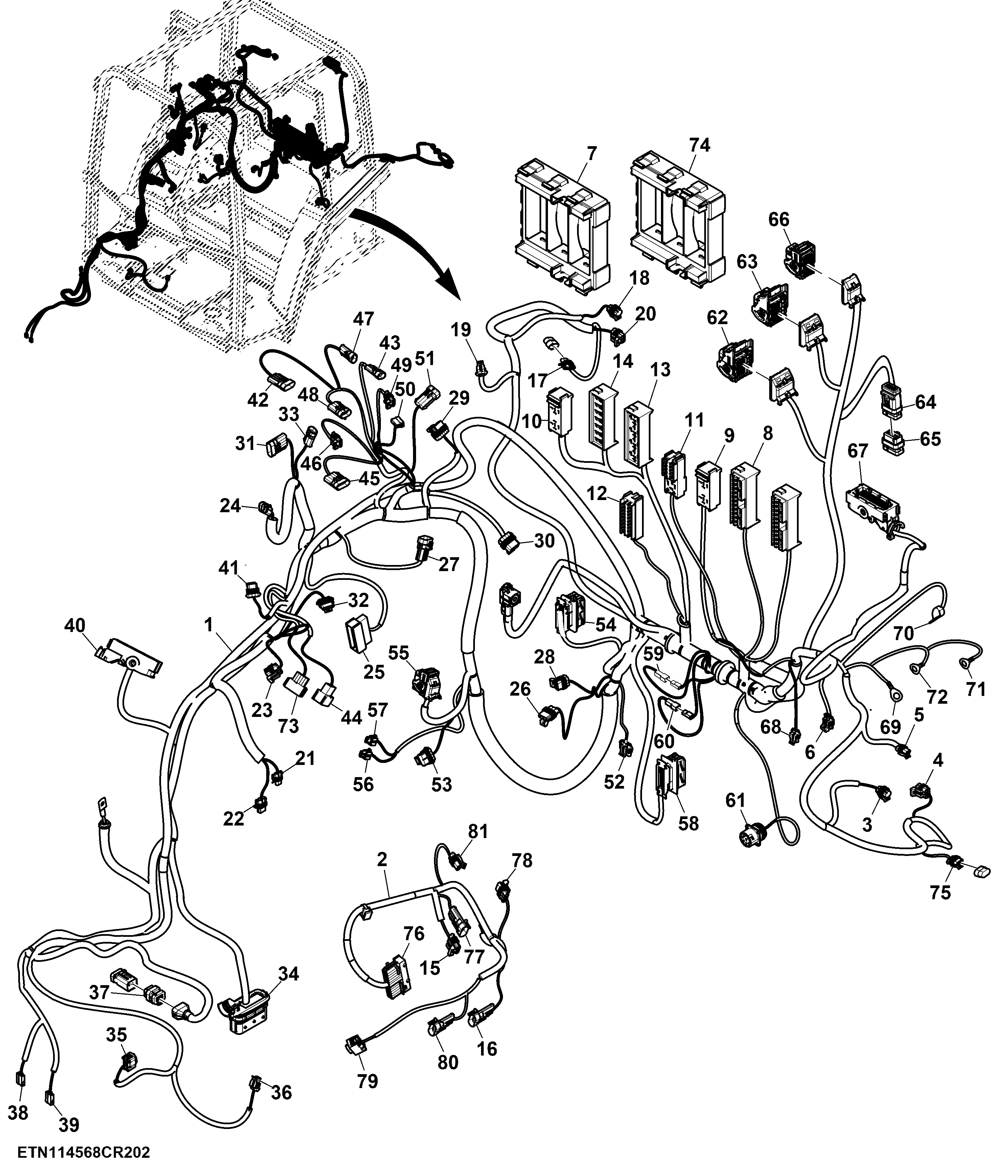

Wiring Harness, Cab, CommandQuad™(2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL222549	1	Wiring Harness	-
2	AL221616	1	Wiring Harness	-
3	57M7494	1	Elec. Connector Terminal	Cavity A
3	57M7349	1	Elec. Connector Accessory	Left Tail Light, X107F, E013
3	57M7347	1	Elec. Connector Accessory	-
3	57M9215	3	Elec. Connector Seal	Cavity B, C, D
3	R104846	3	Elec. Connector Terminal	Cavity B, C, D
3	57M9214	1	Elec. Connector Seal	Cavity A
4	57M7494	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
4	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
4	57M7291	1	Electrical Connector Assy	-
4	57M7260	1	Elec. Connector Housing	Left Remote Control Switch for Rear Hitch, X035F
5	57M7254	1	Elec. Connector Housing	Worklights on Rear Fender, X113F-1
5	R104846	2	Elec. Connector Terminal	-
5	57M9215	2	Elec. Connector Seal	-
5	57M7289	1	Elec.Connect Locking Device	-
6	57M7255	1	Elec. Connector Housing	X689F
6	R104846	3	Elec. Connector Terminal	Cavity A, B, C
6	57M9215	3	Elec. Connector Seal	Cavity A, B, C
6	57M9702	1	Elec. Connector Accessory	-
7	L171801	1	Elec. Connector Housing	Load Center, LCS-F06
7	57M8057	2	Elec. Connector Terminal	Cavity P7_2, P8_2
7	57M8058	2	Elec. Connector Terminal	Cavity P6_2, P7_1
7	57M8059	2	Elec. Connector Terminal	Cavity P6_1, P8_1
8	57M9400	1	Elec. Connector Housing	Load Center, LCS-F06
8	57M7439	7	Elec. Connector Terminal	Cavity A_30, A_87, B_87, C_30, C_87, D_30, D_87
8	57M9050	8	Elec. Connector Terminal	Cavity A_85, A_86, B_85, B_86, C_85, C_86, D_85, D_86
8	57M9056	6	Elec. Connector Terminal	Cavity A_1, A_2, B_2, D_1, D_2, F_2
8	57M7440	1	Elec. Connector Terminal	Cavity B_30
8	57M9057	6	Elec. Connector Terminal	Cavity B_1, C_1, C_2, E_1, E_2, F_1
9	57M12292	1	Elec. Connector Housing	Load Center, LCS-K07
10	57M12292	1	Elec. Connector Housing	Load Center, LCS-K05
11	57M9056	8	Elec. Connector Terminal	Cavity 1_85, 02_2, 1_86, 01_2, 03_2, 04_2, 05_2, 08_2
11	57M9057	5	Elec. Connector Terminal	Cavity 06_1, 06_2, 07_2, 09_2, 10_2
11	57M9672	3	Elec. Connector Terminal	Cavity 03_1, 07_1, 09_1
11	57M9052	2	Elec. Connector Terminal	Cavity 1_30, 1_87
11	57M9049	1	Elec. Connector Housing	Load Center, LCS-F04
12	57M9082	1	Elec. Connector Housing	Load Center, LCS-F03
12	57M9057	8	Elec. Connector Terminal	Cavity 01_2, 04_2, 05_2, 08_2, 09_2, 13_2, 14_1, 17_1
12	57M9672	6	Elec. Connector Terminal	Cavity 02_1, 06_1, 09_1, 12_1, 15_1, 19_1
12	57M9056	12	Elec. Connector Terminal	Cavity 02_2, 03_2, 06_2, 11_2, 12_2, 14_2, 15_2, 16_2, 17_2, 18_2, 19_2, 20_2
13	57M8050	1	Elec. Connector Housing	Load Center, LCS-F04
13	57M8179	12	Elec. Connector Terminal	Cavity 1_30, 1_87, 2_30, 2_87, 3_30, 3_87, 4_30, 4_87, 5_30, 5_87, 6_30, 6_87
13	57M8178	10	Elec. Connector Terminal	Cavity 1_85, 1_86, 2_85, 2_86, 3-85, 3_86, 4-85, 4_86, 5_85, 5_86
14	57M8053	1	Elec. Connector Housing	Load Center, LCS-F04
14	57M7103	1	Elec. Connector Terminal	Cavity 4_86
14	57M8054	7	Elec. Connector Terminal	Cavity 1_86, 1_85, 2_86, 2_85, 3_86, 3_85, 4_87
14	57M8055	4	Elec. Connector Terminal	Cavity 1_30, 1_87, 2_30, 2_87
15	57M7255	1	Elec. Connector Housing	Rear Hitch Sensitivity Potentiometer, X014F-2
15	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
15	57M9214	3	Elec. Connector Seal	Cavity A, B, C
15	57M7290	1	Elec. Connector Accessory	-
16	57M7257	1	Elec. Connector Housing	Rear PTO Switch, X125M
16	L210722	1	Clip	-
16	57M7290	1	Elec. Connector Accessory	-
16	57M9214	2	Elec. Connector Seal	Cavity B, C
16	57M7495	2	Elec. Connector Terminal	Cavity B, C
16	57M7252	1	Elec. Connector Terminal	Cavity A
16	57M9215	1	Elec. Connector Seal	Cavity A
17	57M7687	1	Elec. Connector Housing	Right Remote Control Switch for Rear PTO, X623F
17	57M9214	3	Elec. Connector Seal	Cavity A, B, C
17	57M9702	1	Elec. Connector Accessory	-
17	57M7918	1	Elec. Connector Housing	-
18	57M9215	3	Elec. Connector Seal	Cavity B, C, D
18	57M7347	1	Elec. Connector Accessory	-
18	57M9214	1	Elec. Connector Seal	Cavity A
18	R104846	3	Elec. Connector Terminal	Cavity B, C, D
18	57M7494	1	Elec. Connector Terminal	Cavity A
18	57M7349	1	Elec. Connector Accessory	Right Tail Light, X106F
19	57M7254	1	Elec. Connector Housing	Worklight on Rear Fender RH, X113F-2
19	R104846	2	Elec. Connector Terminal	Cavity A, B
19	57M9215	2	Elec. Connector Seal	Cavity A, B
19	57M7289	1	Elec.Connect Locking Device	-
20	57M7260	1	Elec. Connector Housing	Right Remote Control Switch for Rear Hitch, X034F
20	57M7494	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
20	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
20	57M7291	1	Electrical Connector Assy	-
21	57M7254	1	Elec. Connector Housing	Inline Backup Alarm, X037F
21	57M7289	1	Elec.Connect Locking Device	-
21	57M9541	2	Elec. Connector Terminal	Cavity A, B
21	57M7258	2	Elec. Connector Seal	Cavity A, B
22	57M7309	1	Elec. Connector Housing	Connector for Accessories, X037F-3
22	57M7491	2	Elec. Connector Terminal	Cavity A, B
22	57M9219	2	Elec. Connector Seal	Cavity A, B
22	57M7306	1	Elec.Connect Locking Device	-
23	57M7259	1	Elec. Connector Seal	Cavity H
23	57M7283	1	Elec.Connect Locking Device	-
23	57M9214	7	Elec. Connector Seal	Cavity A, B, C, D, E, F, G
23	57M7494	7	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G
23	57M7261	1	Elec. Connector Housing	Park Lock Interlock, X033F
24	57M7985	1	Electrical Connector Assy	iTEC™ Basic Switch, X242M
24	57M9546	1	Elec. Connector Terminal	Cavity A
24	57M7252	1	Elec. Connector Terminal	Cavity B
24	57M9214	1	Elec. Connector Seal	Cavity A
24	57M9215	1	Elec. Connector Seal	Cavity B
24	57M9712	1	Elec. Connector Accessory	-
25	57M7401	6	Elec. Connector Cavity Plug	Cavity 16, 20, 21, 22, 23, 24
25	57M8084	1	Elec. Connector Accessory	-
25	57M7400	18	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 18, 19
25	57M8073	1	Elec. Connector Housing	X010F-1
25	57M9532	18	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 18, 19
26	57M7491	2	Elec. Connector Terminal	CAvity A, B
26	57M7299	1	Elec. Connector Terminal	Cavity C
26	57M9218	2	Elec. Connector Seal	CAvity A, B
26	57M9217	1	Elec. Connector Seal	Cavity C
26	57M7274	1	Elec. Connector Accessory	-
26	57M7280	1	Elec. Connector Housing	Inline Adapter Power Strip, X239F
27	57M7283	1	Elec.Connect Locking Device	-
27	57M9214	8	Elec. Connector Seal	Cavity A, B, C, D, E, F, G, H
27	57M9546	8	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H
27	57M7264	1	Elec. Connector Housing	Rockshaft Potentiometer, X014M-1
28	57M7260	1	Elec. Connector Housing	Inline Signal Socket, X880F
28	57M7494	3	Elec. Connector Terminal	Cavity A, B, D
28	R104846	3	Elec. Connector Terminal	Cavity C, E, F
28	57M9214	3	Elec. Connector Seal	Cavity A, B, D
28	57M9215	3	Elec. Connector Seal	Cavity C, E, F
28	57M7291	1	Electrical Connector Assy	-
29	57M7259	1	Elec. Connector Seal	Cavity J
29	57M7281	1	Elec.Connect Locking Device	-
29	57M9215	3	Elec. Connector Seal	Cavity F, H, K
29	R104846	3	Elec. Connector Terminal	Cavity F, H, K
29	57M7494	6	Elec. Connector Terminal	Cavity A, B, C, D, E, G
29	57M7262	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W201 and W421, X535F
29	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, G
30	57M7696	1	Elec. Connector Housing	Inline Blower, X577F
30	R104846	3	Elec. Connector Terminal	Cavity A, B, C
30	57M7581	2	Elec. Connector Terminal	Cavity E, G
30	57M9541	1	Elec. Connector Terminal	Cavity F
30	57M9215	3	Elec. Connector Seal	Cavity A, B, C
30	57M9563	2	Elec. Connector Cable Seal	Cavity E, G
30	57M7258	1	Elec. Connector Seal	Cavity F
30	57M7698	1	Elec. Connector Terminal	-
30	57M7259	1	Elec. Connector Seal	Cavity C
31	57M7244	1	Elec. Connector Housing	Cruise Control Potentiometer, X236M
31	57M7259	1	Elec. Connector Seal	Cavity B
31	57M7318	1	Elec. Connector Accessory	-
31	57M9214	3	Elec. Connector Seal	Cavity A, C, D
31	57M9546	3	Elec. Connector Terminal	Cavity A, C, D
32	57M8416	1	Elec. Connector Housing	Switch for Gear Selector, X003F-1
32	R104846	3	Elec. Connector Terminal	Cavity A, B, C
32	57M9215	3	Elec. Connector Seal	Cavity A, B, C
32	57M7469	1	Electrical Connector Assy	-
32	57M7259	1	Elec. Connector Seal	Cavity D
33	57M9712	1	Elec. Connector Accessory	-
33	57M9215	1	Elec. Connector Seal	Cavity B
33	57M9214	1	Elec. Connector Seal	Cavity A
33	57M9546	1	Elec. Connector Terminal	Cavity A
33	57M7256	1	Elec. Connector Housing	Switch for Start-Up Gear Programming, X031M
33	57M7252	1	Elec. Connector Terminal	Cavity B
34	57M7401	1	Elec. Connector Cavity Plug	Cavity 57
34	57M7403	29	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 6, 12, 13, 15, 17, 18, 22, 23, 26, 28, 29, 33, 34, 35, 36, 37, 38, 39, 42, 43, 44, 49, 54, 55, 56
34	57M7399	3	Elec. Connector Seal	Cavity 59, 60, 62
34	57M7400	2	Elec. Connector Seal	Cavity 58, 61
34	57M7402	12	Elec. Connector Cable Seal	Cavity 11, 14, 24, 27, 30, 40, 41, 45, 46, 50, 51, 52
34	57M8241	15	Elec. Connector Terminal	Cavity 4, 7, 8 ,9, 10, 16, 19, 20, 21, 25, 31, 32, 47, 48, 53
34	57M9042	2	Elec. Connector Terminal	Cavity 58, 61
34	57M9041	27	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 11, 14, 16, 19, 20, 21, 24, 25, 27, 30, 31, 32, 40, 41, 45, 46, 47, 48, 50, 51, 52, 53
34	57M8731	1	Elec. Connector Housing	Inline Vehicle, X782M
35	57M7953	1	Electrical Connector Assy	Accelerator Pedal Potentiometer, X371F-2
35	57M9180	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
35	57M7955	6	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6
36	57M7328	1	Elec. Connector Housing	Differential Lock Switch, X122F
36	R104846	1	Elec. Connector Terminal	Cavity A
36	57M7494	1	Elec. Connector Terminal	Cavity B
36	57M9215	1	Elec. Connector Seal	Cavity A
36	57M9214	1	Elec. Connector Seal	Cavity B
37	57M10336	7	Elec. Connector Cavity Plug	Cavity 7
37	57M9842	1	Elec. Connector Accessory	-
37	57M10321	5	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6
37	57M9792	1	Elec. Connector Housing	Connection Point between Harnesses W201 and W012, X1272F
37	57M9808	2	Elec. Connector Terminal	Cavity 2, 8
38	57M7065	1	Elec. Connector Housing	Washer Pump Rear, X044F
38	57M7431	1	Elec. Connector Terminal	Cavity 1
38	57M7430	1	Elec. Connector Terminal	Cavity 2
39	57M7065	1	Elec. Connector Housing	Washer Pump Front, X285F
39	57M7430	2	Elec. Connector Terminal	Cavity 1, 2
40	57M7402	19	Elec. Connector Cable Seal	Cavity 2, 3, 4, 7, 8, 10, 11, 12, 14, 15, 36, 38, 40, 41, 44, 45, 46, 47, 50
40	57M7401	1	Elec. Connector Cavity Plug	Cavity 62
40	57M7403	20	Elec. Connector Cavity Plug	Cavity 16, 18, 19, 21, 23, 24, 31, 32, 33, 34, 35, 37, 39, 42, 43, 48, 49, 52, 53, 54
40	57M7399	4	Elec. Connector Seal	Cavity 58, 59, 60, 61
40	57M7400	1	Elec. Connector Seal	Cavity 57
40	57M8241	17	Elec. Connector Terminal	Cavity 1, 5, 6, 9, 13, 17, 20, 21, 25, 26, 27, 28, 29, 30, 51, 55, 56
40	57M8585	4	Elec. Connector Terminal	Cavity 58, 59, 60, 61
40	57M8584	1	Elec. Connector Terminal	Cavity 57
40	57M9161	36	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 20, 22, 25, 26, 27, 28, 29, 30, 36, 38, 40, 41, 44, 45, 46, 47, 50, 51, 55, 56
40	57M8730	1	Elec. Connector Housing	Inline Front Support, X780F
41	57M7255	1	Elec. Connector Housing	Gear Selector Switch, X660F-2
41	57M7494	2	Elec. Connector Terminal	Cavity A, B
41	R104846	1	Elec. Connector Terminal	Cavity C
41	57M9214	2	Elec. Connector Seal	Cavity A, B
41	57M9215	1	Elec. Connector Seal	Cavity C
41	57M9702	1	Elec. Connector Accessory	-
42	57M9598	1	Elec.Connect Locking Device	-
42	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
42	57M7244	1	Elec. Connector Housing	Switch for Inner and Outer Worklights on Rear of Roof, X472M-2
42	57M9546	4	Elec. Connector Terminal	Cavity A, B, C, D
43	57M9546	2	Elec. Connector Terminal	Cavity A, B
43	57M7256	1	Elec. Connector Housing	Switch for Worklights on Rear Fender, X363M
43	57M7289	1	Elec.Connect Locking Device	-
43	57M9214	2	Elec. Connector Seal	Cavity A, B
