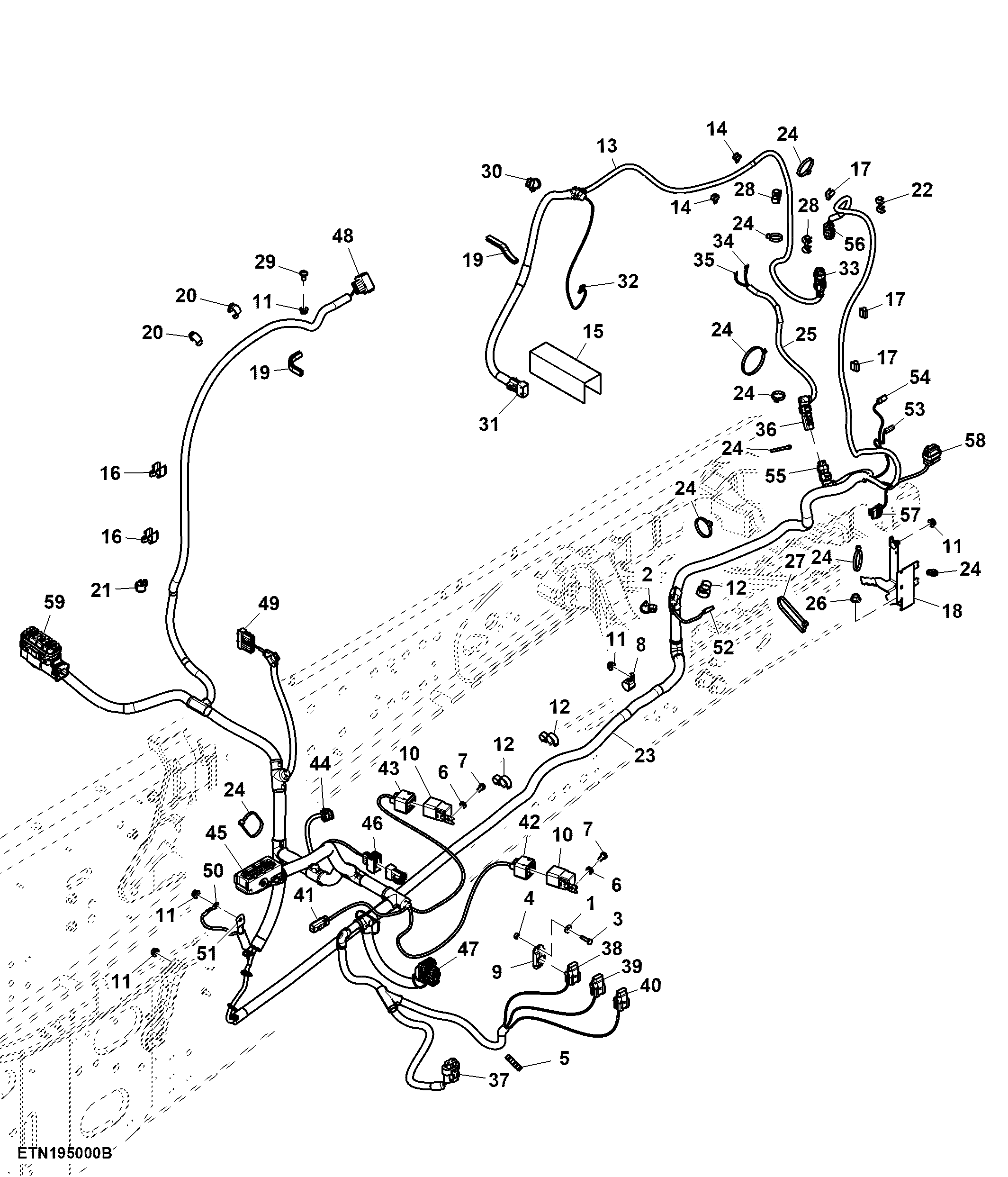

Wiring Harness, Chassis, W/ Front Controller, W/ Front PTO (924527 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7146	2	Washer	4.300 X 12 X 1 mm
2	L206645	1	Tie Band	-
3	19M8078	2	Cap Screw	M4 X 16
4	14M7139	2	Nut	M4
5	L206271	1	Clamp	-
6	24M7054	2	Washer	6.400 X 12 X 1.600 mm
7	19M6614	2	Cap Screw	M6 X 12
8	57M9856	1	Clamp	-
9	57M8093	1	Fuse Holder	-
10	AL156697	2	Relay	-
11	14M7298	6	Flange Nut	M8
12	AL159725	3	Clamp	-
13	AL203608	1	Wiring Harness	-
14	L156248	2	Clamp	-
15	L215887	1	Heat Shield	-
16	L153768	3	Clip	-
17	L102323	3	Clamp	-
18	L222276	1	Bracket	-
19	L152663	2	Weatherstrip	-
20	L169020	2	Clip	-
21	L110534	1	Clip	-
22	L156556	1	Clamp	-
23	AL226790	1	Wiring Harness	SUB FOR AL224898
24	57M12234	16	Elec. Connector Accessory	-
25	AL228059	1	Wiring Harness	-
26	14M7296	1	Flange Nut	M10
27	57M14447	1	Elec. Connector Accessory	-
28	AL173227	2	Clip	-
29	R264173	1	Bolt	-
30	L171035	1	Tie Band	-
31	57M7401	5	Elec. Connector Cavity Plug	-
31	57M7399	1	Elec. Connector Seal	Cavity 10
31	57M7400	4	Elec. Connector Seal	Cavity 3, 4
31	57M8080	1	Elec. Connector Accessory	-
31	57M8074	1	Elec. Connector Terminal	-
31	57M8068	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W501 and W521, X1079M
31	57M8077	4	Elec. Connector Terminal	Cavity 3, 4
32	57M8481	1	Elec. Connector Terminal	Radiator Ground Connection, X305F
33	57M9772	1	Elec. Connector Housing	Water in Fuel Sensor, X567F
33	57M9837	1	Elec. Connector Accessory	-
33	57M9814	1	Elec. Connector Cavity Plug	-
33	57M9807	2	Elec. Connector Terminal	Cavity 1, 2
34	57M7054	1	Elec. Connector Terminal	Fuel Pump, X804F-4
35	57M11295	1	Elec. Connector Terminal	Fuel Pump, X804F-3
36	57M9776	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W511 or W512 and W522, X575M
36	57M10155	1	Elec. Connector Accessory	-
36	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
37	57M11279	1	Elec. Connector Housing	Connection for F01PLB Fuses, X547F
37	57M11234	1	Elec. Connector Terminal	cavity A
38	57M12075	1	Elec. Connector Housing	Fuse for Engine Control Unit, F027
38	99M7065	1	Fuse	-
38	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
39	57M8435	1	Fuse Holder	Fuse for Engine Control Unit, F028
39	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
39	57M7146	1	Fuse	-
40	57M12075	1	Elec. Connector Housing	Fuse for Engine Control Unit, F029
40	99M7065	1	Fuse	-
40	57M8058	2	Elec. Connector Terminal	Cavity 1, 2
41	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1316M
41	57M11134	1	Elec. Connector Housing	-
41	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
42	57M8237	2	Elec. Connector Seal	Cavity 1, 2
42	57M8239	4	Elec. Connector Terminal	Cavity 6, 7, 8, 9
42	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
42	57M8233	1	Electrical Connector Assy	Starter Relay 2, K003
43	57M8233	1	Electrical Connector Assy	Starter Relay 1, K002
43	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
43	57M8237	2	Elec. Connector Seal	Cavity 1, 2
43	57M8239	4	Elec. Connector Terminal	Cavity 6, 7, 8, 9
44	L114840	1	Cap	-
44	57M7291	1	Electrical Connector Assy	-
44	57M7259	2	Elec. Connector Seal	Cavity E, F
44	57M7494	4	Elec. Connector Terminal	Cavity A, B, C, D
44	57M7260	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W471, X637F-1
44	57M9214	4	Elec. Connector Seal	Cavity A, B, C, D
45	57M7399	2	Elec. Connector Seal	Cavity 58, 59
45	57M8738	1	Elec. Connector Accessory	-
45	57M7401	2	Elec. Connector Cavity Plug	Cavity 57, 62
45	57M7403	29	Elec. Connector Cavity Plug	Cavity 1, 2, 3, 5, 6, 12, 13, 15, 17, 18, 22, 23, 26, 28, 29, 33, 34, 35, 36, 37, 38, 39, 42, 43, 44, 49, 54, 55, 56
45	57M7400	2	Elec. Connector Seal	Cavity 60, 61
45	57M7402	13	Elec. Connector Cable Seal	Cavity 11, 14, 24, 27, 30, 40, 41, 45, 46, 47, 50, 51, 52
45	57M8241	14	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 16, 19, 20, 21, 25, 31, 32, 48, 53
45	57M8584	2	Elec. Connector Terminal	Cavity 60, 61
45	57M8585	2	Elec. Connector Terminal	Cavity 58, 59
45	57M9161	27	Elec. Connector Terminal	Cavity 4, 7, 8, 9, 10, 11, 14, 16, 19, 20, 21, 24, 25, 27, 30, 31, 32, 40, 41, 45, 46, 47, 48, 50, 51, 52, 53
45	57M8730	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W201, X782F
46	57M7400	7	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 8, 9
46	57M8074	1	Elec. Connector Terminal	-
46	57M8081	1	Elec. Connector Accessory	-
46	57M8080	1	Elec. Connector Accessory	-
46	57M8068	1	Elec. Connector Housing	-
46	57M7401	2	Elec. Connector Cavity Plug	Cavity 7, 10
46	57M7399	1	Elec. Connector Seal	Cavity 6
46	57M8079	1	Elec. Connector Terminal	Cavity 6
46	57M9532	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 8, 9
46	57M8071	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W731, X1134F
47	57M10614	1	Elec. Connector Housing	Front Chassis Control Unit, X026F
47	57M10514	8	Elec. Connector Terminal	Cavity A1, A2, B1, C1, D1, F4, G2, H2
47	57M10330	14	Elec. Connector Terminal	Cavity A1, B2, C4, E4, F2, G3, H4, J2, J3, J4, K1, K2, K3, K4
47	57M10331	6	Elec. Connector Terminal	Cavity L1, L2, L4, M1, M2, M4
47	57M10333	18	Elec. Connector Cavity Plug	Cavity A4, B3, B4, C2, C3, D2, D3, D4, E1, E2, E3, F1, F3, G1, G4, H1, H3, J1
47	57M10334	2	Elec. Connector Cavity Plug	Cavity L3, M3
47	57M10613	1	Elec. Connector Housing	-
47	57M13590	1	Elec. Connector Accessory	-
48	57M8081	1	Elec. Connector Accessory	-
48	57M7401	1	Elec. Connector Cavity Plug	Cavity 7
48	57M7399	5	Elec. Connector Seal	Cavity 4, 6, 8, 9, 10
48	57M8079	5	Elec. Connector Terminal	Cavity 4, 6, 8, 9, 10
48	57M7400	4	Elec. Connector Seal	Cavity 1, 2, 3, 5
48	57M8071	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W102 or W101, X1233F
48	57M9532	4	Elec. Connector Terminal	Cavity 1, 2, 3, 5
49	57M8069	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W511, X1080M
49	57M9042	1	Elec. Connector Terminal	Cavity 7
49	57M7399	5	Elec. Connector Seal	Cavity 3, 4, 5, 10, 12
49	57M7400	2	Elec. Connector Seal	Cavity 6, 7
49	57M7401	9	Elec. Connector Cavity Plug	Cavity 1, 2, 8, 9, 11, 13, 14, 15, 16
49	57M8075	1	Elec. Connector Seal	-
49	57M8082	1	Elec. Connector Accessory	-
50	57M7382	1	Elec. Connector Terminal	Ground Point, XGND9F
51	57M7411	1	Elec. Connector Terminal	Ground Point, XGND9E
52	57M7170	1	Elec. Connector Housing	Radiator Ground Connection, X305F-1
52	57M7106	1	Elec. Connector Terminal	Cavity A
53	57M7214	1	Elec. Connector Housing	Horn, X066F-2
53	57M7430	1	Elec. Connector Terminal	Cavity 1
54	57M7214	1	Elec. Connector Housing	Horn, X066F-1
54	57M7430	1	Elec. Connector Terminal	Cavity 1
55	57M11333	1	Elec. Connector Accessory	-
55	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
55	57M9772	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W522, X575F
55	57M10155	1	Elec. Connector Accessory	-
56	57M9772	1	Elec. Connector Housing	Heating Element of Fuel Preheater, X079F-2
56	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
56	57M11333	1	Elec. Connector Accessory	-
57	57M8416	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W711, X002F
57	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
57	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
57	57M7469	1	Electrical Connector Assy	-
57	L116272	1	Elec. Connector Accessory	-
58	57M9800	1	Elec. Connector Housing	Connection Point between Harnesses W511 and W701, X205F
58	57M11338	1	Elec. Connector Accessory	-
58	57M10336	2	Elec. Connector Cavity Plug	Cavity 7, 10
58	57M9809	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 11, 12
59	RE538505	1	Elec. Connector Accessory	Engine Control Unit, X021F-3
59	57M9808	2	Elec. Connector Terminal	Cavity 1, 2
59	57M10321	14	Elec. Connector Terminal	Cavity 7, 11, 12, 13, 14, 16, 17, 23, 24, 27, 32, 43, 44, 50
59	57M10336	38	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 8, 9, 10, 15, 18, 19, 20, 21, 22, 25, 26, 28, 29, 30, 31, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 45, 46, 47, 48, 49, 51, 52, 53, 54
59	57M13590	2	Elec. Connector Accessory	-
59	R528122	1	Elec. Connector Accessory	-

Wiring Harness, Chassis, W/ Front Controller, W/ Front PTO (924527 - )
