Mechanical Midstack SCV, W/ 3 Functions, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BL15635	1	Valve Kit	ORDER BL16474
2	AL231372	1	Manifold	Manifold Midstack SCV
3	AL231108	4	Seal Kit	-
4	15M7076	1	Drain Plug	-
5	51M7041	2	O-Ring	11.300 X 2.200 mm
6	AL158828	1	Fitting Plug	-
7	AL206041	1	Selective Control Valve	Selective Control Valve, ICV, 205 Series, ORDER AL231704
7	AL231704	1	Selective Control Valve	Selective Control Valve, ICV, 205 Series
8	AL206040	1	Selective Control Valve	Selective Control Valve, ICV, 105 Series, ORDER AL231705
8	AL231705	1	Selective Control Valve	Selective Control Valve, ICV, 105 Series
9	AL226326	1	Selective Control Valve	Selective Control Valve, ICV, Auxiliary, ORDER AL231706
9	AL231706	1	Selective Control Valve	Selective Control Valve, ICV, Auxiliary
9	AL202035	1	Selective Control Valve	Selective Control Valve, ICV, Auxiliary, ORDER AL231706
10	AL214529	2	Spool Kit	SUB FOR APPL AL172967
11	AL172974	5	Fitting Plug	-
12	AL172966	2	Flange Kit	-
13	AL216673	1	Detent Kit	-
14	AL203292	4	Seal Kit	-
15	L203820	3	Compression Spring	-
16	AL231130	3	Valve Kit	Load Sensing Shuttle, SUB FOR APPL AL205619
17	AL172968	1	Cap	-
18	L206084	1	Cover	-
19	L169114	3	Rod	-
20	14M7273	3	Nut	M8
21	AL226699	2	Solenoid Kit	Control Valve
22	AZ65592	2	Control Valve	-
23	AL226700	2	Solenoid	-
24	L78975	6	Fitting Plug	-
25	51M7045	7	O-Ring	19.300 X 2.200 mm
26	AL231435	3	Seal Kit	-
27	38H5002	1	Adapter Fitting	-
28	38H5121	1	Adapter Fitting	-
29	AL168499	1	Fitting	-
30	T77613	1	O-Ring	-
31	T77858	1	O-Ring	-
32	51M7051	1	O-Ring	26.600 X 2.900 mm
33	51M7098	1	O-Ring	22 X 2 mm
34	51M7099	1	O-Ring	25 X 2.200 mm
35	L157513	1	Clamp	-

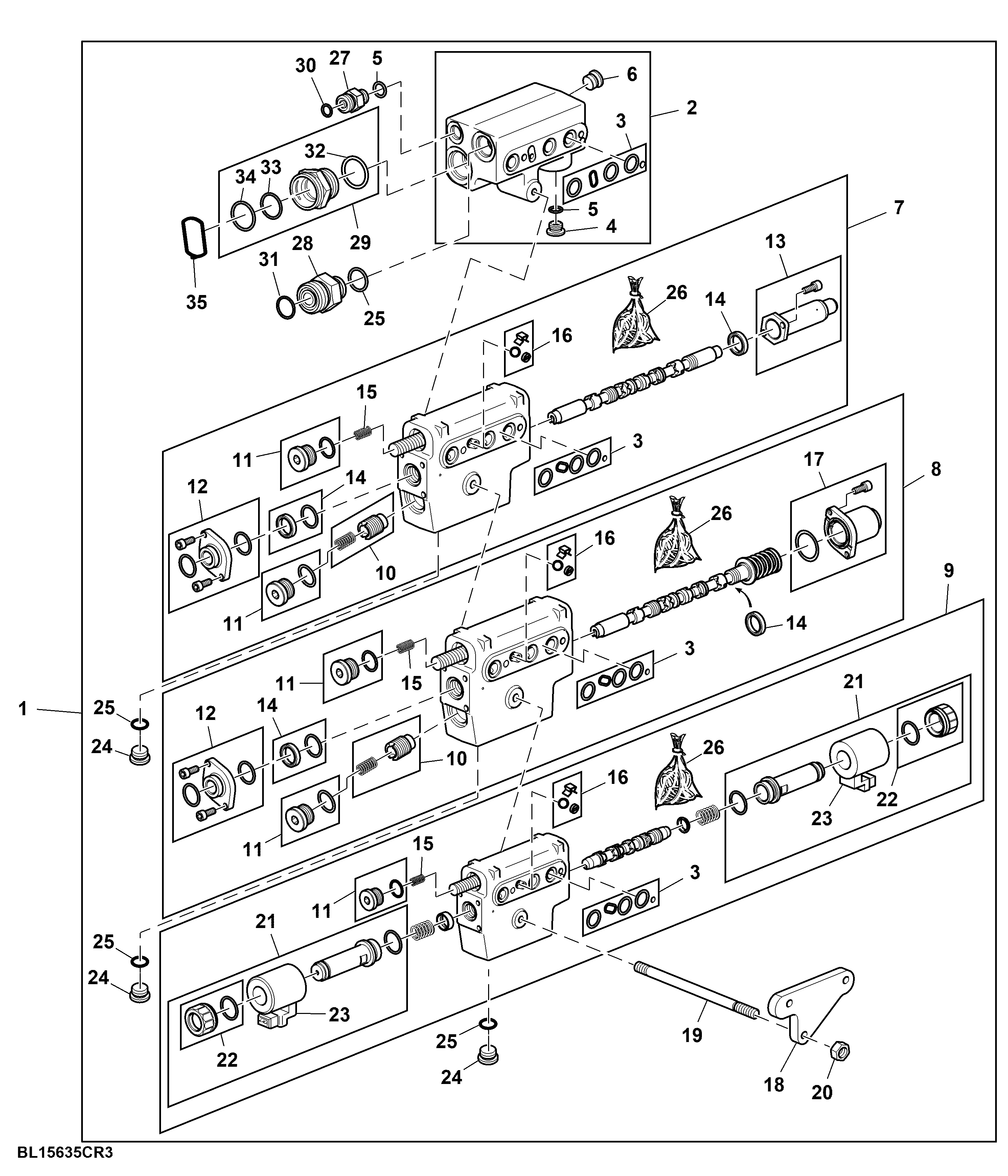

Mechanical Midstack SCV, W/ 3 Functions, Attachment
